HDBaseT transmitter
| Main Specifications | |
|---|---|

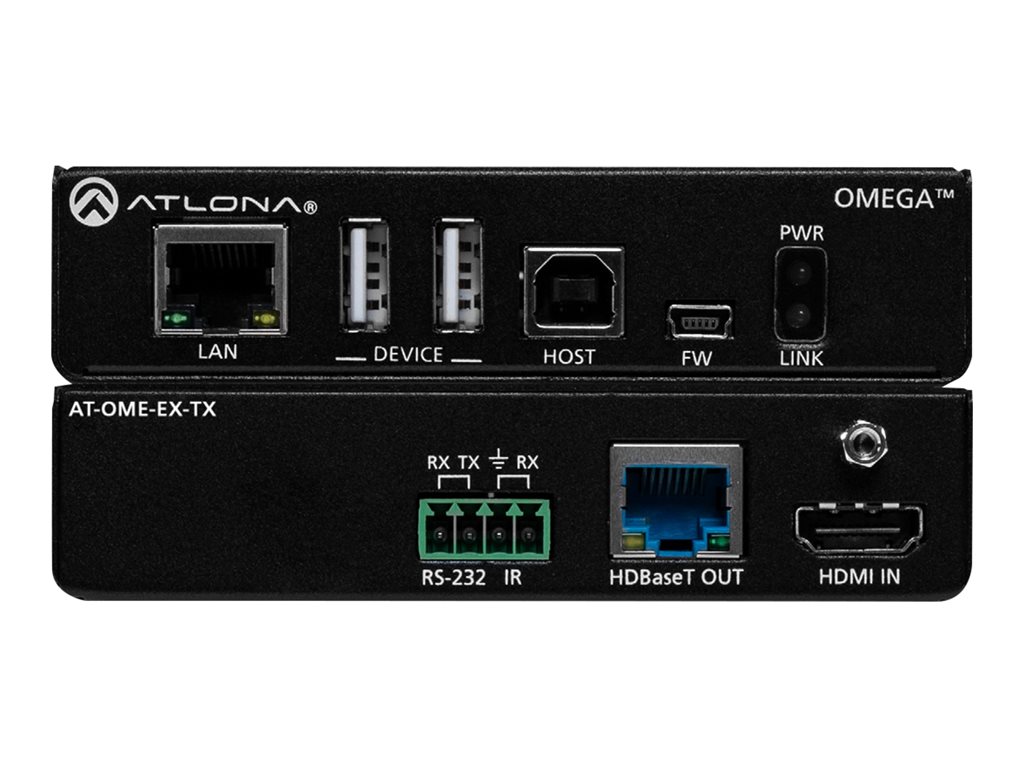

| Product Description | Atlona Omega OME-EX-TX HDBaseT transmitter |
| Type | HDBaseT transmitter |
| Dimensions (WxDxH) | 4.3 in - 3.5 in - 1 in |
| Weight | 14.32 oz |
| General | |
| Type | HDBaseT transmitter |
| Width | 4.3 in |
| Depth | 3.5 in |
| Height | 1 in |
| Weight | 14.32 oz |
| Power | |
| Power Consumption | 13.68 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Terminals | |
| Terminals | (1) x HDMI input - 19 pin HDMI Type A ¦ HDBaseT output - RJ-45 ¦ (1) x serial - terminal block ¦ (1) x network - RJ-45 ¦ (2) x USB - 4 pin USB type A ¦ (1) x USB - 4 pin USB type B |
| Studio & Production Equipment | |
| Features | 4K resolution support, Power Over Ethernet support, HDCP 2.2 compliant |
