Audio signal processor
| Main Specifications | |
|---|---|

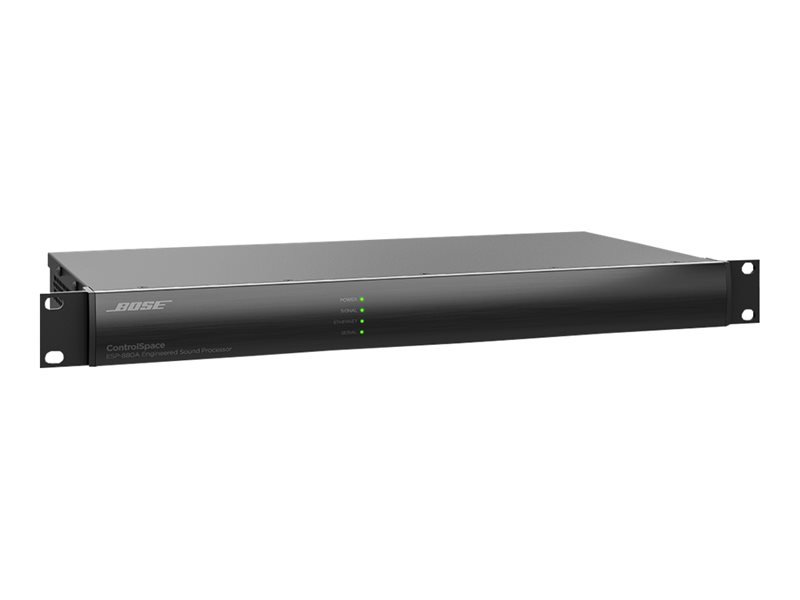

| Product Description | Bose ControlSpace ESP-880A audio signal processor |
| Type | Audio signal processor |
| Dimensions (WxDxH) | 19 in - 8.5 in - 1.7 in |
| Weight | 5.73 lbs |
| General | |
| Type | Audio signal processor |
| Width | 19 in |
| Depth | 8.5 in |
| Height | 1.7 in |
| Weight | 5.73 lbs |
| Power | |
| Voltage Required | AC 120 V AC 120 V |
| Frequency | 50/60 Hz |
| Power Consumption | 37 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Terminals | |
| Terminals | (8) x balanced audio input - terminal block ¦ (8) x balanced audio output - terminal block ¦ (1) x control input - 6-pin terminal block ¦ (1) x control output - 6-pin terminal block ¦ (1) x network - RJ-45 ¦ (1) x phoenix contact - 3-pin terminal block ¦ (1) x AmpLink output - RJ-45 ¦ (1) x serial - 9 pin D-Sub (DB-9) - RS-232 |
