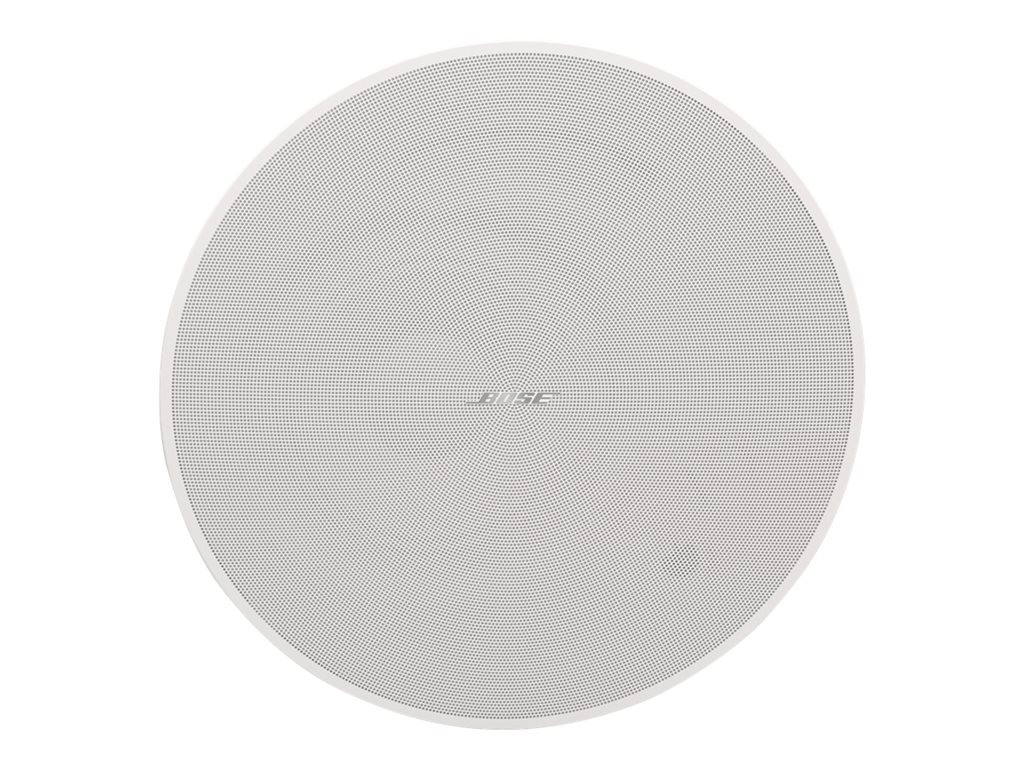

Speaker - 125 Watt - 2-way - arctic white, RAL 9003
| Main Specifications | |
|---|---|
| Product Description | Bose DesignMax DM8C - speaker |
| Product Type | Speaker |
| Speaker Type | 2-way - passive |
| Continuous Power | 125 Watt |
| Peak Power | 500 Watt |
| Frequency Response | 50 - 20000 Hz |
| Nominal Impedance | 8 Ohm |
| Integrated Transformer | 70V/100V or 8 Ohm operation |
| Speaker Details | Speaker - 125 Watt - 50 - 20000 Hz - 8 Ohm - 2-way - passive |
| Color | Arctic white, RAL 9003 |
| Dimensions (WxDxH) | 16.1 in x 16.1 in x 10 in |
| Weight | 21.1 lbs |
| General | |
| Product Type | Speaker |
| Enclosure Color | Arctic white, RAL 9003 |
| Enclosure Material | Plastic |
| Design Features | Paintable grille |
| Miscellaneous | |
| Included Accessories | Template, tile bridges |
| Dimensions & Weight | |
| Width | 16.1 in |
| Depth | 16.1 in |
| Height | 10 in |
| Weight | 21.1 lbs |
| Speaker System | |
| Speaker Type | 2-way - passive |
| Continuous Power | 125 Watt |
| Peak Power | 500 Watt |
| Frequency Response | 50 - 20000 Hz |
| Frequency Response (-3dB) | 65 - 20000 Hz |
| Nominal Impedance | 8 Ohm |
| Max Output Level (Max SPL) | 117 dB |
| Sensitivity | 96 dB |
| Integrated Transformer | 70V/100V or 8 Ohm operation |
| Coverage | 115° conical |
| Recommended Placing | Ceiling mountable |
| Speaker System Details | |
| Speaker Details | Speaker - 125 Watt - 50 - 20000 Hz CFR - 8 Ohm - 2-way - passive |
| Driver Details | Speaker: woofer driver - 8" ¦ Speaker: tweeter driver - 1" |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 23.3 lbs |
| Cutout & Mounting Dimensions | |
| Diameter | 13.7 in |
