Audio signal processor
| Main Specifications | |
|---|---|

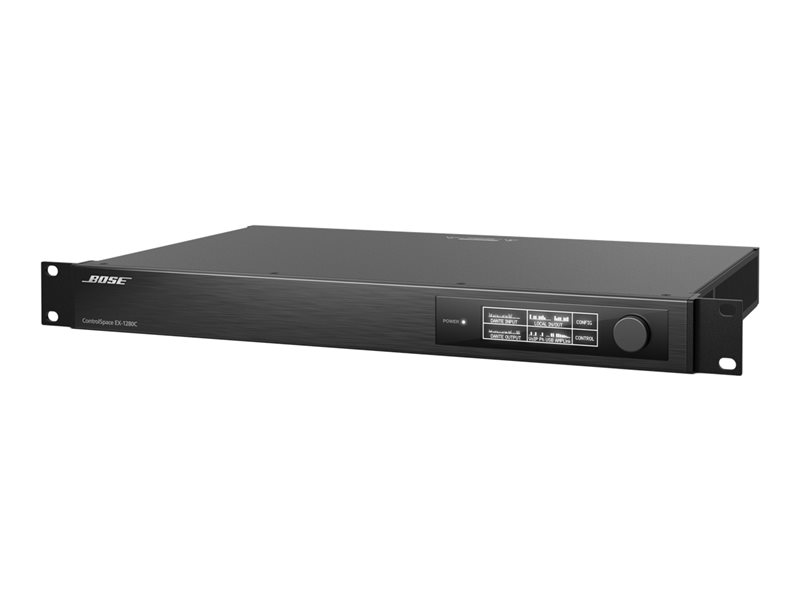

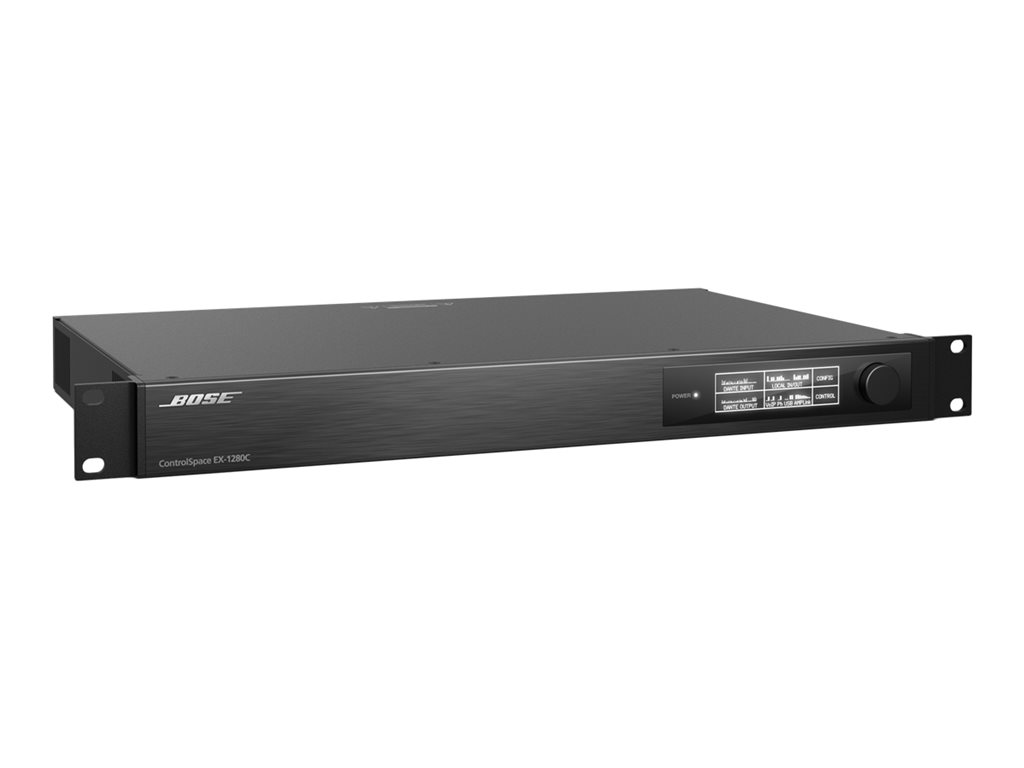

| Product Description | Bose ControlSpace EX-1280C audio signal processor |
| Type | Audio signal processor |
| Dimensions (WxDxH) | 19 in - 11.1 in - 1.7 in |
| Weight | 7.94 lbs |
| General | |
| Type | Audio signal processor |
| Width | 19 in |
| Depth | 11.1 in |
| Height | 1.7 in |
| Weight | 7.94 lbs |
| Power | |
| Voltage Required | AC 120/230 V |
| Frequency | 50/60 Hz |
| Power Consumption | 35 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Terminals | |

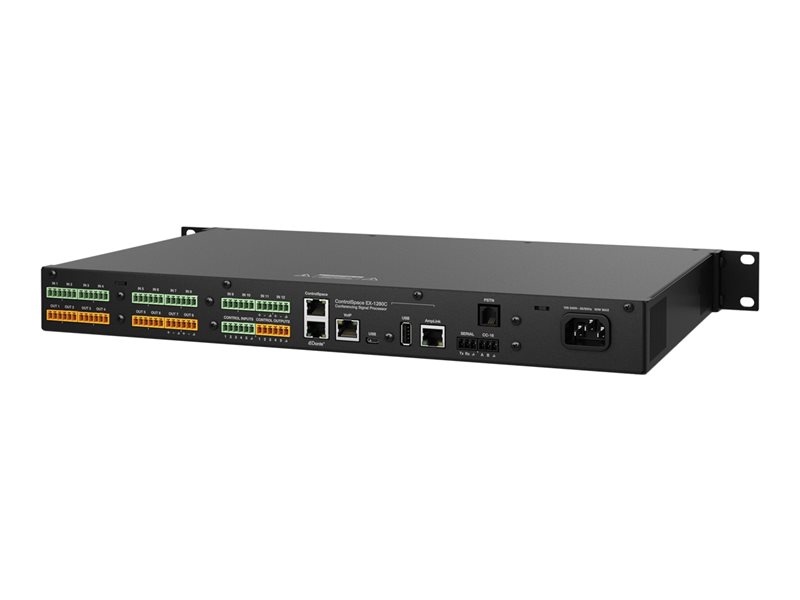

| Terminals | (12) x balanced audio input - 3-pin terminal block ¦ (8) x balanced audio output - 3-pin terminal block ¦ (1) x control input - 6-pin terminal block ¦ (1) x control output - 6-pin terminal block ¦ (2) x Dante - RJ-45 ¦ (1) x network - RJ-45 ¦ (1) x USB - Micro-USB Type B ¦ (1) x USB - 4 pin USB type A ¦ (1) x AmpLink output - RJ-45 ¦ (1) x serial - terminal block - RS-232 ¦ (1) x remote - 3-pin terminal block ¦ (1) x telephone line - RJ-11 |
| Studio & Production Equipment | |
| Features | Built-in OLED display |
