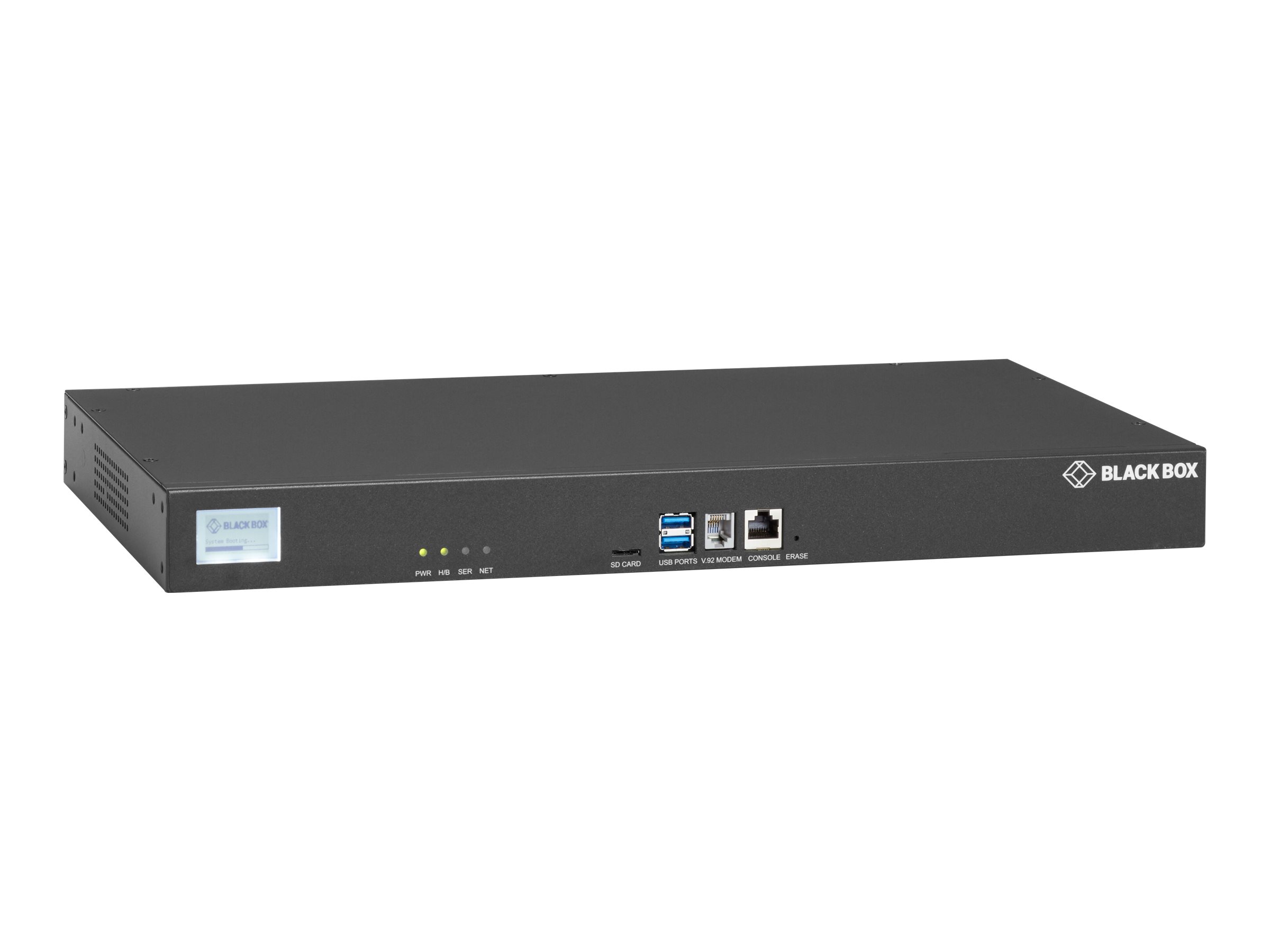

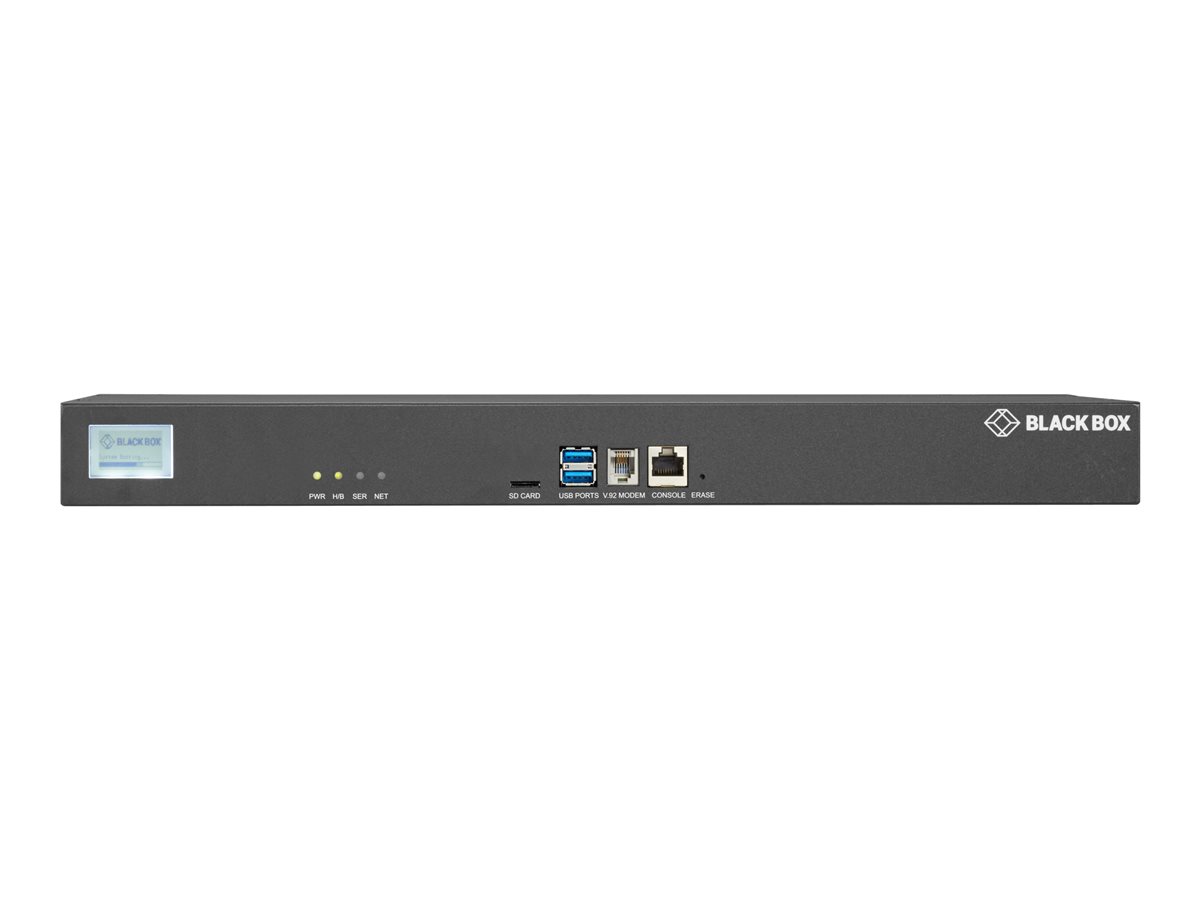

Console server - 16 ports - RS-232 - 1U - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Black Box LES1700-R2 Series LES1716A-R2 - console server |
| Device Type | Console server |
| Form Factor | Rack-mountable - 1U |
| Processor | 1 x ARM 1 GHz |
| RAM | 256 MB |
| Flash Memory | 64 MB |
| Hard Drive | 16 GB |
| Ports Qty | 16 |
| Data Link Protocol | RS-232 |
| Mobile Broadband Access | Yes |
| Cellular Protocol | GSM, CDMA, UMTS, LTE |
| Protocols & Specifications | ITU V.92 |
| Included Accessories | Rack mount kit |
| Power | AC 120/230 V |
| Dimensions (WxDxH) | 17.3 in x 10 in x 1.8 in |
| Weight | 9.92 lbs |
| General | |
| Device Type | Console server |
| Height (Rack Units) | 1U |
| Width | 17.3 in |
| Depth | 10 in |
| Height | 1.8 in |
| Weight | 9.92 lbs |
| Expansion / Connectivity | |
| Interfaces | 16 x RS-232 - RJ-45 ¦ 2 x 1000Base-T - RJ-45/SFP (mini-GBIC) ¦ 1 x console - RJ-45 ¦ 2 x USB 3.0 - Type A ¦ 1 x modem - RJ-11 |
| Miscellaneous | |
| Included Accessories | Rack mount kit |
| Cables Included | 2 x patch cable - 6 ft ¦ 1 x serial adapter ¦ 1 x crossover adapter |
| MTBF | 150,000 hours |
| Compliant Standards | TUV, C-Tick, IEC 61000-4-11, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, UL 1950, CCC, R&TTE, RoHS, FIPS 140-2, A-Tick, FCC Part 15 B Class A, PTCRB, GCF, IEC 61000-4-2:2008, AS/NZS CISPR22:2004 Class A, EN 61000-3-3:2013, ICES-003 issue 4, EN 55024:2010, EN 61000-3-2:2014, EN 55022 Class A, NAPRD.03, CDG TIA/EIA-690, CDG TIA/EIA-98-E, EN 301 511 |
| Networking | |
| Form Factor | Rack-mountable |
| Ports Qty | 16 |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232 |
| Network / Transport Protocol | NTP |
| Remote Management Protocol | SNMP, SSH |
| Features | Access Point operational mode, Ad-Hoc Mode, LLDP support, Zero-touch provisioning (ZTP) |
| Encryption Algorithm | AES, PEAP, WPA, WPA-PSK, WPA2-PSK, WEP |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+, LDAP, MS-CHAP v.2, Active Directory |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V |
| Power Consumption Operational | 30 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 90% |
| Communications | |
| Mobile Broadband Access | Yes |
| Cellular Protocol | GSM, CDMA, UMTS, LTE |
| Protocols & Specifications | ITU V.92 |
| Processor / Memory / Storage | |
| Processors Installed | 1 x ARM 1 GHz |
| Max Supported Qty | 1 |
| RAM | 256 MB DDR2 SDRAM |
| Flash Memory | 64 MB |
| Hard Drive | 16 GB |
