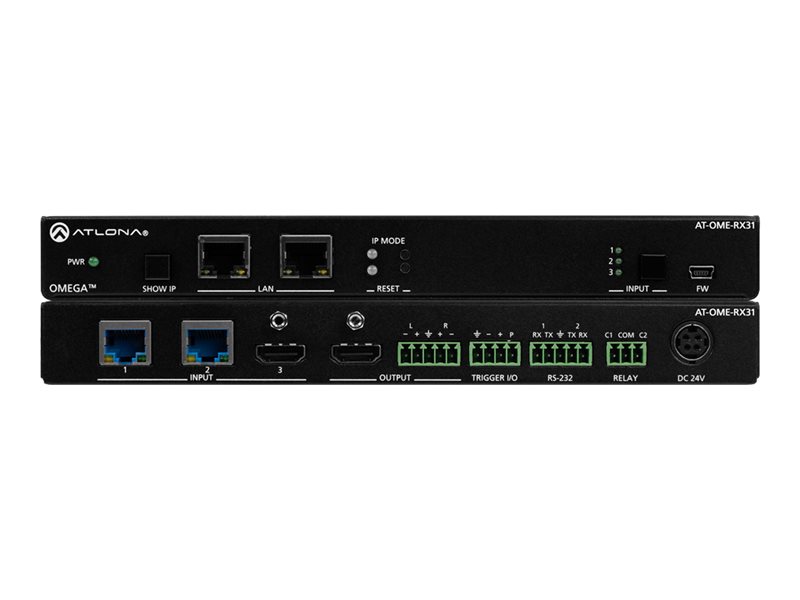

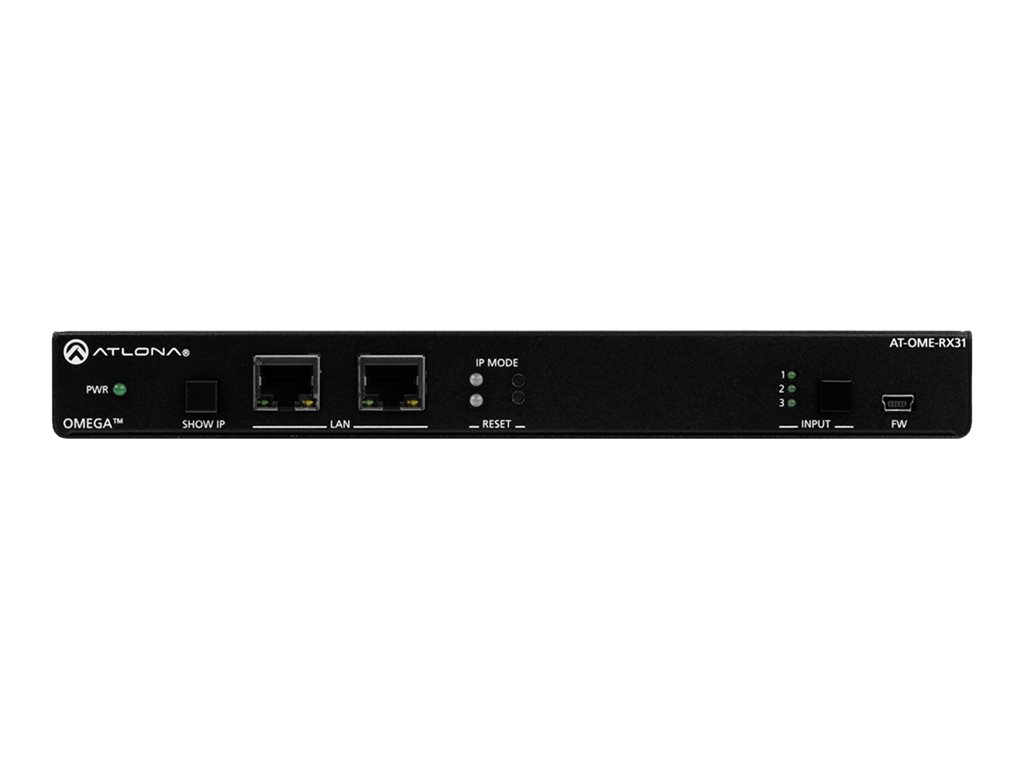

3x1 switcher / scaler / audio disembedder / HDBaseT to HDMI converter
| Main Specifications | |
|---|---|
| Product Description | Atlona Omega AT-OME-RX31 3x1 switcher / scaler / audio disembedder / HDBaseT to HDMI converter |
| Type | 3x1 switcher / scaler / audio disembedder / HDBaseT to HDMI converter |
| Dimensions (WxDxH) | 8.6 in - 6 in - 1 in |
| Weight | 34.39 oz |
| Manufacturer Warranty | 10 years |
| General | |
| Type | 3x1 switcher / scaler / audio disembedder / HDBaseT to HDMI converter |
| Width | 8.6 in |
| Depth | 6 in |
| Height | 1 in |
| Weight | 34.39 oz |
| Manufacturer Warranty | |
| Warranty | 10 years |
| Power | |
| Voltage Required | AC 120/230 V |
| Frequency | 50/60 Hz |
| Low Voltage Power | DC 24 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Kit Content | |
| Kit Content | (1) x power adapter |
| Terminals | |
| Terminals | (1) x HDMI input - 19 pin HDMI Type A ¦ (2) x HDBaseT input - RJ-45 ¦ (1) x balanced/unbalanced audio output - 5-pin terminal block - stereo ¦ (1) x HDMI output - 19 pin HDMI Type A ¦ (2) x network - RJ-45 ¦ (2) x serial - terminal block - RS-232 ¦ Relay - terminal block |
| Studio & Production Equipment | |
| Features | EDID support, HDCP 2.2 compliant, 4K60 4:4:4 signal support |
