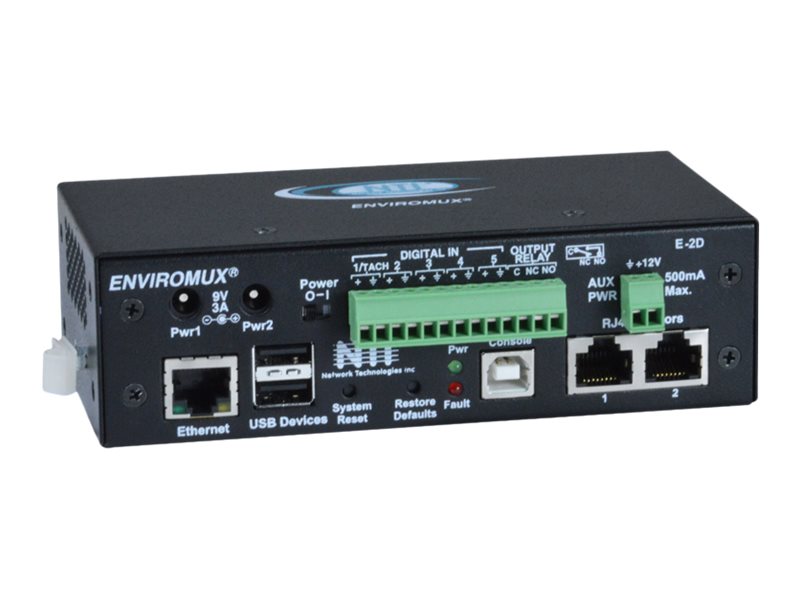

Environment monitoring device - 100Mb LAN - 1U
| Main Specifications | |
|---|---|
| Product Description | NTI ENVIROMUX Small Enterprise Environment Monitoring System - environment monitoring device |
| Device Type | Environment monitoring device |
| Form Factor | External - 1U |
| Data Link Protocol | Ethernet, Fast Ethernet |
| OS Required | Linux, Apple MacOS 9, Microsoft Windows 2000 Server, FreeBSD, Microsoft Windows Server 2003, Apple MacOS X 10.0, Microsoft Windows Server 2008, Oracle Solaris, Microsoft Windows Server 2012, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/10, Microsoft Windows Server 2019 |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 5.8 in x 3 in x 1.7 in |
| Weight | 15.87 oz |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Environment monitoring device |
| Height (Rack Units) | 1U |
| Width | 5.8 in |
| Depth | 3 in |
| Height | 1.7 in |
| Weight | 15.87 oz |
| Expansion / Connectivity | |
| Interfaces | 2 x monitoring - RJ-45 ¦ 2 x USB - Type A ¦ 5 x monitoring - terminal block (screw) ¦ 1 x relay output - terminal block (screw) ¦ 1 x management (USB) - Type B ¦ 1 x 100Base-TX - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| MTBF | 229,580 hour(s) |
| Compliant Standards | RoHS, EN 50121-3-2, EN 51055 |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Network / Transport Protocol | TCP/IP, SMTP, DHCP, IPv6 |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2 |
| Status Indicators | Power, fault |
| Features | LDAP support, Syslog support, IP address filtering, half duplex mode, full duplex mode, SNTP support, event log, SMS alert, reset button, 3G USB Dongle Support, SNMP trap, e-mail notification |
| Encryption Algorithm | Triple DES, Blowfish, RSA, ARCFOUR, SSL 3.0, 256-bit AES, TLS 1.2 |
| Authentication Method | RADIUS, X.509 certificates, Secure Shell v.2 (SSH2), XOAUTH2 authentication |
| Power | |
| Power Device | External power adapter |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 10 Watt |
| Software / System Requirements | |
| OS Provided | Linux |
| OS Required | Linux, Apple MacOS 9, Microsoft Windows 2000 Server, FreeBSD, Microsoft Windows Server 2003, Apple MacOS X 10.0, Microsoft Windows Server 2008, Oracle Solaris, Microsoft Windows Server 2012, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/10, Microsoft Windows Server 2019 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 17 - 90% (non-condensing) |
