Video/audio/infrared/USB/serial/network extender - HDBaseT - up to 328 ft
| Main Specifications | |
|---|---|

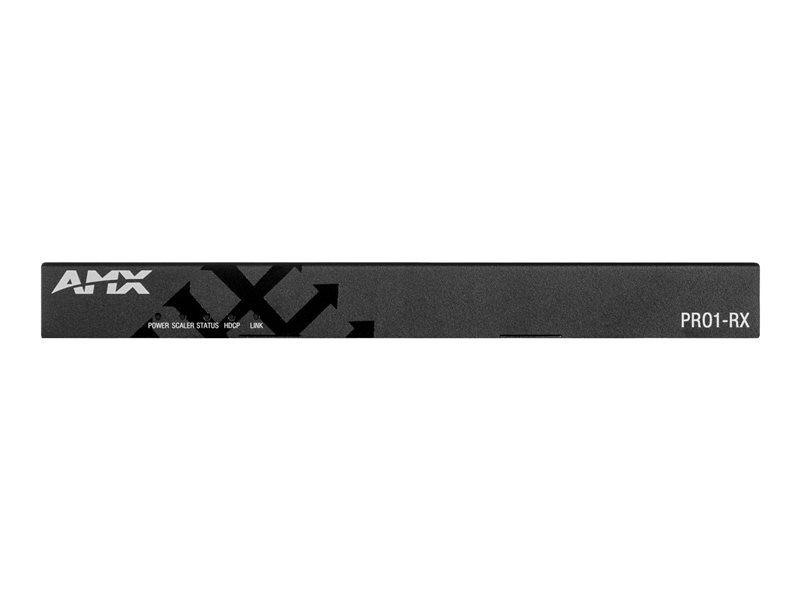

| Product Description | AMX Precis PR01-RX - video/audio/infrared/USB/serial/network extender - HDBaseT |
| Device Type | Video/audio/infrared/USB/serial/network extender |
| Form Factor | External |
| Localization | United Kingdom, United States, Europe |
| Data Transfer Rate | 10.2 Gbps |
| Data Link Protocol | HDBaseT |
| Max Transfer Distance | 328 ft |
| Power | AC 120/230 V |
| Dimensions (WxDxH) | 9.2 in x 5.6 in x 1 in |
| Weight | 2.2 lbs |
| General | |
| Device Type | Video/audio/infrared/USB/serial/network extender |
| Form Factor | External |
| Localization | United Kingdom, United States, Europe |
| Expansion / Connectivity | |
| Interfaces | 1 x HDBaseT (input) - RJ-45 female ¦ 1 x HDMI (output) - 19 pin HDMI Type A female ¦ 1 x SPDIF (output) - RCA ¦ 2 x Ethernet 10Base-T/100Base-TX - RJ-45 ¦ 1 x audio (output) - terminal block ¦ 1 x IR (input) - mini jack ¦ 1 x IrDA (output) - terminal block ¦ 1 x RS-232 (bi-directional) - terminal block |
| Miscellaneous | |
| Included Accessories | IR receiver, 4 x screws, 2 x 3-pin Phoenix connectors, 2-pin Phoenix connector, 2 mounting ears |
| Compliant Standards | CEC |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDBaseT |
| Data Transfer Rate | 10.2 Gbps |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Max Transfer Distance | 328 ft |
| Status Indicators | Power, link OK, status, link/activity, HDCP, scaler, speed |
| Features | HDCP compliant, Native NetLinx control, 4K resolution support, scaling function |
| Compliant Standards | HDCP 1.4, HDCP 2.2 |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 16.4 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 9.2 in |
| Depth | 5.6 in |
| Height | 1 in |
| Weight | 2.2 lbs |
