Matrix mixer / preamplifier
| Main Specifications | |
|---|---|

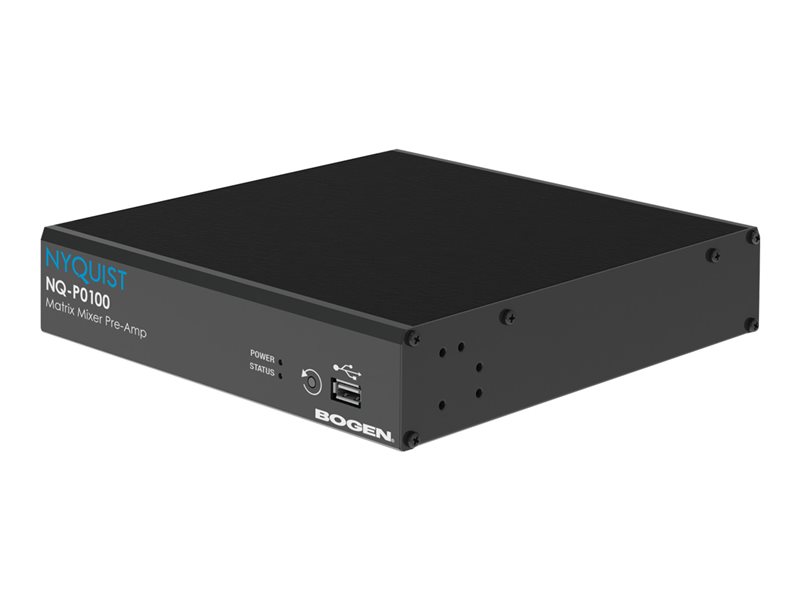

| Product Description | Bogen Nyquist NQ-P0100 matrix mixer / preamplifier |
| Type | Matrix mixer / preamplifier |
| Dimensions (WxDxH) | 8 in - 8.6 in - 1.7 in |
| Weight | 2.65 lbs |
| Manufacturer Warranty | 5 years |
| General | |
| Type | Matrix mixer / preamplifier |
| Width | 8 in |
| Depth | 8.6 in |
| Height | 1.7 in |
| Weight | 2.65 lbs |
| Manufacturer Warranty | |
| Warranty | 5 years |
| Power | |
| Voltage Required | AC 120/230 V |
| Frequency | 50/60 Hz |
| Environmental Parameters | |
| Min Operating Temperature | 5 °F |
| Max Operating Temperature | 104 °F |
| Terminals | |
| Terminals | (3) x balanced audio input - 3 pin XLR ¦ (4) x balanced audio input - 3 pin Phoenix type ¦ Balanced audio output - 3 pin Phoenix type ¦ Network - RJ-45 |
| Studio & Production Equipment | |
| Features | Graphic equalizer, web interface |
