Docking station - USB-C 3.2 - VGA, HDMI, DP - 1GbE
| Main Specifications | |
|---|---|

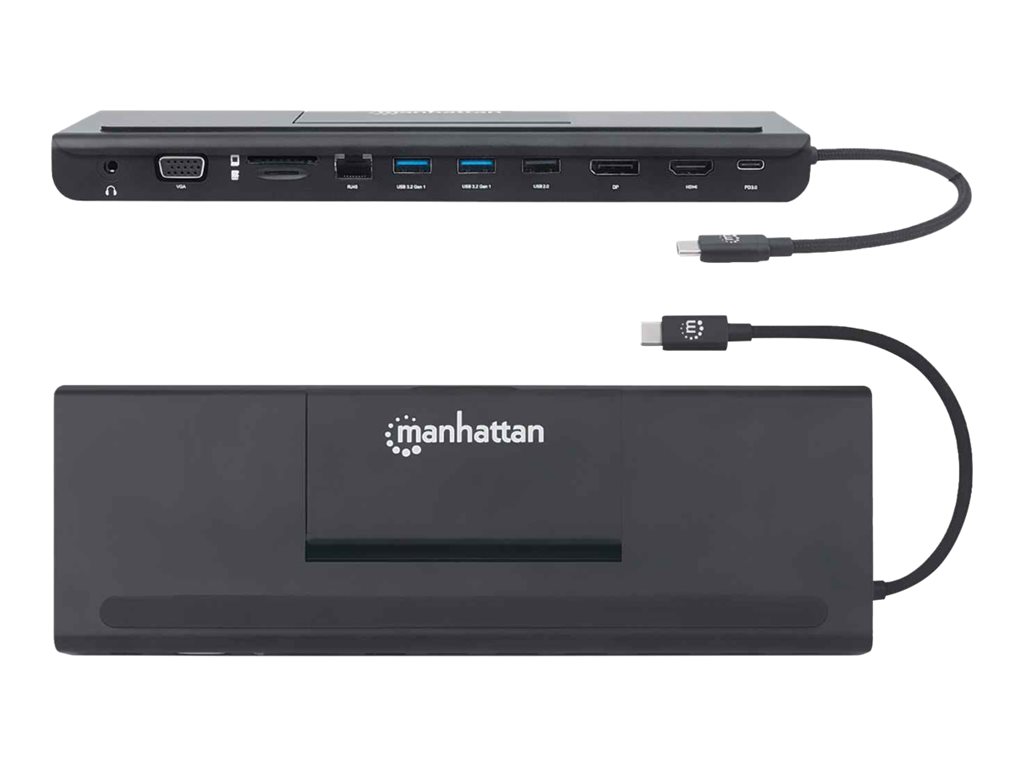

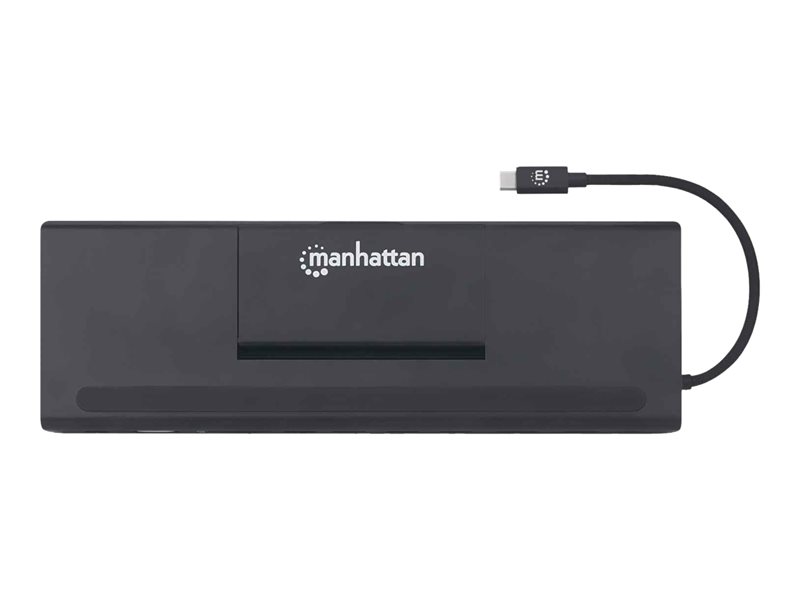

| Product Description | Manhattan USB-C Dock/Hub with Card Reader and MST, Ports (x9): Audio 3.5mm, DisplayPort, Ethernet, HDMI, USB-A (x3), USB-C and VGA, With Power Delivery (100W) to USB-C Port (Note add USB-C wall charger and USB-C cable needed),All Ports can be used at the same time - docking station - USB-C 3.2 - VGA, HDMI, DP - 1GbE |
| Product Type | Docking station |
| Docking Interface | USB-C 3.2 |
| Video Interfaces | VGA, HDMI, DP |
| Dimensions (WxDxH) | 10.2 in x 3.4 in x 1 in |
| Weight | 11.99 oz |
| Color | Gray |
| Networking | Gigabit Ethernet |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Docking station |
| Width | 10.2 in |
| Depth | 3.4 in |
| Height | 1 in |
| Weight | 11.99 oz |
| Enclosure Color | Gray |
| Expansion / Connectivity | |
| Interfaces | 1 x audio / video - HDMI - 19 pin HDMI Type A ¦ 2 x USB 3.2 Gen 1 - 9 pin USB Type A ¦ 1 x USB-C with Power Delivery (100 W) - 24 pin USB-C ¦ 1 x audio / video - DisplayPort ¦ 1 x video - VGA - 15 pin HD D-Sub (HD-15) ¦ 1 x USB 2.0 - 4 pin USB Type A ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x audio - mini-phone stereo 3.5 mm |
| Compatible Slots | 1 x microSD ¦ 1 x SD Memory Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 1 x USB-C cable - integrated - 7.9 in |
| Features | Aluminum enclosure, HDCP Compliant, MST (multi-stream transport), bus powered, 100W power delivery |
| Compliant Standards | Plug and Play, FCC, RoHS |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Video | |
| Max Resolution Details | 3840 x 2160 |
| System Requirements | |
| OS Required | Linux, Apple MacOS X 10.7.x or later, Microsoft Windows 7 / 8.1 / 10 |
