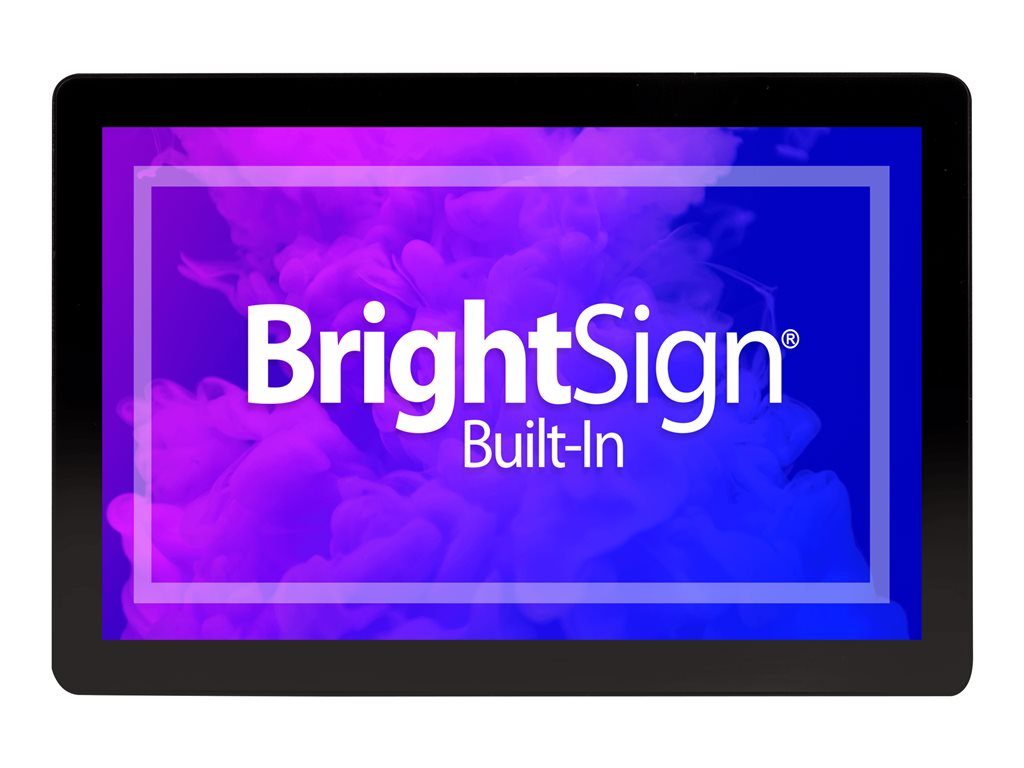

10.1" Diagonal Class LCD flat panel display - digital signage 1280 x 800
| Main Specifications | |
|---|---|
| Product Description | Bluefin BrightSign Built-In 10.1" Non-Touch PoE 10.1" LCD flat panel display - for digital signage |
| Product Type | LCD flat panel display |
| Diagonal Class | 10.1" |
| Commercial Use | Yes - digital signage |
| Resolution | 1280 x 800 |
| Connectivity | LAN |
| Image Aspect Ratio | 16:10 |
| TV Tuner | No tuner |
| Speaker System | 2 speakers |
| USB | Yes |
| Dimensions (WxDxH) | 9.8 in x 1.6 in x 6.6 in |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Product Type | LCD flat panel display |
| Diagonal Class | 10.1" |
| Commercial Use | Yes - digital signage |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Width | 9.8 in |
| Depth | 1.6 in |
| Height | 6.6 in |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 1 year |
| Power | |
| Power Device | Power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 80% |
| Display | |
| Resolution | 1280 x 800 |
| Image Aspect Ratio | 16:10 |
| Brightness | 250 cd/m² |
| Viewing Angle | 170° |
| Viewing Angle (Vertical) | 170° |
| Additional Features | PoE support, microSD card slot |
| Connections | |
| Connector Type | USB 2.0 ¦ Serial ¦ Remote control ¦ GPIO ¦ LAN ¦ Audio line-out |
| Audio System | |
| Speaker System | 2 speakers |
| Network & Internet Multimedia | |
| Connectivity | LAN |
| Stands & Mounts | |
| Flat Panel Mount Interface | 100 x 100 mm |
| VESA Compatibility | Yes |
| Media Player | |
| Supported Video Formats | MPEG-1, MPEG-2, MPEG-4, WMV, MOV, VOB, TS, M2TS, H.264, MPG, H.265 |
| Supported Audio Formats | MP3, WAV, AAC, MP2 |
| Supported Pictures Formats | BMP, PNG, JPEG |
| USB Port | Yes |
| USB Ports Qty | 1 |
