Network adapter - PCIe 2.0 x8 - 10 Gigabit SFP+ x 1 - green
| Main Specifications | |
|---|---|
| Product Description | SIIG Single Port 10G SFP+ Ethernet Network PCI Express - network adapter - PCIe 2.0 x8 - 10 Gigabit SFP+ x 1 |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 2.0 x8 |
| PCI Specification Revision | PCIe 2.0 |
| Ports | 10 Gigabit SFP+ x 1 |
| Dimensions (WxDxH) | 0.8 in x 6 in x 4.7 in |
| Weight | 4.16 oz |
| Data Link Protocol | 10GbE |
| Data Transfer Rate | 10 Gbps |
| Processor | 1 x Intel X520 |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ae |
| Color | Green |
| System Requirements | Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows 7 / 8 / 8.1 / 10 (32/64 bits), Microsoft Windows Server 2019 |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 2.0 x8 |
| PCI Specification Revision | PCIe 2.0 |
| Expansion / Connectivity | |
| Interfaces | 1 x 10Gb Ethernet - SFP+ |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |

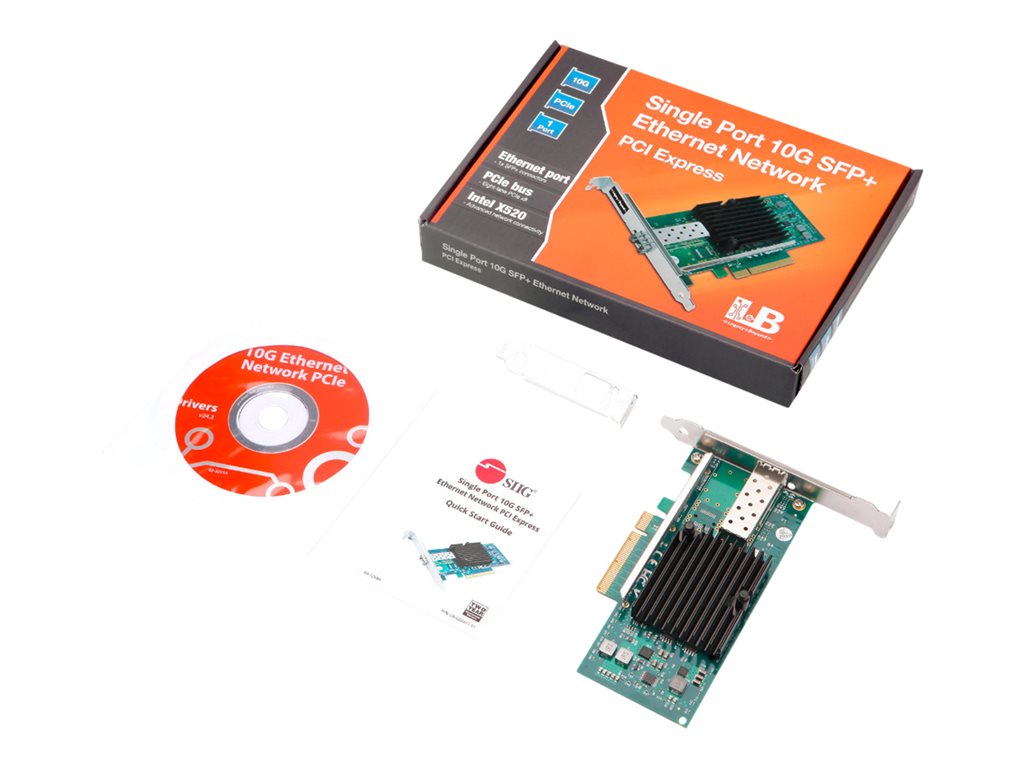

| Included Accessories | Low-profile bracket |
| Compliant Standards | FCC, RoHS |
| Color | Green |
| Networking | |
| Ports | 10 Gigabit SFP+ x 1 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Features | WOL, full duplex mode, Energy Efficient Ethernet |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ae |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| OS Required | Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows 7 / 8 / 8.1 / 10 (32/64 bits), Microsoft Windows Server 2019 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 85% (non-condensing) |
| Processor / Memory | |
| Processor | 1 x Intel X520 |
| Dimensions & Weight | |
| Width | 0.8 in |
| Depth | 6 in |
| Height | 4.7 in |
| Weight | 4.16 oz |
