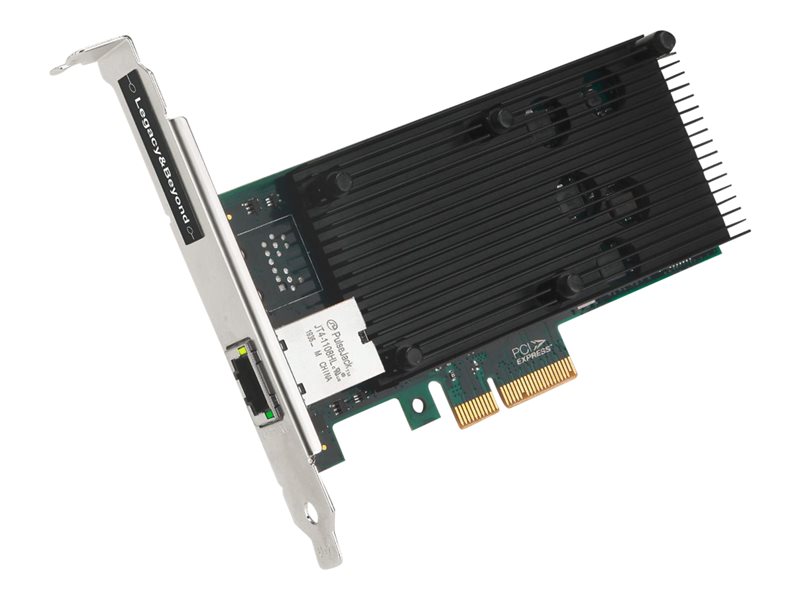

Network adapter - PCIe x4 - 100M/1G/2.5G/5G/10 Gigabit Ethernet x 1 - green
| Main Specifications | |
|---|---|
| Product Description | SIIG Single Port 10G Ethernet Network PCI Express - network adapter - PCIe x4 - 100M/1G/2.5G/5G/10 Gigabit Ethernet x 1 |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express x4 |
| Ports | 100M/1G/2.5G/5G/10 Gigabit Ethernet x 1 |
| Dimensions (WxDxH) | 0.8 in x 5.7 in x 4.7 in |
| Weight | 5.11 oz |
| Cabling Type | Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 10GBase-T, Ethernet 2.5GBase-T, Ethernet 5GBase-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE, 10GbE, 5GbE, 2.5GbE |
| Processor | 1 x Intel X550-T2 |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.3an, IEEE 802.3az |
| Color | Green |
| System Requirements | Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows 7 / 8 / 8.1 / 10 (32/64 bits), Microsoft Windows Server 2019 |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express x4 |
| Expansion / Connectivity | |
| Interfaces | 1 x 10GBase-T - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | Low-profile bracket |
| Compliant Standards | FCC, RoHS |
| Color | Green |
| Networking | |
| Ports | 100M/1G/2.5G/5G/10 Gigabit Ethernet x 1 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 10GBase-T, Ethernet 2.5GBase-T, Ethernet 5GBase-T |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Features | PoE, VLAN support, WOL, full duplex mode, EEE |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.3an, IEEE 802.3az |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| OS Required | Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows 7 / 8 / 8.1 / 10 (32/64 bits), Microsoft Windows Server 2019 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 85% (non-condensing) |
| Processor / Memory | |
| Processor | 1 x Intel X550-T2 |
| Dimensions & Weight | |
| Width | 0.8 in |
| Depth | 5.7 in |
| Height | 4.7 in |
| Weight | 5.11 oz |
