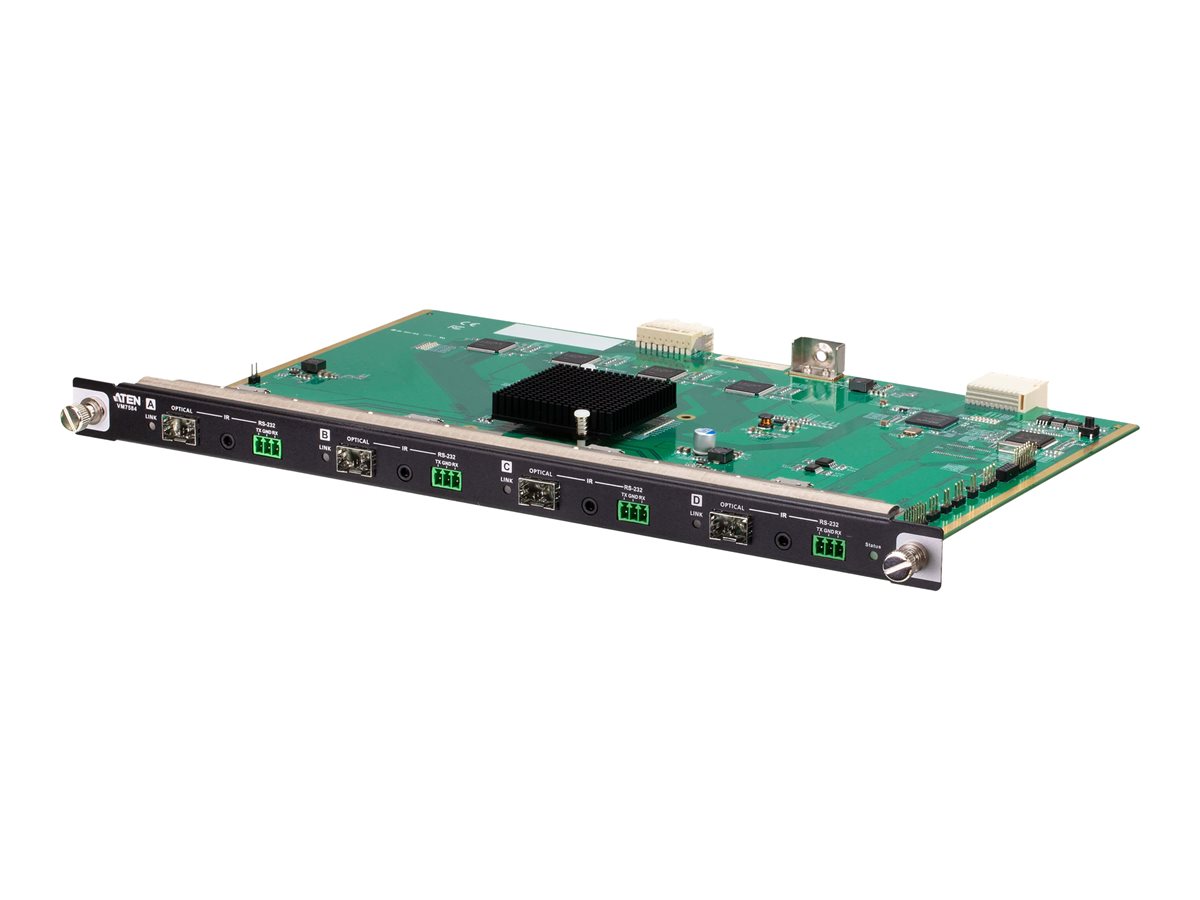

Expansion module - 10 Gigabit SFP+ x 4 + IrDA x 4 + RS-232 x 4 - 850 nm - for ATEN VM1600A 16x16, VM3200 32, VM3250 32
| Main Specifications | |
|---|---|
| Product Description | ATEN VM7584K1 - expansion module - 10 Gigabit SFP+ x 4 + IrDA x 4 + RS-232 x 4 |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Ports | 10 Gigabit SFP+ x 4 + IrDA x 4 + RS-232 x 4 |
| Dimensions (WxDxH) | 9.4 in x 13.9 in x 0.9 in |
| Weight | 20.1 oz |
| Data Link Protocol | HDMI |
| Data Transfer Rate | 10.3 Gbps |
| Compliant Standards | HDCP 2.2 |
| Manufacturer Warranty | 3-year warranty |
| Designed For | ATEN VM1600A 16x16 Modular Matrix Switch, VM3200 32 x32 Modular Matrix Switch, VM3250 32 x 32 Modular Matrix Switch Gen.2 |
| General | |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 4 x video/audio input - SFP+ ¦ 4 x IrDA input - mini-phone 3.5 mm ¦ 4 x RS-232 input - 3 pin captive screw |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | 4 x SFP+ multimode transceivers |
| Compliant Standards | RoHS, CEC, HDCP 2.2 |
| Networking | |
| Ports | 10 Gigabit SFP+ x 4 + IrDA x 4 + RS-232 x 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI |
| Data Transfer Rate | 10.3 Gbps |
| Optical Wave Length | 850 nm |
| Status Indicators | Status, link |
| Features | 4K resolution support, 3D support, HDCP compliant, bi-directional IR, EDID Expert |
| Compliant Standards | HDCP 2.2 |
| Power | |
| Power Consumption Operational | 10.54 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Dimensions & Weight | |
| Width | 9.4 in |
| Depth | 13.9 in |
| Height | 0.9 in |
| Weight | 20.1 oz |
| Compatibility Information | |
| Designed For | ATEN VM1600A 16x16 Modular Matrix Switch, VM3200 32 x32 Modular Matrix Switch, VM3250 32 x 32 Modular Matrix Switch Gen.2 |
