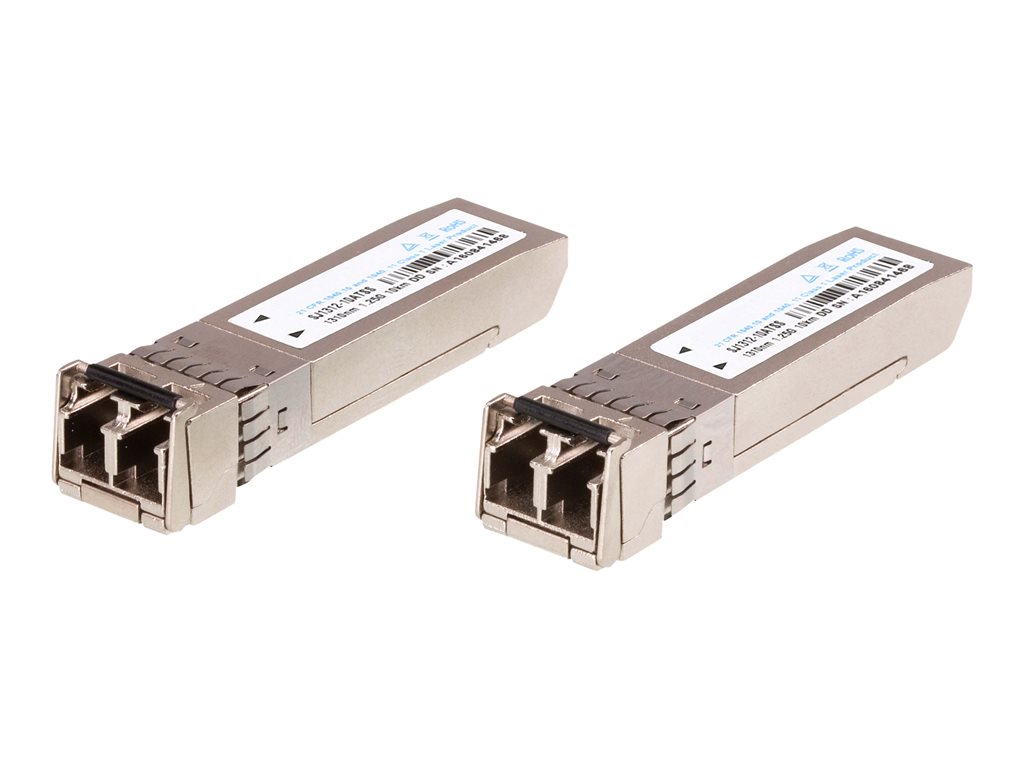

SFP+ transceiver module - LC multi-mode - up to 984 ft - 850 nm (pack of 2) - for P/N: CS1144DP4UN, KX9970R, KX9970T
| Main Specifications | |
|---|---|
| Product Description | ATEN 2A-141G - SFP+ transceiver module |
| Device Type | SFP+ transceiver module - LC multi-mode |
| Packaged Quantity | 2 (specifications are for single item) |
| Form Factor | Plug-in module |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 984 ft |
| Dimensions (WxDxH) | 0.6 in x 2.2 in x 0.5 in |
| Weight | 0.71 oz |
| Designed For | P/N: CS1144DP4UN, KX9970R, KX9970T |
| General | |
| Packaged Quantity | 2 (specifications are for single item) |
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x network - LC multi-mode x 2 |
| Miscellaneous | |
| Compliant Standards | RoHS, MSA SFF-8431, OM3 |
| Networking | |
| Connectivity Technology | Wired |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 984 ft |
| Features | Digital Diagnostics Monitoring (DDM) |
| Compliant Standards | IEEE 802.3ae |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 0.6 in |
| Depth | 2.2 in |
| Height | 0.5 in |
| Weight | 0.71 oz |
| Compatibility Information | |
| Designed For | P/N: CS1144DP4UN, KX9970R, KX9970T |
