Expansion module - Ethernet 100
| Main Specifications | |
|---|---|

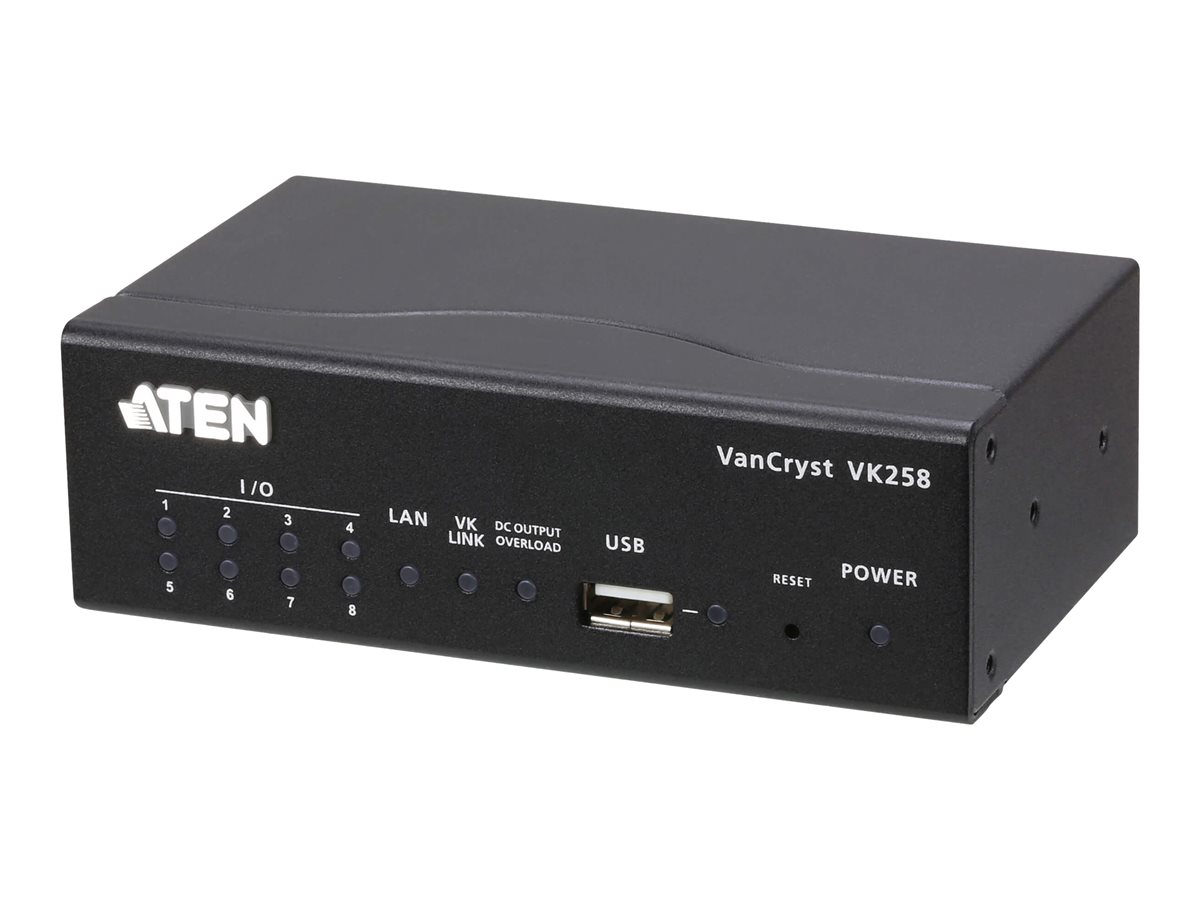

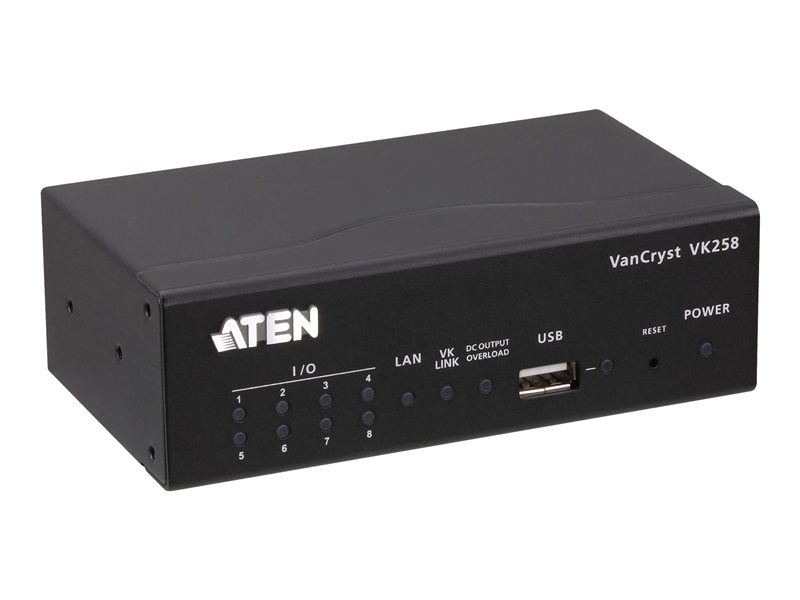

| Product Description | ATEN VanCryst VK258 8-Channel Digital I/O Expansion Box - expansion module - Ethernet 100 |
| Device Type | Expansion module |
| Form Factor | External |
| Interface (Bus) Type | Fast Ethernet |
| Dimensions (WxDxH) | 5.1 in x 3 in x 1.7 in |
| Weight | 16.22 oz |
| Network / Transport Protocol | ARP, ICMP/IP, TCP/IP, DHCP |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Expansion module |
| Form Factor | External |
| Interface (Bus) Type | Fast Ethernet |
| Expansion / Connectivity | |

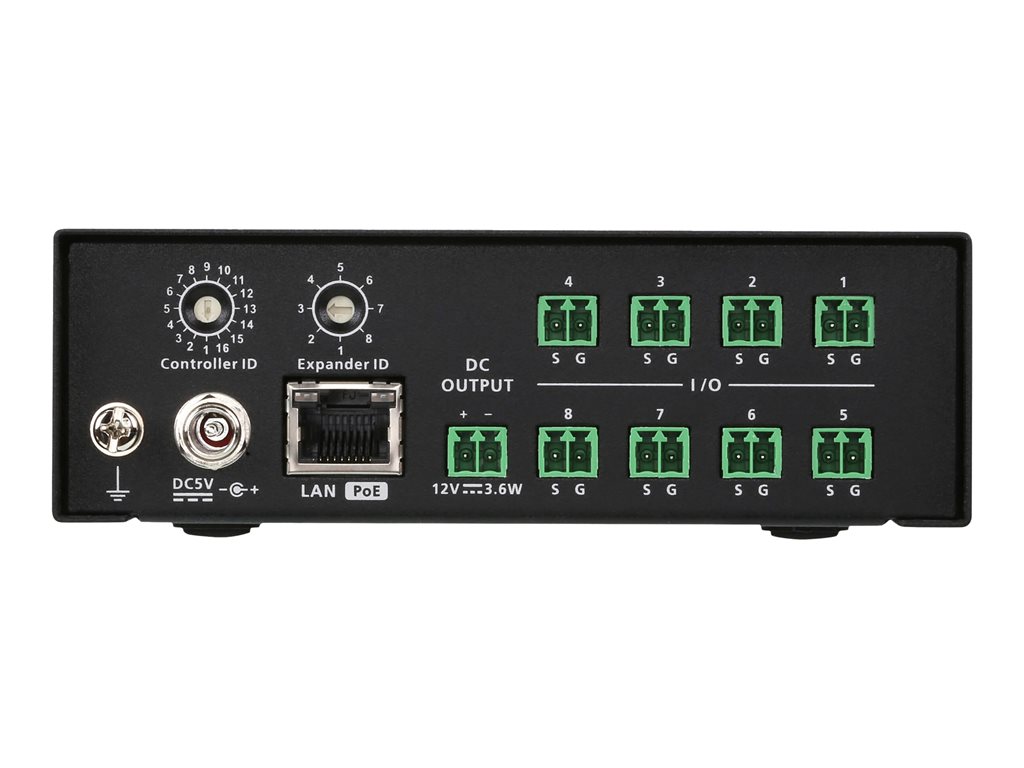

| Interfaces | 8 x digital input/output - terminal block ¦ 1 x USB - 4 pin USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Networking | |
| Connectivity Technology | Wired |
| Network / Transport Protocol | ARP, ICMP/IP, TCP/IP, DHCP |
| Remote Management Protocol | HTTPS, SSH |
| Features | Reset button, metal housing, PoE |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Dimensions & Weight | |
| Width | 5.1 in |
| Depth | 3 in |
| Height | 1.7 in |
| Weight | 16.22 oz |
