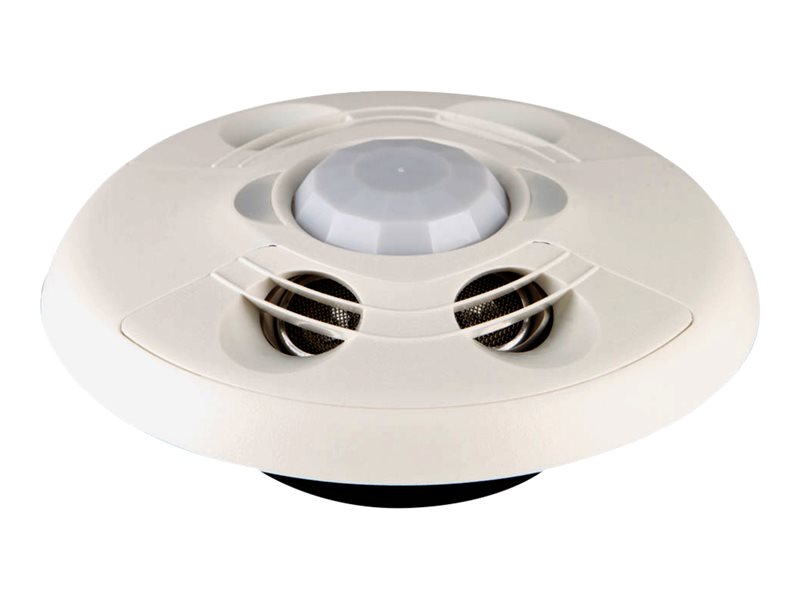

Occupancy sensor - wired - 10/100 Ethernet - white
| Main Specifications | |
|---|---|
| Product Description | Crestron CEN-ODT-C-POE - occupancy sensor - white |
| Product Type | Occupancy sensor |
| Sensor Type | Motion |
| Power Source | PoE |
| Connectivity | Wired - 10/100 Ethernet |
| Color | White |
| Dimensions (WxDxH) | 4.8 in x 4.8 in x 3.2 in |
| Designed For | P/N: 6510827 |
| General | |
| Product Type | Occupancy sensor |
| Sensor Type | Motion |
| Power Source | PoE |
| Connectivity Technology | Wired - Ethernet, Fast Ethernet |
| Interfaces Details | LAN/power |
| Features | Ceiling mountable, LED indicators, PoE |
| Miscellaneous | |
| Product Material | Plastic |
| Color | White |
| Power Consumption Operational | 4 Watt |
| Compliant Standards | C-Tick, IC, FCC, UL 60730-1, IEEE 802.3af |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 4.8 in |
| Depth | 4.8 in |
| Height | 3.2 in |
| Weight | 8.46 oz |
| Compatibility Information | |
| Designed For | P/N: 6510827 |
| Motion Sensor | |
| Detection Mode | Passive infrared (PIR), Ultrasonic 40 kHz |
| Detection Angle | 360 degrees |
| Detection Coverage | 186 m² |
