Rev 1 - remote control device - 4 ports - 1GbE
| Main Specifications | |
|---|---|
| Product Description | Sophos SD-RED 60 - Rev 1 - remote control device |
| Device Type | Remote control device |
| Form Factor | External |
| Localization | United States |
| Ports Qty | 4 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Throughput: 850 Mbps |
| Power Over Ethernet (PoE) Supported | PoE |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 8.9 in x 5.9 in x 1.7 in |
| Weight | 2.2 lbs |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Remote control device |
| Width | 8.9 in |
| Depth | 5.9 in |
| Height | 1.7 in |
| Weight | 2.2 lbs |
| Localization | United States |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |

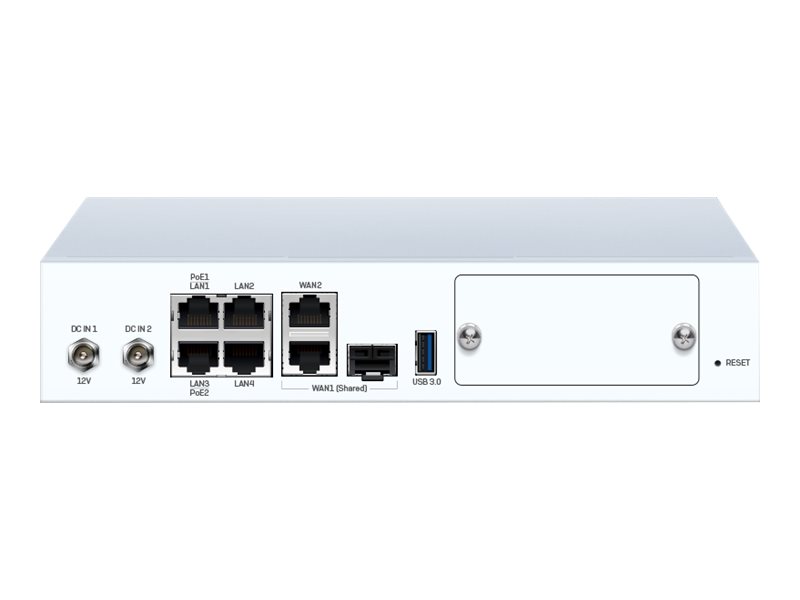

| Interfaces | 2 x 1000Base-T - RJ-45 ¦ 2 x 1000Base-T (PoE) - RJ-45 ¦ 2 x 1000Base-T - RJ-45 (WAN) ¦ 1 x 1000Base-X - SFP (mini-GBIC) (WAN) ¦ 2 x USB 3.0 - Type A ¦ 1 x management - micro-USB |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | FCC, IC, RCM, CB, VCCI, UL, CCC, KC, ANATEL |
| Networking | |
| Form Factor | External |
| Ports Qty | 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Throughput: 850 Mbps |
| Status Indicators | Internet, link/activity/speed, power 1, power 2, router, system, VPN, PoE |
| Features | Reset button, VPN support, fanless |
| Encryption Algorithm | 256-bit AES |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Device | External power adapter |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 25.33 Watt |
| Power Provided | 75 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 4.85 lbs |
