Router - WWAN 1GbE Verizon Wireless, AT&T
| Main Specifications | |
|---|---|

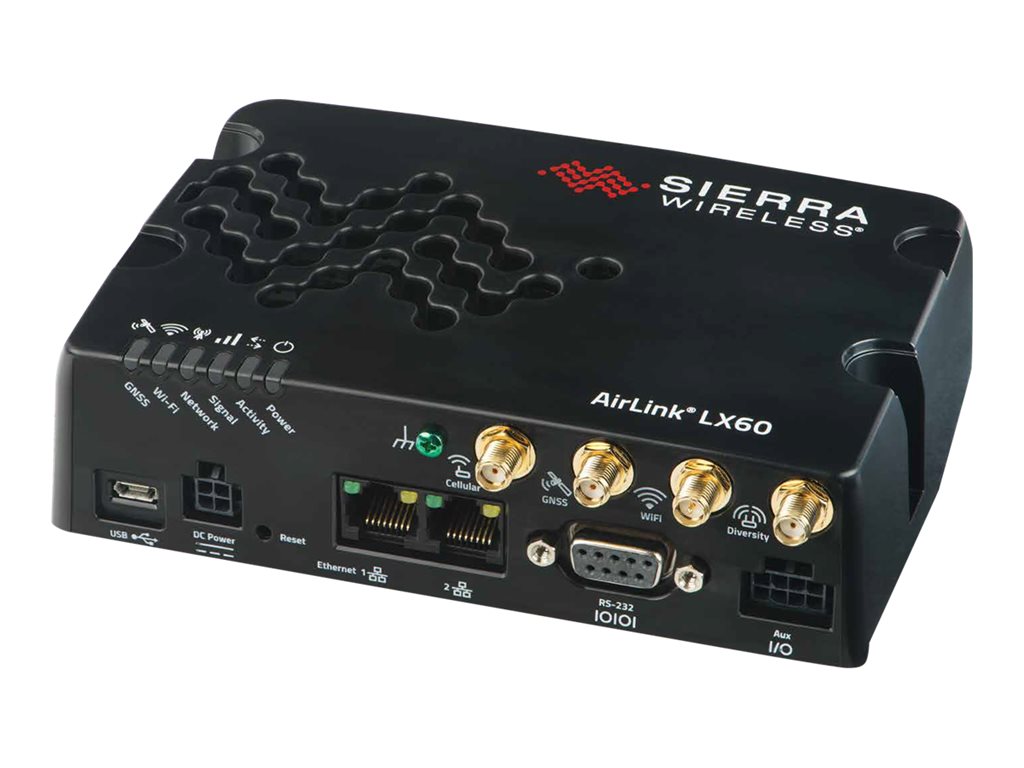

| Product Description | Sierra Wireless AirLink LX60 - router - WWAN - desktop |
| Device Type | Router - wireless cellular modem |
| Enclosure Type | Desktop |
| Service Provider | Verizon Wireless, AT&T |
| Cellular Protocol | LTE |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Capacity | Concurrent VPN tunnels: 5 |
| Network / Transport Protocol | DHCP, PPPoE, TCP/IP, UDP/IP, IPv6, DDNS, IPSec |
| Routing Protocol | VRRP, static IP routing, policy-based routing (PBR), GRE |
| Remote Management Protocol | Modbus, Telnet, SSH, SNMP, HTTP |
| Features | DHCP server, VLAN support, Modbus compatible, NAT support, port forwarding, VRRP support, policy based routing, LDAP support, DMZ support, IPv6 support, MAC address filtering, firmware upgradable, SMS alert, E-mail alert, SNMP trap, IPSec VPN, DPD, SMS remote control, port filtering, store and forward, Captive Portal |
| Power | DC 7 - 36 V |
| Dimensions (WxDxH) | 5.7 in x 4.2 in x 1.7 in |
| Weight | 8.82 oz |
| Localization | North America |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Router |
| Service Provider | Verizon Wireless, AT&T |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Capacity | Concurrent VPN tunnels: 5 |
| Network / Transport Protocol | DHCP, PPPoE, TCP/IP, UDP/IP, IPv6, DDNS, IPSec |
| Routing Protocol | VRRP, static IP routing, policy-based routing (PBR), GRE |
| Remote Management Protocol | Modbus, Telnet, SSH, SNMP, HTTP |
| Authentication Method | LDAP, RADIUS, TACACS+ |
| Features | DHCP server, VLAN support, Modbus compatible, NAT support, port forwarding, VRRP support, policy based routing, LDAP support, DMZ support, IPv6 support, MAC address filtering, firmware upgradable, SMS alert, E-mail alert, SNMP trap, IPSec VPN, DPD, SMS remote control, port filtering, store and forward, Captive Portal |
| Compliant Standards | FCC, IC, PTCRB, IP20, MIL-STD 810G, CB, UL 60950, ISO 7637-2, SAE J1455, REACH, RoHS2, WEEE, IECEE CB |
| Expansion / Connectivity | |
| Interfaces | LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Antenna: 2 x SMA ¦ USB 2.0: 1 x 5 pin Micro-USB Type B ¦ Serial: 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ Serial: 1 x RS-485 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Localization | North America |
| Power | |
| Voltage Required | DC 7 - 36 V |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 90% |
| Communications | |
| Type | Wireless cellular modem |
| Cellular Protocol | LTE |
| Max Transfer Rate | 150 Mbps |
| Dimensions & Weight | |
| Width | 5.7 in |
| Depth | 4.2 in |
| Height | 1.7 in |
| Weight | 8.82 oz |
