12G-SDI to HDMI video and audio converter
| Main Specifications | |
|---|---|

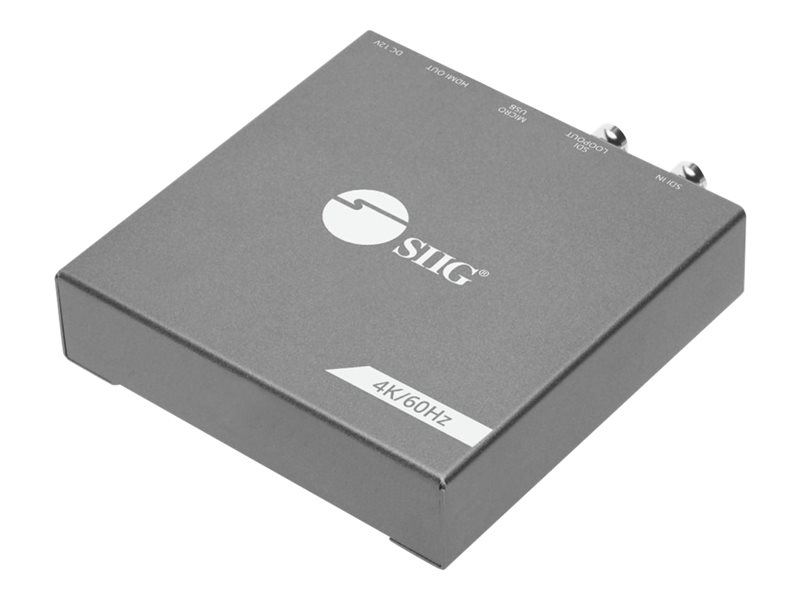

| Product Description | SIIG CE-SD0E11-S1 12G-SDI to HDMI video and audio converter |
| Type | 12G-SDI to HDMI video and audio converter |
| Dimensions (WxDxH) | 4.4 in - 4.8 in - 1 in |
| Weight | 8.15 oz |
| Manufacturer Warranty | 3 years |
| General | |
| Type | 12G-SDI to HDMI video and audio converter |
| Width | 4.4 in |
| Depth | 4.8 in |
| Height | 1 in |
| Weight | 8.15 oz |
| Manufacturer Warranty | |
| Warranty | 3 years |
| Power | |
| Voltage Required | AC 120/230 V |
| Frequency | 50/60 Hz |
| Low Voltage Power | DC 12 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Kit Content | |

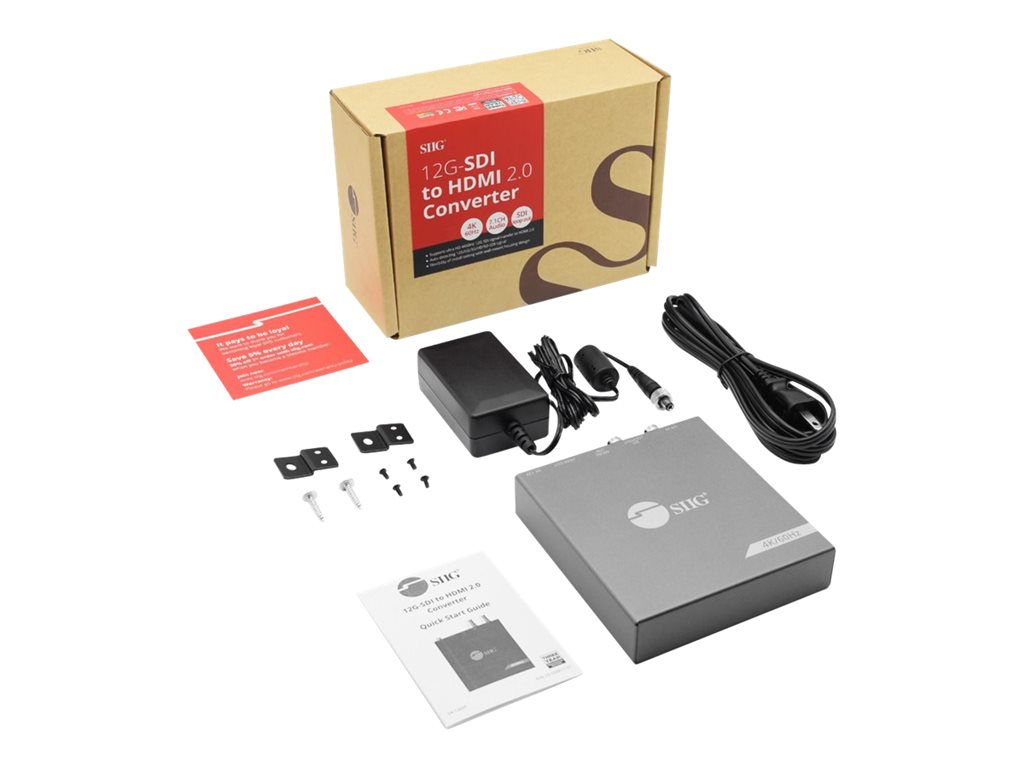

| Kit Content | (1) x power adapter ¦ Mounting hardware |
| Terminals | |
| Terminals | (1) x 3G-SDI input - BNC - with loop through ¦ (1) x HDMI output - 19 pin HDMI Type A ¦ (1) x USB - Micro-USB Type B |
| Studio & Production Equipment | |
| Features | 4K60 signal support |
