Barcode scanner - desktop - 2D imager - decoded - USB
| Main Specifications | |
|---|---|

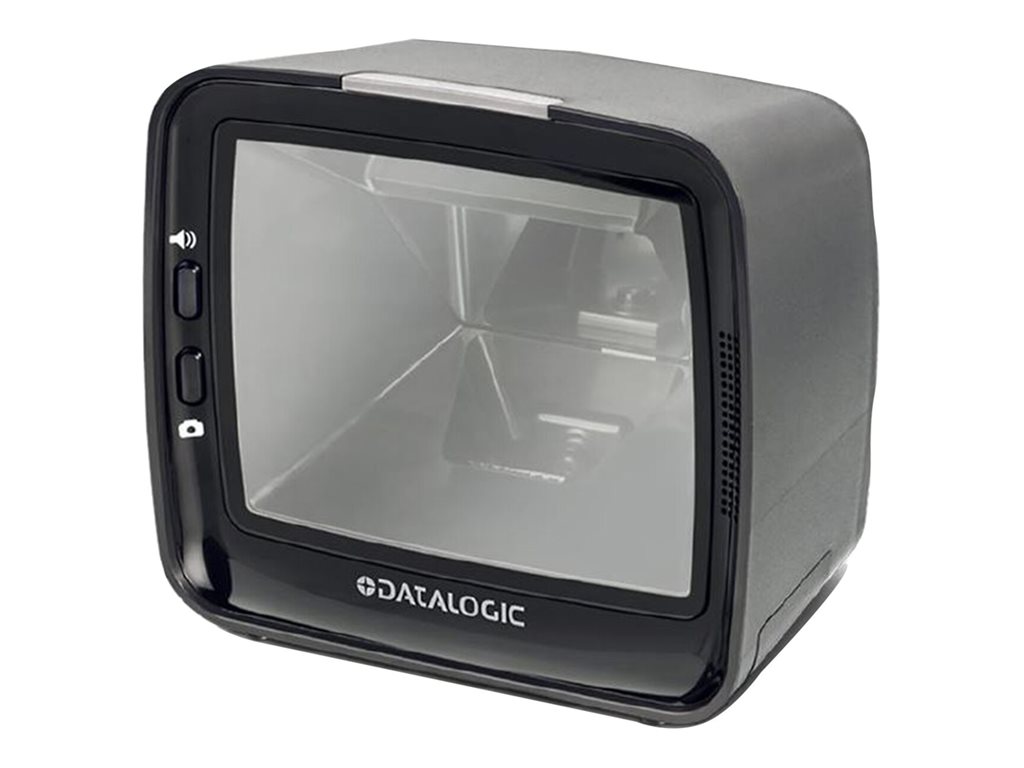

| Product Description | Datalogic Magellan 3450Vsi Presentation - barcode scanner |
| Type | Barcode scanner - desktop - stationary - USB - decoded |
| Color | Black |
| Minimum Bar Width | 5 mil |
| Scan Field Width | 0 in - 7.99 in |
| Scan Element Type | 2D imager - LED |
| Sensor Resolution | 1280 x 1024 |
| Connectivity Technology | Wired |
| Power | AC 120/230 V (50 Hz) |
| System Requirements | Microsoft Windows, Linux |
| Dimensions (WxDxH) | 6 in x 3.7 in x 5.4 in |
| Weight | 21.16 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Type | Barcode scanner - desktop - stationary |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x USB - Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Mounting kit |
| Cables Included | 1 x USB cable - external - 12 ft |
| Compliant Standards | IP52, IEC 62471 |
| Power | |
| Power Device | Power adapter |
| Voltage | AC 120/230 V (50 Hz) |
| Power Consumption Operational | 3.8 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| System Requirements | |
| OS Required | Microsoft Windows, Linux |
| Dimensions & Weight | |
| Width | 6 in |
| Depth | 3.7 in |
| Height | 5.4 in |
| Weight | 21.16 oz |
| Barcode | |
| Interface Type | USB |
| Minimum Bar Width | 5 mil |
| Scan Field Width | 0 in - 7.99 in |
| Scan Element Type | 2D imager - LED |
| Sensor Resolution | 1280 x 1024 |
| Scan Mode | Fixed projection |
| Skew (Degrees) | 75 |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 25% |
| Decode Capability | Aztec code, Data Matrix, MaxiCode, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MicroPDF417, PDF417 |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | LED indicator |
| Features | 25 kV ESD protection (air discharge) |
