Receipt printer - direct thermal - - 203 dpi - up to 472.4 inch/min - USB, RS232, LAN
| Main Specifications | |
|---|---|

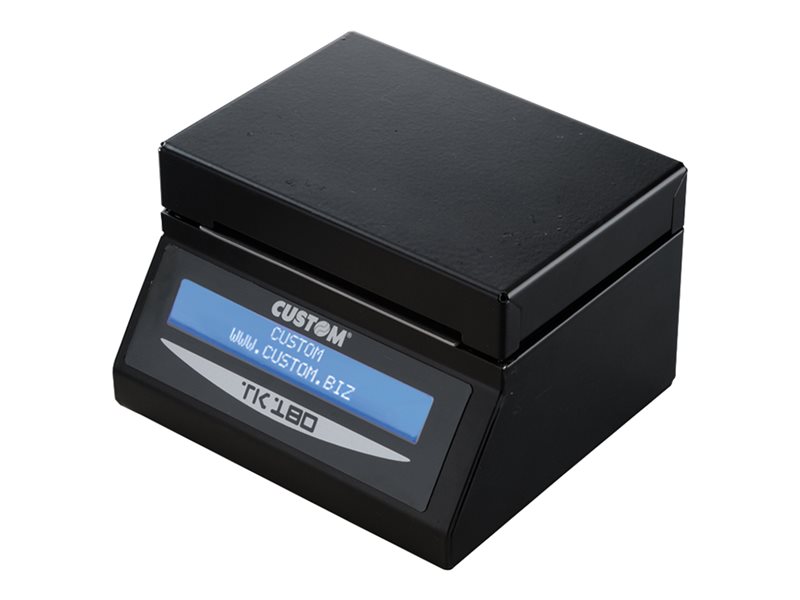

| Product Description | Custom TK180 - receipt printer - B/W - direct thermal |
| Printer Type | Receipt printer - direct thermal - B/W |
| Weight | 4.19 lbs |
| Max Media Size | Roll (3.25 in) |
| Min Media Size (Custom) | 0.79 in |
| Max Media Size (Custom) | 3.25 in |
| Print Speed | Up to 472.4 inch/min - max speed |
| Max Resolution (B&W) | 203 dpi |
| Interface | USB, RS232, LAN |
| Barcodes | Codabar, Aztec code, Code 128, Code 32, Code 39, Code 93, Data Matrix, EAN-13, EAN-8, ITF, PDF417, QR code, UPC-A, UPC-E |
| Media Type | Thermal paper |
| Styles & Effects | Bold, italic, underline, reverse |
| Networking | Print server |
| Power | AC 110 / DC 24 V |
| System Requirements | Linux, Android, Apple iOS, Windows Phone, Microsoft Windows 7 / 8 / 8.1 / 10 (32/64 bits) |
| Dimensions (WxDxH) | 5.1 in x 7.3 in x 4.7 in |
| General | |
| Printer Type | Receipt printer - direct thermal - monochrome |
| Expansion / Connectivity | |
| Connections | 1 x USB ¦ 1 x RS-232 ¦ 1 x LAN |
| Miscellaneous | |
| MTBF | 113,000 hour(s) |
| Features | Metal housing |
| Printer | |
| Print Speed | Up to 472.4 inch/min - max speed |
| Connectivity Technology | Wired |
| Interface | USB, RS232, LAN |
| Max Resolution (B&W) | 203 dpi |
| Styles & Effects | Bold, italic, underline, reverse |
| Barcodes | Codabar, Aztec code, Code 128, Code 32, Code 39, Code 93, Data Matrix, EAN-13, EAN-8, ITF, PDF417, QR code, UPC-A, UPC-E |
| Media Handling | |
| Media Type | Thermal paper |
| Max Media Size | Roll (3.25 in) |
| Min Media Size (Custom) | 0.79 in |
| Max Media Size (Custom) | 3.25 in |
| Media Sizes | Roll (3.25 in) |
| Media Feeders | 1 x manual - 1 roll - Roll (3.25 in) |
| Networking | |
| Networking | Print server |
| Power | |
| Voltage Required | AC 110 / DC 24 V |
| Software / System Requirements | |
| OS Required | Linux, Android, Apple iOS, Windows Phone, Microsoft Windows 7 / 8 / 8.1 / 10 (32/64 bits) |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 140 °F |
| Dimensions & Weight | |
| Width | 5.1 in |
| Depth | 7.3 in |
| Height | 4.7 in |
| Weight | 4.19 lbs |
