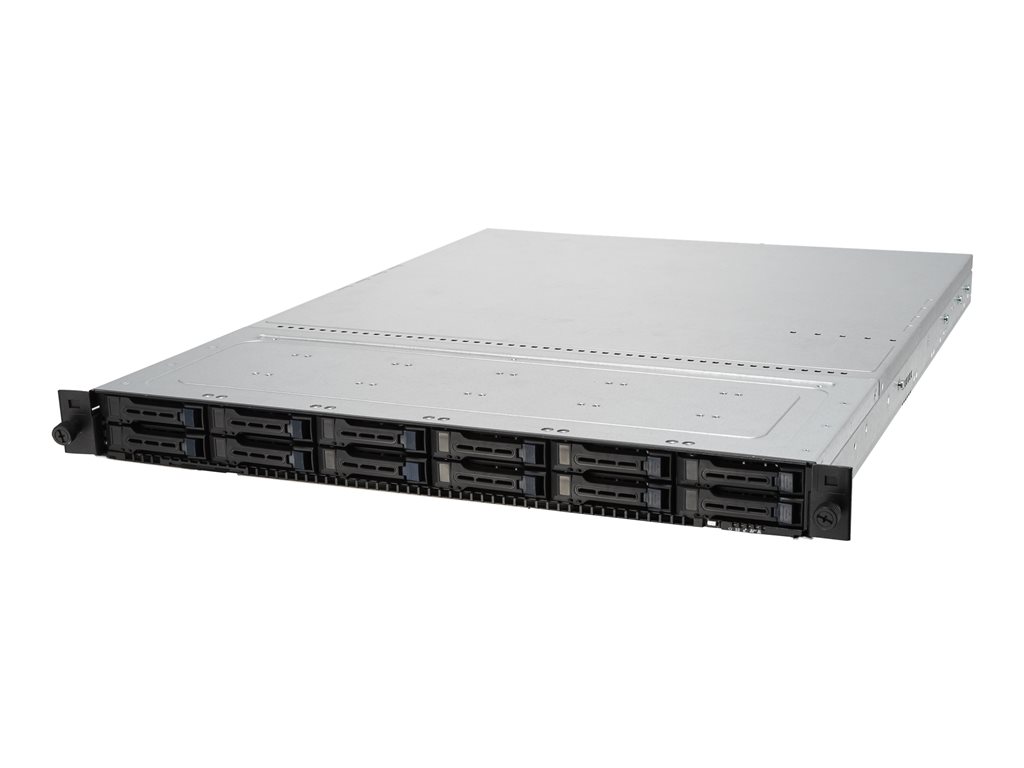

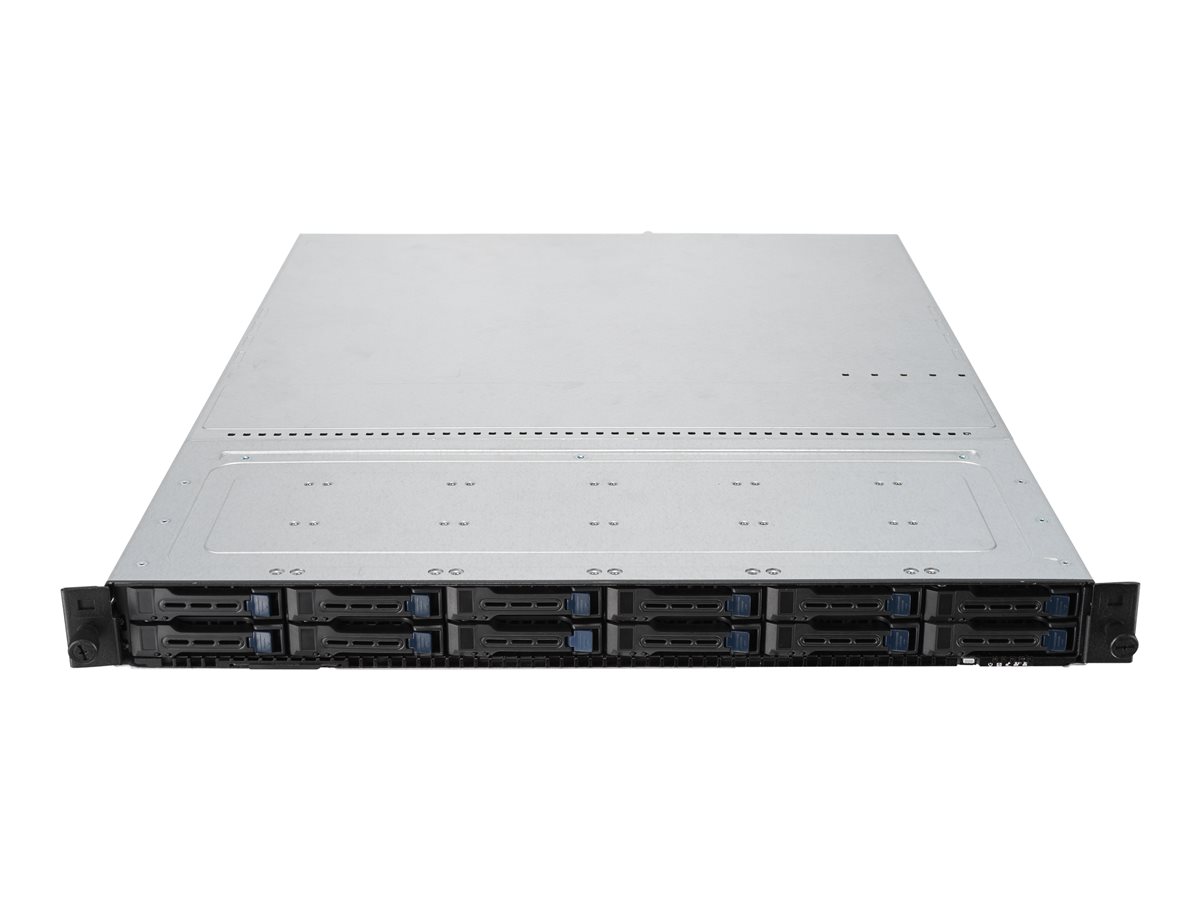

Server - rack-mountable - 1U - 1-way - no CPU up to - RAM 0 GB - SATA/PCI Express - hot-swap 2.5" bay(s) - no HDD - AST2500 - Gigabit Ethernet - monitor: none
| Main Specifications | |
|---|---|
| Product Description | ASUS RS500A-E10-RS12U - rack-mountable - AI Ready - no CPU - 0 GB - no HDD |
| Type | Server - rack-mountable AI Ready |
| Height (Rack Units) | 1U |
| Server Scalability | 1-way |
| Processor | No CPU |
| Processor Socket | Socket SP3 |
| RAM | 0 GB (installed) / 2048 GB (max) - DDR4 SDRAM |
| Storage Controller | SATA; NVMe |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | ASPEED AST2500 |
| Video Memory | 64 GB |
| Networking | 1GbE |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Yes |
| Weight | 24.25 lbs |
| General | |
| Type | Server - AI Ready |
| Product Form Factor | Rack-mountable - 1U |
| Server Scalability | 1-way |
| Hot-Swap Bays Qty | 12 |
| Expansion / Connectivity | |
| Bays | 12 (total) / 12 (free) x hot-swap 2.5" |
| Slots | 1 (total) / 1 (free) x PCIe 4.0 x16 ¦ 1 (total) / 1 (free) x PCIe 4.0 x16 / Open Compute Project mezzanine (OCP) 2.0 - half-length, full-height ¦ 1 (total) / 1 (free) x M.2 Card - 22110 |

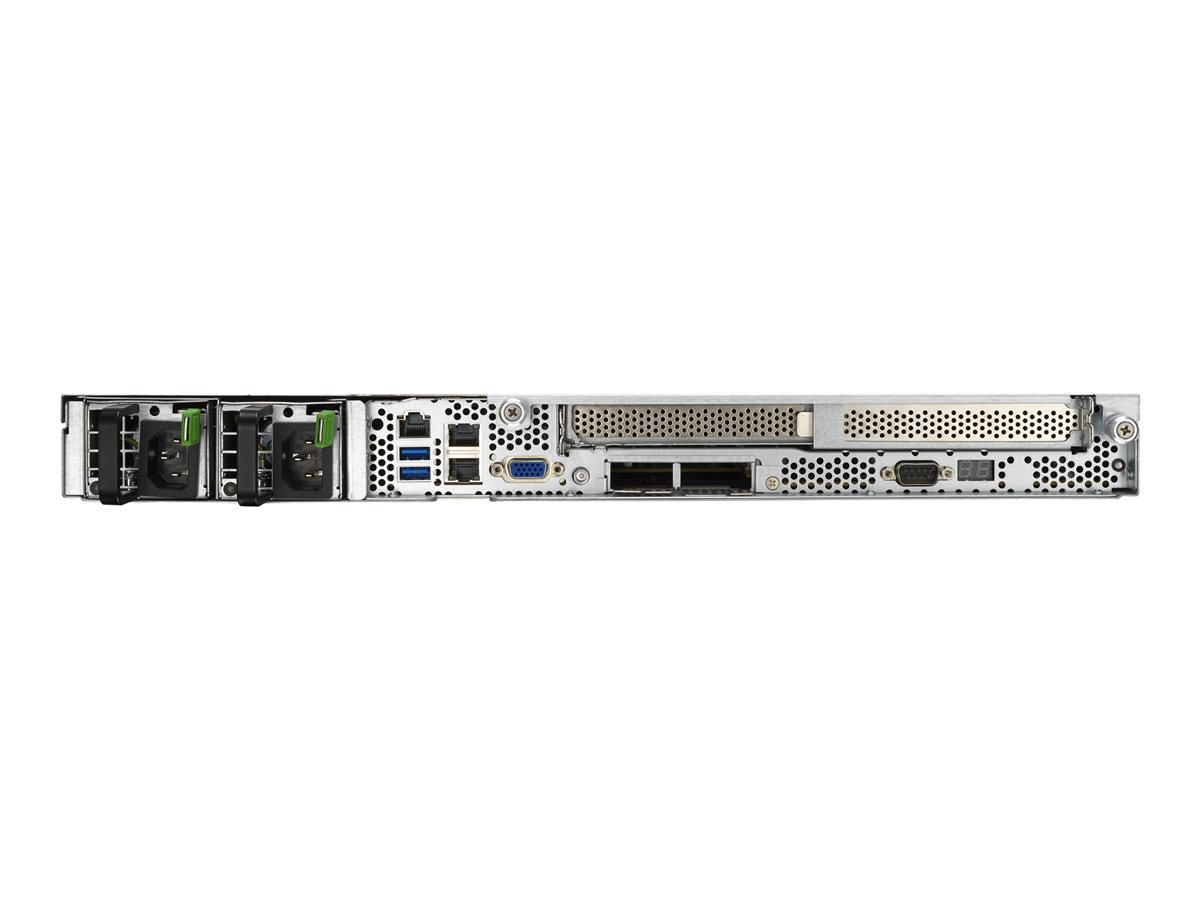

| Interfaces | 2 x USB 3.0 ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 1 x management ¦ 1 x serial |
| Miscellaneous | |
| Included Accessories | ASMB9-iKVM Remote Management Card |
| Compliant Standards | FCC Class A certified |
| RAM | |
| Installed Size | 0 GB (installed) / 2048 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | DIMM 288-pin |
| Slots | 16 (total) / 16 (empty) |
| Features | Registered, Load-Reduced DIMM (LRDIMM), 8-channel memory architecture, 3DS Load-Reduced DIMM (LRDIMM) |
| RAM Supported | 2048 GB Load-Reduced |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | Intel I350-AM2 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | |
| Device Type | Power supply |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 650 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Storage Controller | |
| Type | 1 x SATA |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | ASPEED AST2500 |
| Video Memory | 64 GB |
| Video Interfaces | VGA |
| Storage Controller (2nd) | |
| Type | 1 x NVMe |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Weight | 24.25 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 37.48 lbs |
| Processor / Chipset | |
| CPU | No CPU |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| CPU Socket | Socket SP3 |
