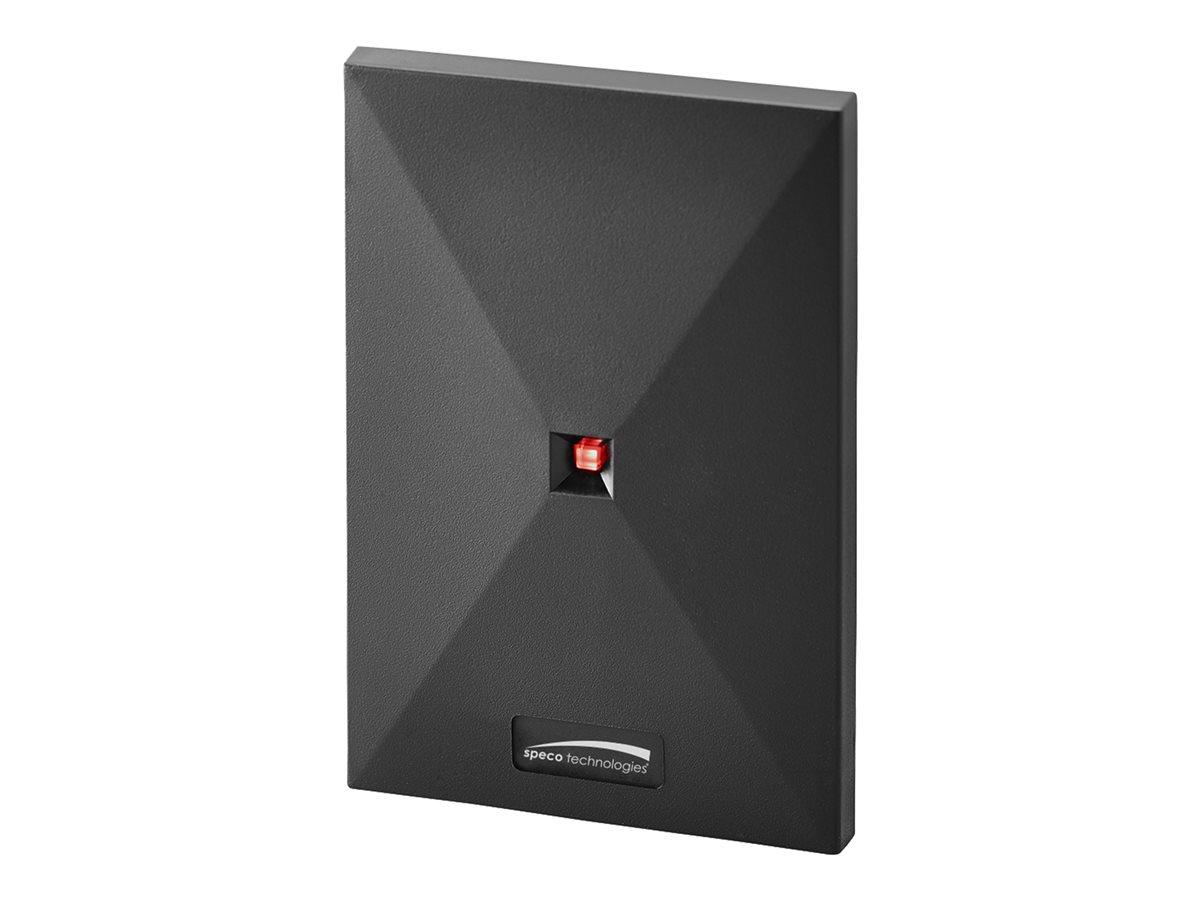

RFID proximity reader - wired - 125 KHz - Wiegand - black - epoxy
| Main Specifications | |
|---|---|
| Product Description | Speco AP500HA - RFID proximity reader - black |
| Product Type | RFID proximity reader |
| Environment | Indoor, outdoor |
| Placing / Mounting | Surface-mounting |
| Integrated Sensors | 125 KHz RFID Proximity Card Scanner |
| Connectivity | Wired - Wiegand |
| Frequency Band | 125 KHz |
| Color | Black |
| Finish | Epoxy |
| Manufacturer Warranty | Limited lifetime warranty |
| Dimensions (WxDxH) | 3 in x 0.4 in x 4.6 in |
| General | |
| Product Type | RFID proximity reader |
| Environment | Indoor, outdoor |
| Integrated Sensors | 125 KHz RFID Proximity Card Scanner |
| Placing / Mounting | Surface-mounting |
| Connectivity Technology | Wired - Wiegand |
| Frequency Band | 125 KHz |
| Interfaces Details | Wiegand |
| Features | Up to 20.2 cm read range, tamper protection, weatherproof, 4 LEDs |
| Miscellaneous | |
| Color | Black |
| Finish | Epoxy |
| Voltage Required | DC 5 - 16 V |
| Warranty | Limited lifetime warranty |
| Compliant Standards | IP67, NDAA, FCC, ICC, C-Tick, ETL |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 149 °F |
| Dimensions & Weight | |
| Width | 3 in |
| Depth | 0.4 in |
| Height | 4.6 in |
| Weight | 3.99 oz |
