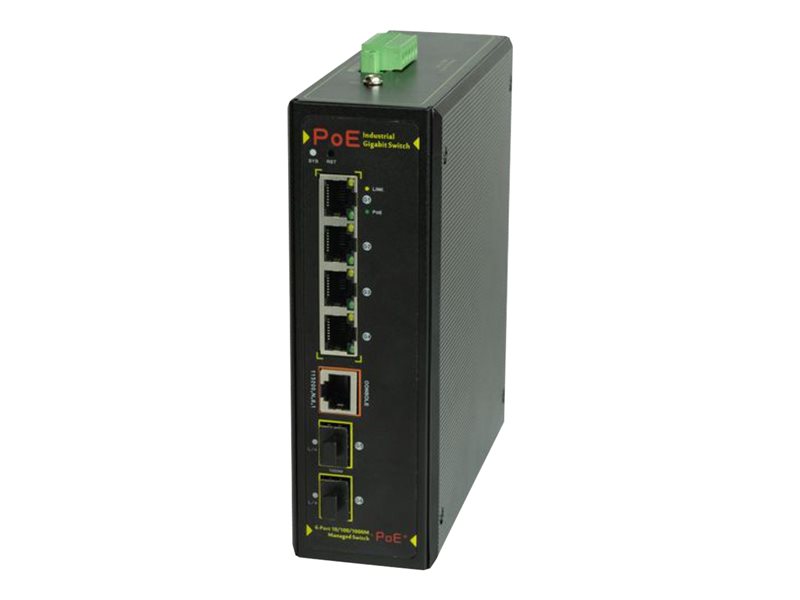

Switch - L2+ - managed - 4 x 10/100/1000 (PoE+) + 2 x SFP - DIN rail mountable - PoE+
| Main Specifications | |
|---|---|
| Product Description | Tycon Power TP-SW4G-2SFP - switch - 6 ports - managed |
| Device Type | Switch - 6 ports - L2+ - managed |
| Subtype | Gigabit Ethernet |
| Ports | 4 x 10/100/1000 (PoE+) + 2 x SFP |
| Power Over Ethernet (PoE) | PoE+ |
| Max Transfer Distance | 12.4 miles |
| Performance | Bandwidth: 192 Gbps ¦ Switching capacity (64-byte packet size): 14.88 Mpps ¦ Packet forwarding rate: 14.88 Mpps |
| Capacity | VLANs supported: 4096 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9.6KB |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, SSH, CLI |
| Features | Auto-negotiation, VLAN support, IGMP snooping, port mirroring, Broadcast Storm Control, surge protection, STP support, RSTP support, MSTP support, DHCP snooping, QoS, Jumbo Frames support, LLDP support, over-current protection, over-voltage protection, short circuit protection, Energy Efficient Ethernet, port isolation, Storm Control, ARP inspection, 4KV Surge protection, 2KV Surge protection, Extensive ACL support |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3at, IEEE 802.3az, ITU-T G.8032 |
| Dimensions (WxDxH) | 2.1 in x 5.8 in x 6.5 in |
| Weight | 31.74 oz |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Switch - 6 ports - L2+ - managed |
| Enclosure Type | DIN rail mountable |
| Subtype | Gigabit Ethernet |
| Ports | 4 x 10/100/1000 (PoE+) + 2 x SFP |
| Power Over Ethernet (PoE) | PoE+ |
| Max Transfer Distance | 12.4 miles |
| Performance | Bandwidth: 192 Gbps ¦ Switching capacity (64-byte packet size): 14.88 Mpps ¦ Packet forwarding rate: 14.88 Mpps |
| Capacity | VLANs supported: 4096 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9.6KB |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, SSH, CLI |
| Encryption Algorithm | SSL |
| Features | Auto-negotiation, VLAN support, IGMP snooping, port mirroring, Broadcast Storm Control, surge protection, STP support, RSTP support, MSTP support, DHCP snooping, QoS, Jumbo Frames support, LLDP support, over-current protection, over-voltage protection, short circuit protection, Energy Efficient Ethernet, port isolation, Storm Control, ARP inspection, 4KV Surge protection, 2KV Surge protection, Extensive ACL support |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3at, IEEE 802.3az, ITU-T G.8032 |
| Status Indicators | Power, PoE, link/activity |
| Expansion / Connectivity | |
| Interfaces | 4 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 2 x LAN SFP ¦ 1 x console RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| MTBF | 539,608 hours |
| Compliant Standards | FCC, RoHS, LVD |
| Power | |
| Power Consumption Operational | 5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 176 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Dimensions & Weight | |
| Width | 2.1 in |
| Depth | 5.8 in |
| Height | 6.5 in |
| Weight | 31.74 oz |
