Graphics card - GF RTX 2060 - 6 GB GDDR6 - PCIe 3.0 x16 - DVI, HDMI, DisplayPort
| Main Specifications | |
|---|---|
| Product Description | EVGA GeForce RTX 2060 KO ULTRA GAMING - graphics card - GF RTX 2060 - 6 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 3.0 x16 |
| Graphics Engine | NVIDIA GeForce RTX 2060 |
| Memory | 6 GB GDDR6 |
| Boost Clock | 1755 MHz |
| CUDA Cores | 1920 |
| Effective Memory Clock | 14000 MHz |
| Memory Interface | 192-bit |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 3 |

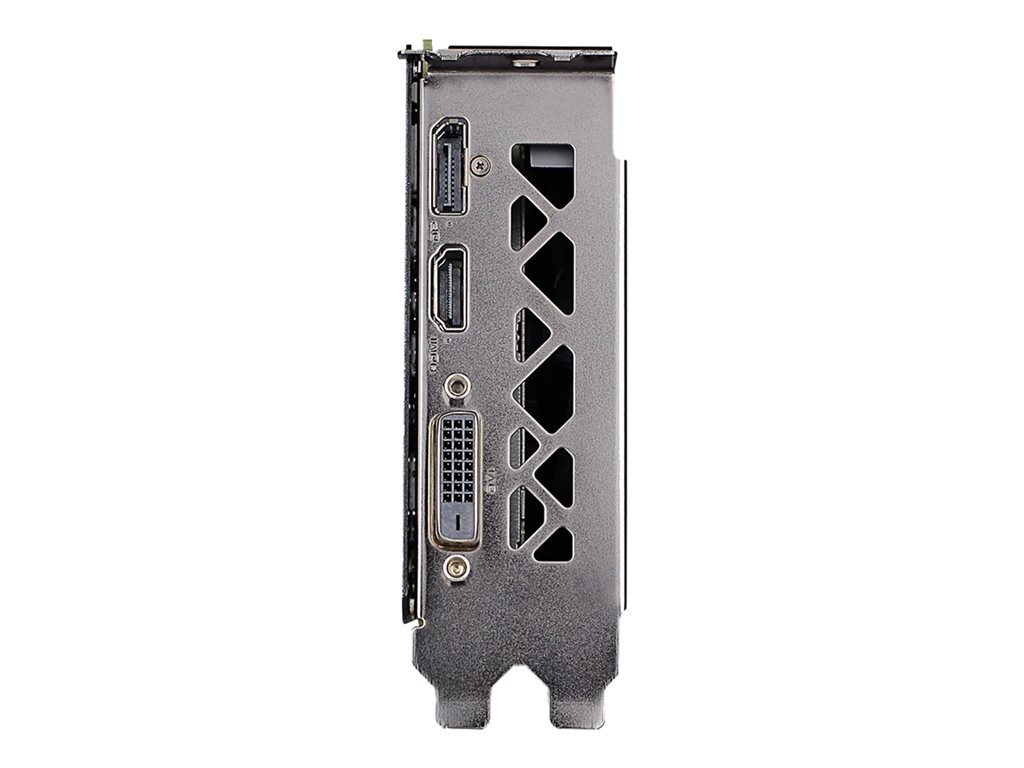

| Interfaces Details | DisplayPort ¦ DVI-D (dual link) ¦ HDMI |
| API Supported | DirectX 12, OpenGL 4.5, Vulkan |
| Dimensions (WxDxH) | 8 in x 4.4 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 3.0 x16 |
| Graphics Engine | NVIDIA GeForce RTX 2060 |
| Boost Clock | 1755 MHz |
| CUDA Cores | 1920 |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 3 |
| Interfaces Details | DisplayPort ¦ DVI-D (dual link) ¦ HDMI |
| API Supported | DirectX 12, OpenGL 4.5, Vulkan |

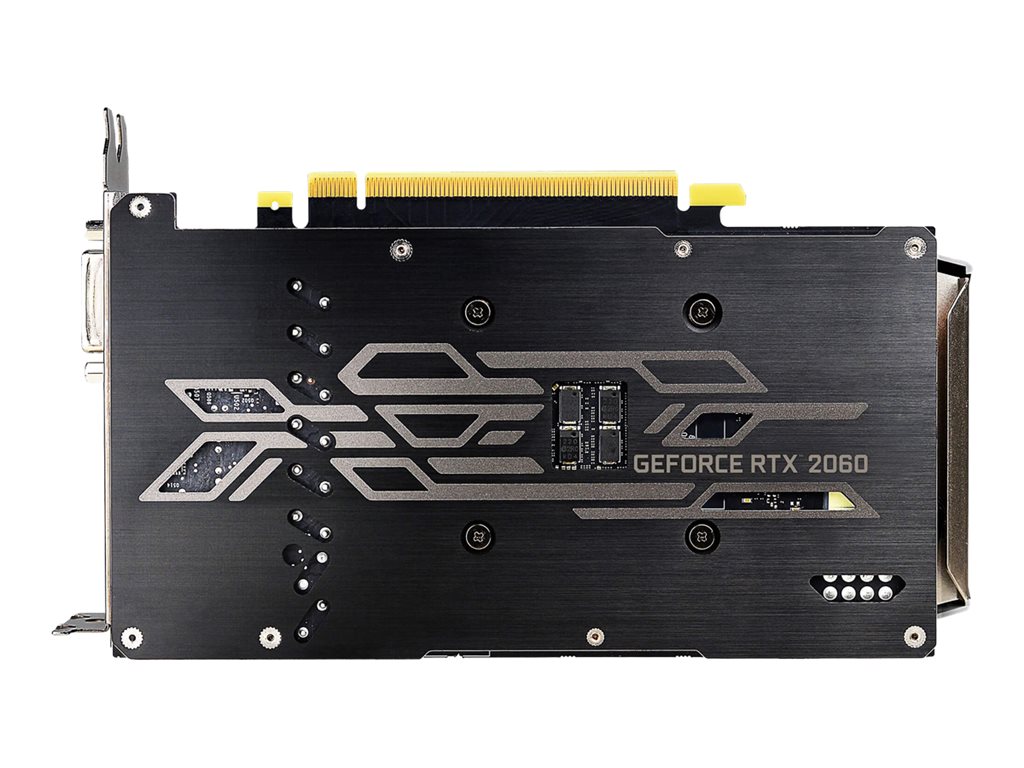

| Features | NVIDIA GPU Boost, NVIDIA G-Sync ready, EVGA Backplate, NVIDIA Ansel, Real-Time Ray Tracing, NVIDIA Highlights, NVIDIA Turing GPU architecture, HDCP |
| Memory | |
| Size | 6 GB |
| Technology | GDDR6 SDRAM |
| Effective Clock Speed | 14000 MHz |
| Bus Width | 192-bit |
| Bandwidth | 336 GBps |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Power Consumption Operational | 160 watt |
| Software Included | NVIDIA GeForce Experience, EVGA Precision X1 |
| Compliant Standards | DisplayPort 1.4, HDCP 2.2 |
| Depth | 8 in |
| Height | 4.4 in |
| System Requirements | |
| OS Required | Microsoft Windows 7 / 10 (64-bit) |
| Required Power Supply | 500 W |
| Additional Requirements | 8 pin PCI Express power connector |
