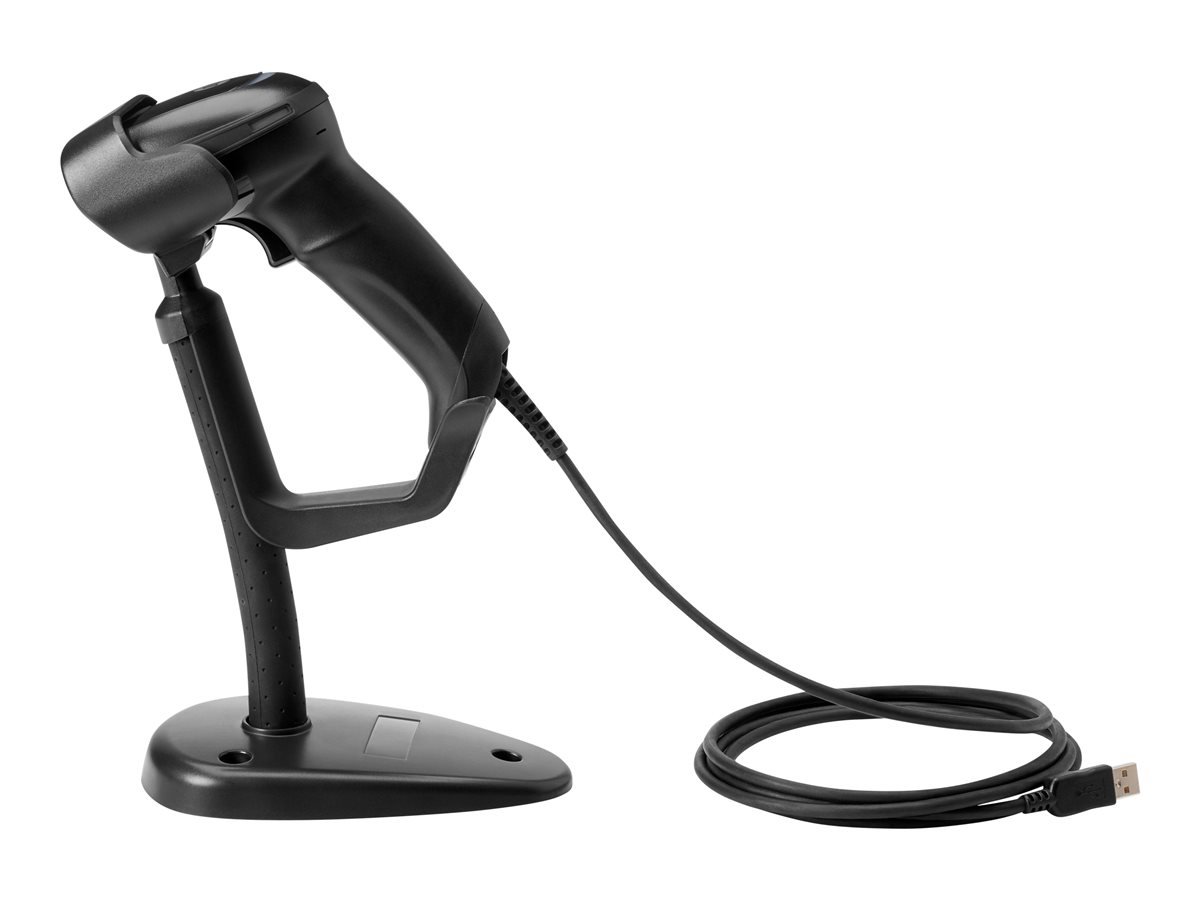

Barcode scanner - handheld - 2D imager - decoded - USB
| Main Specifications | |
|---|---|
| Product Description | HP Engage Imaging Barcode Scanner II - barcode scanner |
| Type | Barcode scanner - handheld - USB - decoded |
| Color | Black |
| Scan Element Type | 2D imager |
| Sensor Resolution | 1280 x 800 |
| Connectivity Technology | Wired |
| Power | DC 5 V |
| System Requirements | Windows 10 Pro 64-bit Edition, Windows 10 IoT Enterprise, Windows 8.1 Pro 64-bit Edition, Windows Embedded 8.1 Industry Pro Retail 64-bit, Microsoft Windows 7 Professional (32/64 bits), Microsoft Windows Embedded POSReady 7 64-bit, Microsoft Windows Embedded POSReady 7 32-bit, Microsoft Windows Embedded POSReady 2009, Red Hat Enterprise Linux / CentOS, SUSE Linux Enterprise Point of Service 11 SP3 (32/64 bits), Ubuntu 14.04 LTS (64-bit) |
| Dimensions (WxDxH) | 2.7 in x 6.5 in x 4.3 in |
| Weight | 5.68 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Type | Barcode scanner - handheld |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x USB - Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |

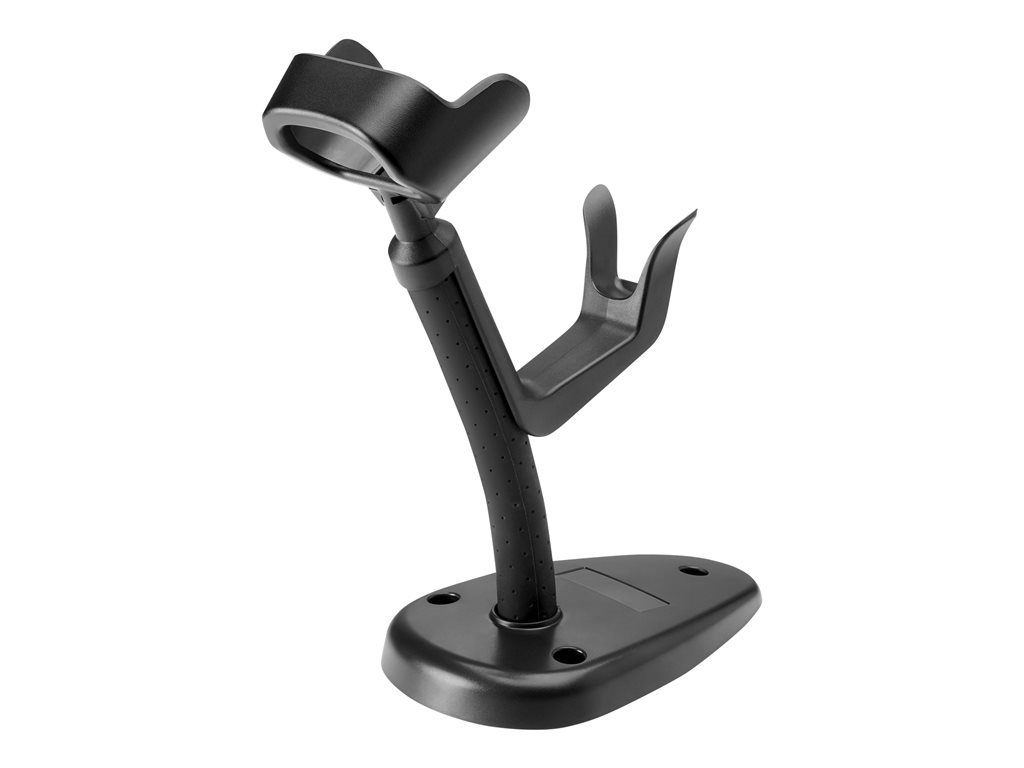

| Included Accessories | Stand |
| Cables Included | 1 x USB cable - 6.6 ft |
| Compliant Standards | FCC Part 15 B, CE/EMC, IEC 62471, RoHS |
| Power | |
| Voltage | DC 5 V |
| Electric Current Required | 300 mA (operating), 90 mA (standby) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| System Requirements | |
| OS Required | Windows 10 Pro 64-bit Edition, Windows 10 IoT Enterprise, Windows 8.1 Pro 64-bit Edition, Windows Embedded 8.1 Industry Pro Retail 64-bit, Microsoft Windows 7 Professional (32/64 bits), Microsoft Windows Embedded POSReady 7 64-bit, Microsoft Windows Embedded POSReady 7 32-bit, Microsoft Windows Embedded POSReady 2009, Red Hat Enterprise Linux / CentOS, SUSE Linux Enterprise Point of Service 11 SP3 (32/64 bits), Ubuntu 14.04 LTS (64-bit) |
| Dimensions & Weight | |
| Width | 2.7 in |
| Depth | 6.5 in |
| Height | 4.3 in |
| Weight | 5.68 oz |
| Barcode | |
| Interface Type | USB |
| Scan Element Type | 2D imager |
| Sensor Resolution | 1280 x 800 |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 15% |
| Decode Capability | Aztec code, China Han Xin Code, GS1 DataBar, Data Matrix, MaxiCode, Micro QR code, QR code, Australian Post, British Post, China Post, Intelligent Mail Barcode, Japanese Post, Kix (Netherlands) Post, PLANET, Postnet, Royal Mail, EAN/JAN, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MacroPDF417, MicroPDF417, PDF417, UPC A Composite, UPC E Composite |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
