Video/audio splitter - 2 x HDMI - desktop
| Main Specifications | |
|---|---|

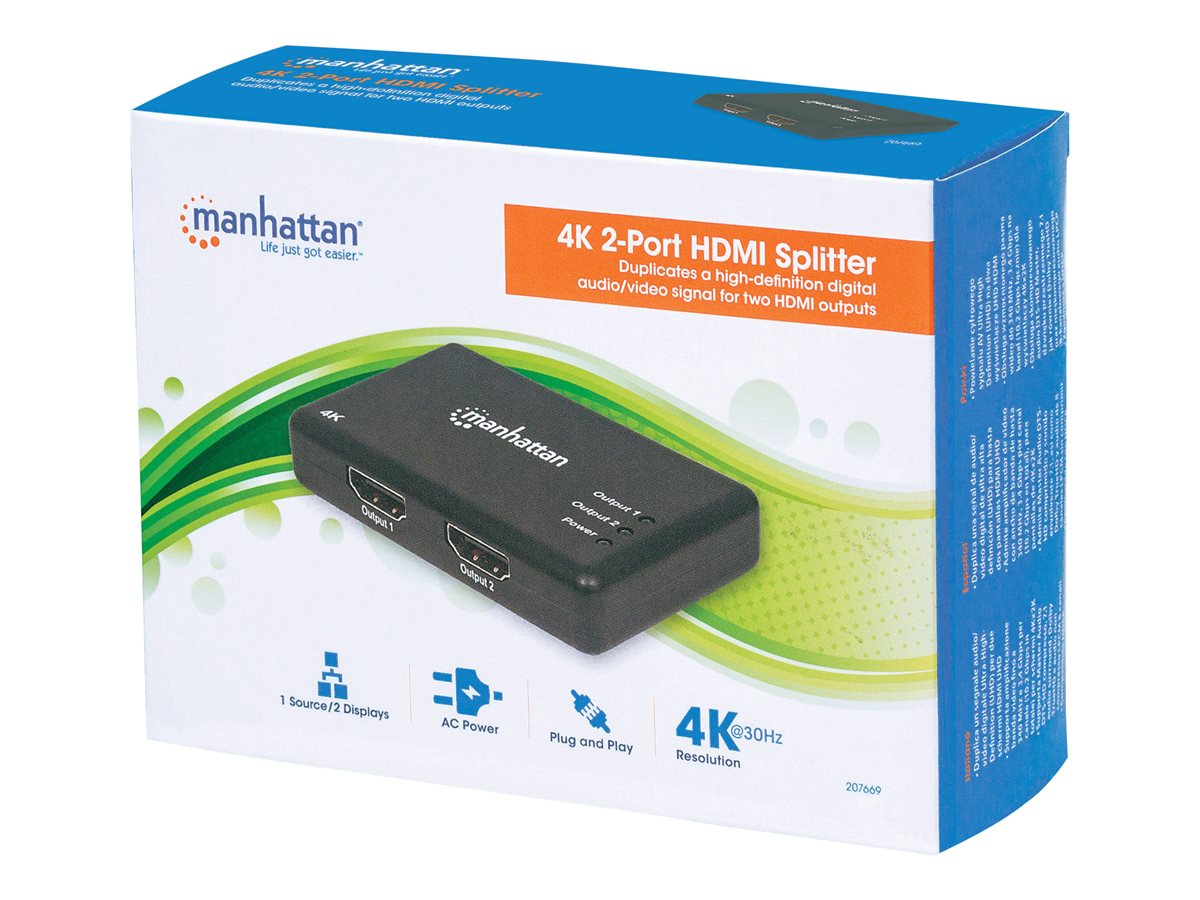

| Product Description | Manhattan HDMI Splitter 2-Port , 4K@30Hz, Displays output from x1 HDMI source to x2 HD displays (same output to both displays), AC Powered (cable 0.9m), Black, Three Year Warranty, Retail Box - video/audio splitter - 2 ports |
| Device Type | Video/audio splitter - 2 ports |
| Subtype | HDMI |
| Ports | 2 x HDMI |
| Performance | Bandwidth: 10.2 Gbps ¦ Bandwidth per channel: 3.4 Gbps |
| Features | HDCP compliant, plastic housing, 3D support, 4K resolution support, LPCM 7.1 support, Dolby TrueHD support, DTS-HD Master Audio support, 48-bit Deep Color support, gold plated connectors |
| Compliant Standards | DVI 1.0, HDCP 1.4 |
| Dimensions (WxDxH) | 3 in x 1.9 in x 0.6 in |
| Weight | 1.41 oz |
| Localization | Europe |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video/audio splitter - 2 ports |
| Enclosure Type | Desktop |
| Subtype | HDMI |
| Ports | 2 x HDMI |
| Performance | Bandwidth: 10.2 Gbps ¦ Bandwidth per channel: 3.4 Gbps |
| Max Resolution | 4096 x 2160 @ 24 Hz |
| Max Video Bandwidth | 340 MHz |
| Features | HDCP compliant, plastic housing, 3D support, 4K resolution support, LPCM 7.1 support, Dolby TrueHD support, DTS-HD Master Audio support, 48-bit Deep Color support, gold plated connectors |
| Compliant Standards | DVI 1.0, HDCP 1.4 |
| Status Indicators | Port status, power |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI input ¦ 2 x HDMI output |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | Plug and Play, FCC, RoHS2, CTS 1.4a |
| Localization | Europe |
| Power | |
| Power Device | External power adapter |
| Power Provided | 5 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 96% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Dimensions & Weight | |
| Width | 3 in |
| Depth | 1.9 in |
| Height | 0.6 in |
| Weight | 1.41 oz |
