5-15/20R & L6-20R Outlets, 208V to 120V, 60 Hz, 2U - Transformer (rack-mountable) - AC 208 V - 3 kW - 3000 VA - output connectors: 13 - 2U - 19"
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series 3000VA 3000W Step-Down Isolation Transformer - 5-15/20R & L6-20R Outlets, 208V to 120V, 60 Hz, 2U - transformer - 3 kW - 3000 VA |
| Device Type | Transformer - rack-mountable |
| Rack Size | 19" - 2U |
| Weight | 63.01 lbs |
| Input Voltage | AC 208 V |
| Output Voltage | AC 120/208 V |
| Power Capacity | 3 kW / 3000 VA |

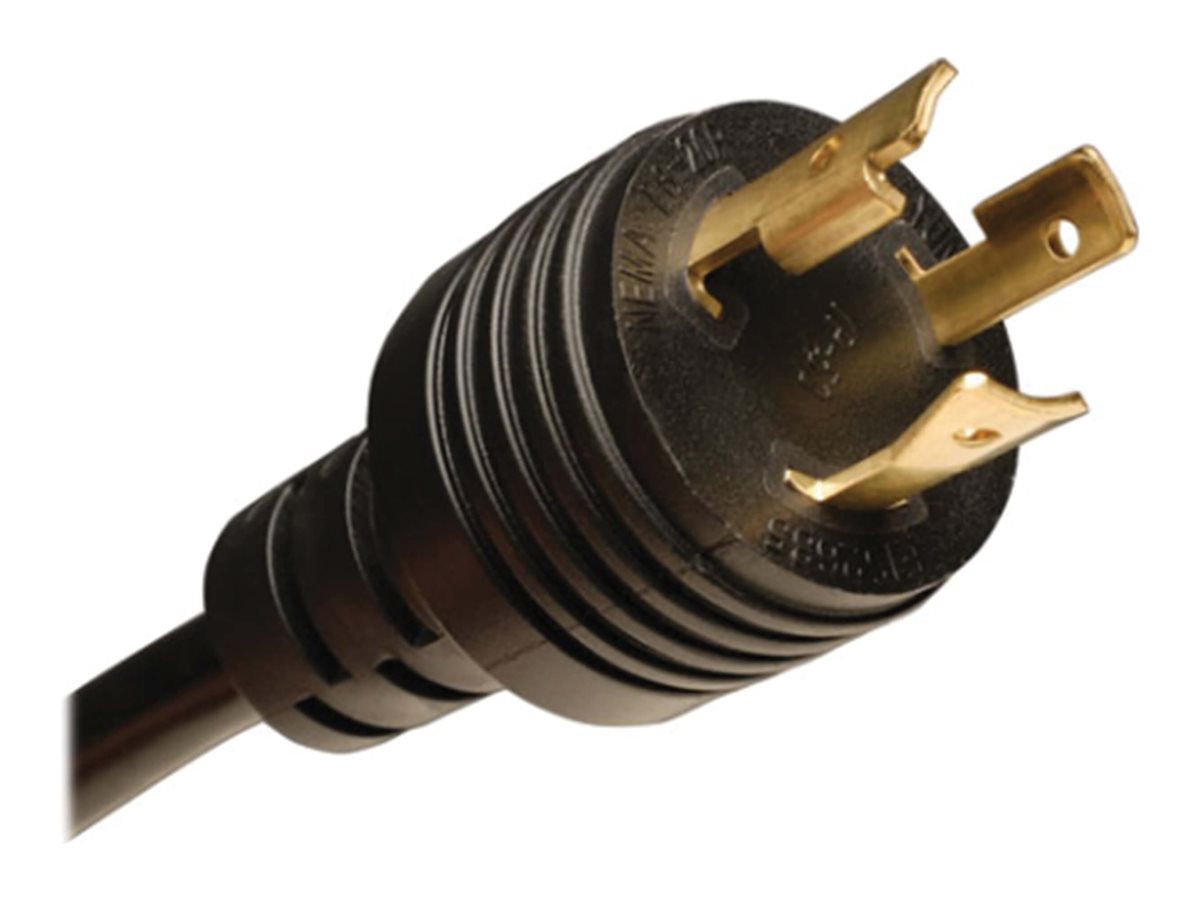

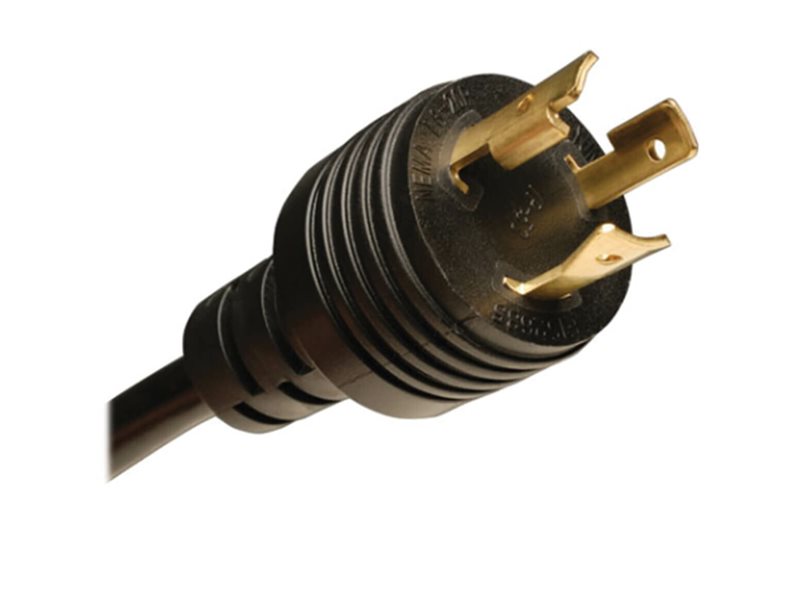

| Input Connectors | 1 x power NEMA L6-20P |
| Output connectors | 12 x 12 x power NEMA 5-15/20R ¦ 1 x power NEMA L6-20R |
| Dimensions (WxDxH) | 17.3 in x 20.7 in x 3.4 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Transformer - rack-mountable |
| Height (Rack Units) | 2U |
| Rack Size | 19" |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 10 ft |

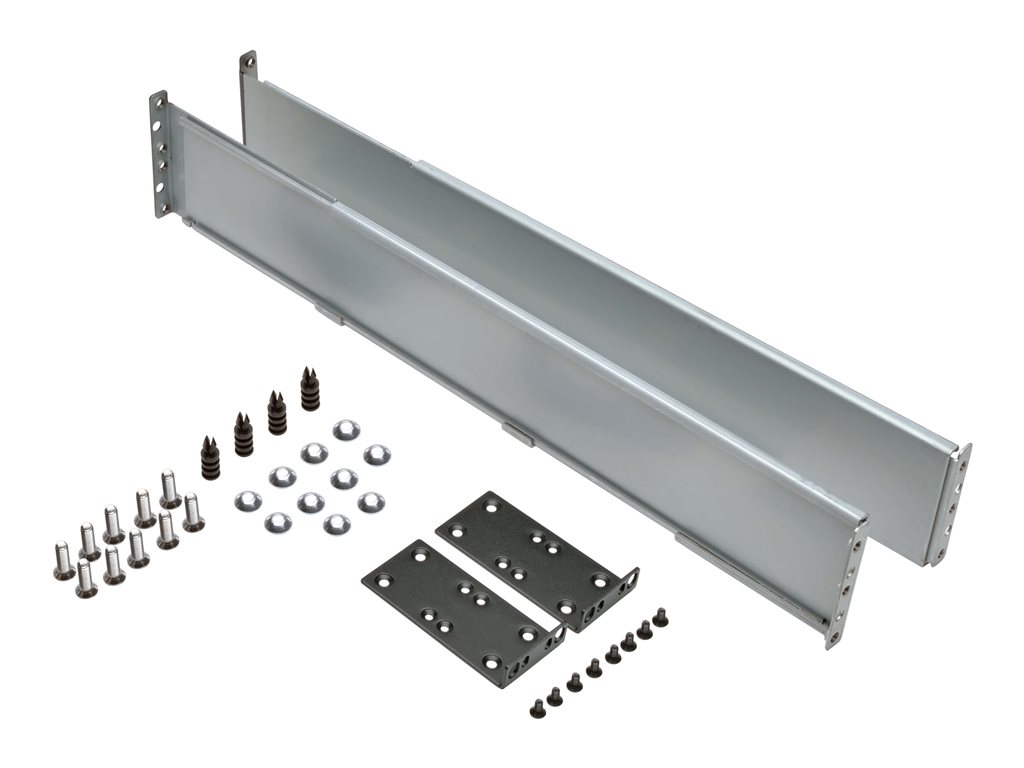

| Rack Mounting Kit | Included |
| Features | VMware Ready |
| Compliant Standards | RoHS |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Power Device | |
| Input Voltage | AC 208 V |
| Frequency Provided | 60 Hz |
| Frequency Required | 60 Hz |
| Input Connectors | 1 x power NEMA L6-20P |
| Power Output Connectors Details | 12 x 12 x power NEMA 5-15/20R ¦ 1 x power NEMA L6-20R |
| Output Voltage | AC 120/208 V 60 Hz |
| Power Capacity | 3 kW / 3000 VA |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 20.7 in |
| Height | 3.4 in |
| Weight | 63.01 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 20.2 in |
| Shipping Depth | 23.7 in |
| Shipping Height | 8.6 in |
| Shipping Weight | 72.99 lbs |
