Gateway - 1GbE - desktop
| Main Specifications | |
|---|---|

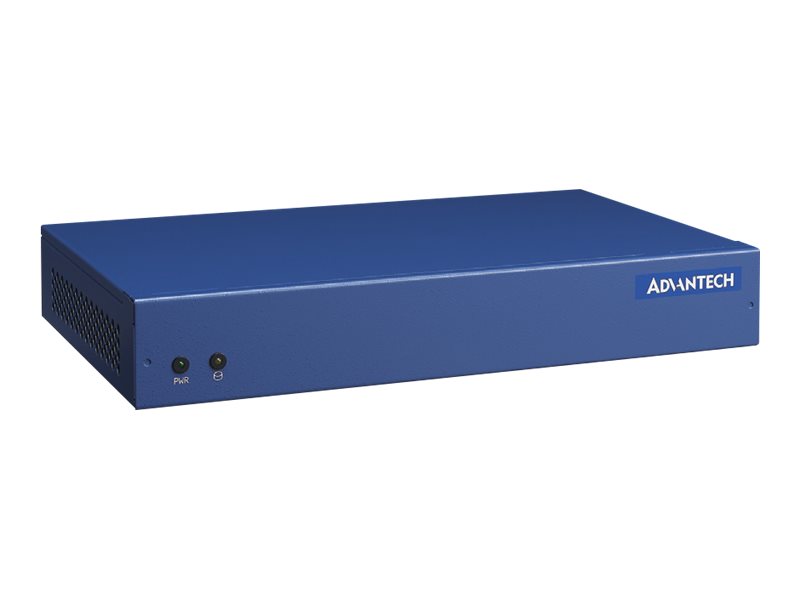

| Product Description | Advantech FWA-1320 - gateway |
| Device Type | Gateway |
| Form Factor | Desktop |
| Processor | 1 x Intel Atom C2358 - 1.7 GHz |
| RAM | 16 GB (max) |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | AC 120/230 V |
| Dimensions (WxDxH) | 11 in x 6.9 in x 1.7 in |
| Weight | 4.41 lbs |
| General | |
| Device Type | Gateway |
| Width | 11 in |
| Depth | 6.9 in |
| Height | 1.7 in |
| Weight | 4.41 lbs |
| Expansion / Connectivity | |
| Expansion Bays | 1 (total) / 1 (free) x internal - 2.5" ¦ 1 (total) / 1 (free) x internal - mSATA |
| Expansion Slots | 2 DIMM 240-pin |
| Interfaces | 4 x 1000Base-T - RJ-45 ¦ 2 x USB 2.0 - Type A ¦ 1 x console - RJ-45 ¦ 2 x 1000Base-T (management) - RJ-45 |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, UL, CB, CCC, RoHS, cULus |
| Networking | |
| Form Factor | Desktop |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Status Indicators | Power, HDD activity |
| Features | Trusted Platform Module 1.2 (TPM 1.2) |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V |
| Power Provided | 60 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 95% (non-condensing) |
| Processor / Memory / Storage | |
| Processors Installed | 1 x Intel Atom C2358 1.7 GHz |
| Max Supported Qty | 1 |
| RAM | (16 GB max) DDR3 SDRAM DIMM 240-pin |
