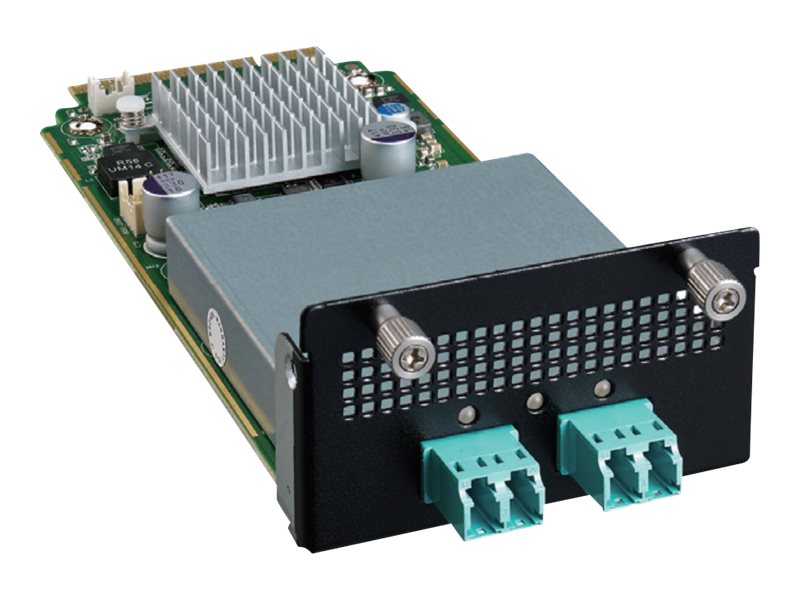

Thumbscrew Type - expansion module - PCIe 3.0 x8 - 10GBase-SR x 2
| Main Specifications | |
|---|---|
| Product Description | Advantech NMC-1010 - Thumbscrew Type - expansion module - PCIe 3.0 x8 - 10GBase-SR x 2 |
| Device Type | Expansion module |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 3.0 x8 |
| PCI Specification Revision | PCIe 3.0 |
| Ports | 10GBase-SR x 2 |
| Dimensions (WxDxH) | 2.9 in x 6.9 in x 1.7 in |
| Cabling Type | Ethernet 10GBase-SR |
| Data Link Protocol | 10GbE |
| Data Transfer Rate | 10 Gbps |
| Processor | 1 x Intel XL710-BM2 |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.3-2005 |
| General | |
| Device Type | Expansion module |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 3.0 x8 |
| PCI Specification Revision | PCIe 3.0 |
| Expansion / Connectivity | |
| Interfaces | 2 x 10GBASE-SR - LC - female - x 2 |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS |
| Networking | |
| Ports | 10GBase-SR x 2 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10GBase-SR |
| Data Link Protocol | 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Status Indicators | Link/activity |
| Features | Flow control, VLAN support, teaming support, Advanced LAN Bypass |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.3-2005 |
| Power | |
| Power Consumption Operational | 15 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Processor / Memory | |
| Processor | 1 x Intel XL710-BM2 |
| Dimensions & Weight | |
| Width | 2.9 in |
| Depth | 6.9 in |
| Height | 1.7 in |
