Titan Ridge - Docking station - USB-C / Thunderbolt 3 - DP - 1GbE
| Main Specifications | |
|---|---|
| Product Description | SIIG Thunderbolt 3 Dual DP 4K Video Docking Station with PD - Titan Ridge - docking station - USB-C / Thunderbolt 3 - DP - 1GbE |
| Product Type | Docking station |
| Docking Interface | USB-C / Thunderbolt 3 |
| Video Interfaces | DP |
| Dimensions (WxDxH) | 6.6 in x 3.1 in x 1.1 in |
| Color | Iron gray |
| Networking | Gigabit Ethernet |
| Power | Power adapter AC 120/230 V (50 - 60 Hz) |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Product Type | Docking station |
| Width | 6.6 in |
| Depth | 3.1 in |
| Height | 1.1 in |
| Enclosure Color | Iron gray |
| Expansion / Connectivity | |

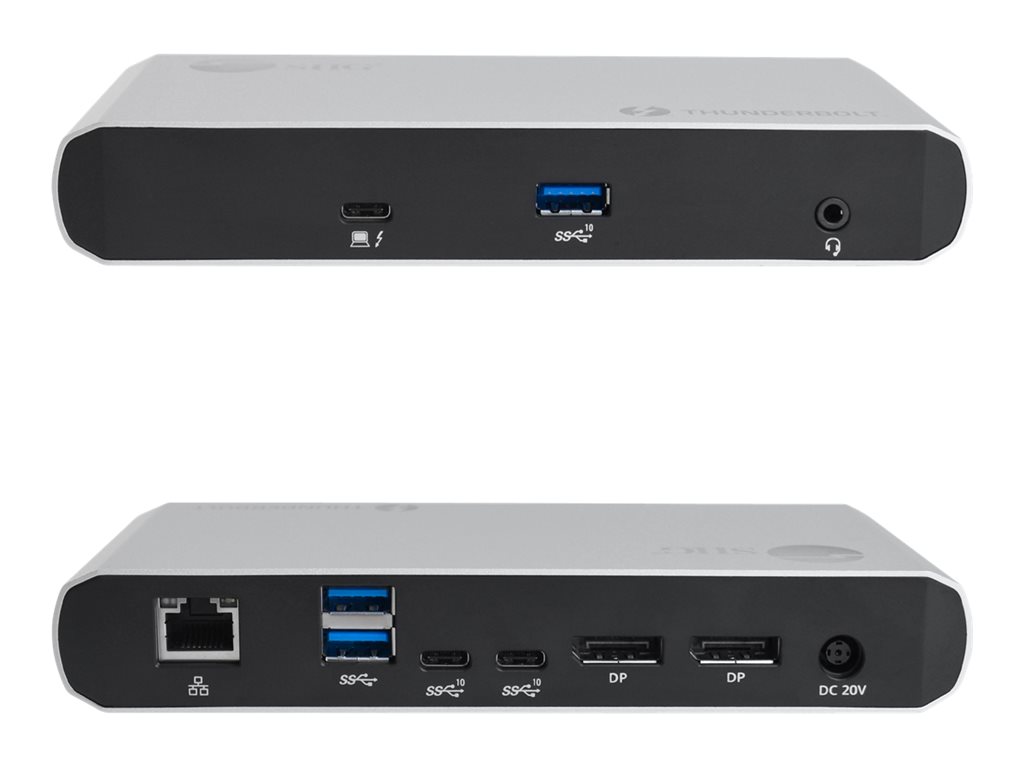

| Interfaces | 1 x USB-C / Thunderbolt 3 - 24 pin USB-C ¦ 2 x USB-C 3.1 Gen 2 - 24 pin USB-C ¦ 1 x USB 3.1 Gen 2 with Battery Charging 1.2 - 9 pin USB Type A ¦ 2 x USB 3.1 Gen 2 - 9 pin USB Type A ¦ 2 x audio / video - DisplayPort - 20 pin DisplayPort ¦ 1 x headphone/microphone combo jack - input / output - mini-phone stereo 3.5 mm ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |

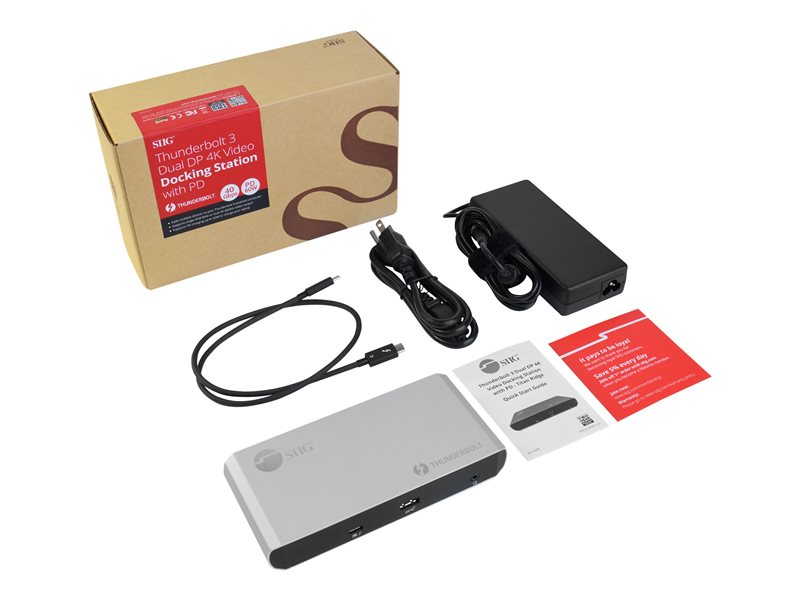

| Cables Included | 1 x Thunderbolt 3 cable - external - 2 ft |
| Features | 60W power delivery |
| Compliant Standards | UL, FCC, RoHS |
| Networking | |
| Data Link Protocol | Gigabit Ethernet |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Power | |
| Power Device | Power adapter |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| System Requirements | |
| OS Required | Windows 10, Apple macOS 10.13 - 10.15 |
