4x2 matrix switcher / audio disembedder / HDBaseT converter
| Main Specifications | |
|---|---|

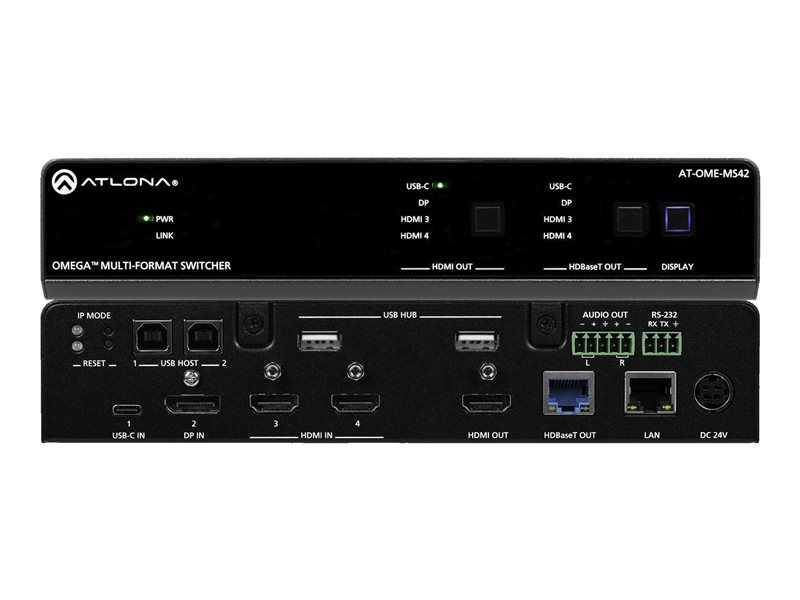

| Product Description | Atlona Omega AT-OME-MS42 4x2 matrix switcher / audio disembedder / HDBaseT converter |
| Type | 4x2 matrix switcher / audio disembedder / HDBaseT converter |
| Dimensions (WxDxH) | 8.6 in - 10 in - 1.7 in |
| Weight | 3.46 lbs |
| General | |
| Type | 4x2 matrix switcher / audio disembedder / HDBaseT converter |
| Width | 8.6 in |
| Depth | 10 in |
| Height | 1.7 in |
| Weight | 3.46 lbs |
| Power | |
| Voltage Required | AC 120/230 V |
| Frequency | 50/60 Hz |
| Low Voltage Power | DC 24 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Kit Content | |
| Kit Content | (1) x power adapter |
| Terminals | |
| Terminals | (1) x USB-C - USB-C ¦ (1) x DisplayPort input - 20 pin DisplayPort ¦ (2) x HDMI input - 19 pin HDMI Type A ¦ (1) x HDMI output - 19 pin HDMI Type A ¦ (1) x HDBaseT output - RJ-45 ¦ (1) x network - RJ-45 - Ethernet ¦ (2) x USB Host - 4 pin USB type B ¦ (2) x USB 2.0 - 4 pin USB type A ¦ (1) x serial - terminal block - RS-232 ¦ (1) x balanced audio output - terminal block - stereo |
| Studio & Production Equipment | |
| Features | Scaler function, 4K60 4:4:4 18Gbps signal support |
