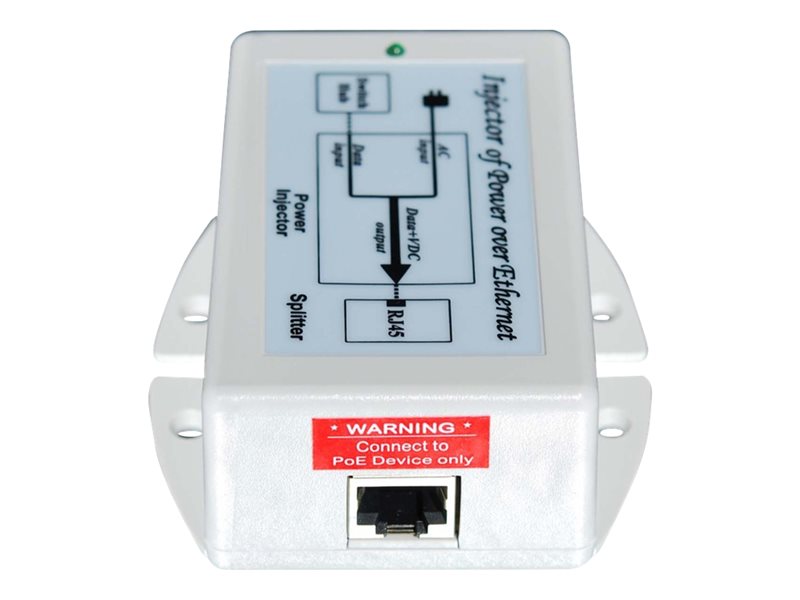

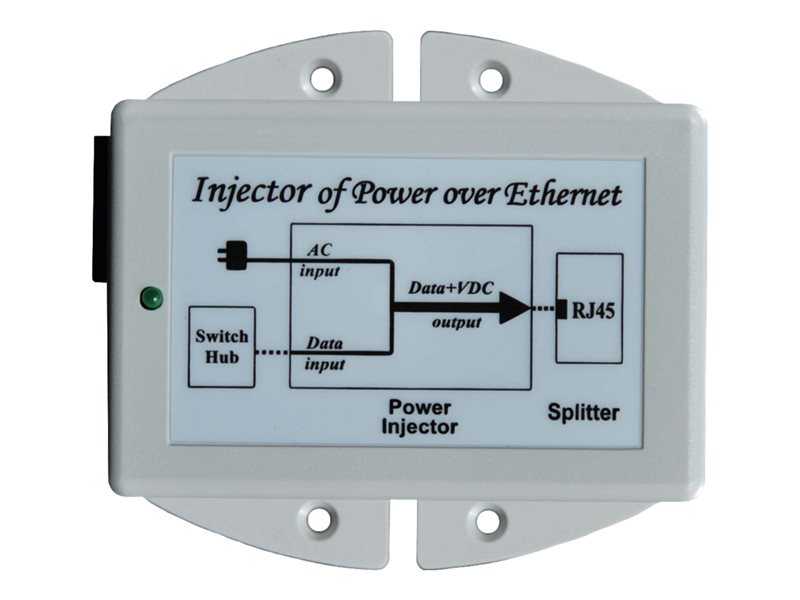

PoE injector - AC 90-264 V - 16.8 Watt - United States
| Main Specifications | |
|---|---|
| Product Description | Tycon Power Systems TP-POE-48GD - PoE injector - 16.8 Watt |
| Device Type | PoE injector - external |
| Weight | 5.29 oz |
| Localization | United States |
| Input Voltage | AC 90-264 V |
| Output Voltage | 48 V |
| Power Capacity | 16.8 Watt |
| Dimensions (WxDxH) | 3.3 in x 3 in x 1.4 in |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | PoE injector - external |
| Localization | United States |
| Expansion / Connectivity | |
| Interfaces | 1 x Gigabit LAN - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Features | Overvoltage protection, overload protection, short-circuit protection |
| Compliant Standards | FCC Class B certified, EN 60950, UL 1950, EN55022 Class B, CSA 22.2 |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 90% |
| Power Device | |
| Input Voltage | AC 90-264 V |
| Frequency Required | 47 - 63 Hz |
| Output Voltage | 48 V |
| Power Capacity | 16.8 Watt |
| Surge Suppression | Yes |
| Efficiency | 85% |
| Dimensions & Weight | |
| Width | 3.3 in |
| Depth | 3 in |
| Height | 1.4 in |
| Weight | 5.29 oz |
