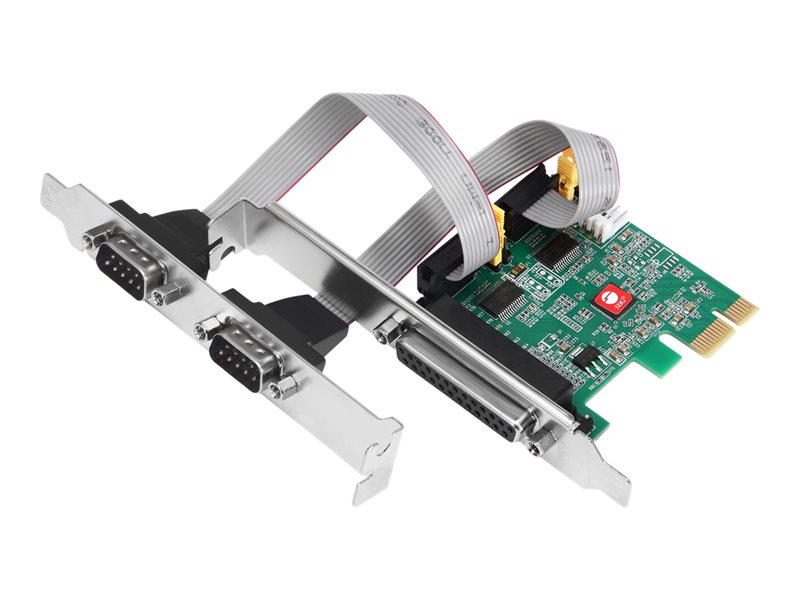

Parallel/serial adapter - PCIe 2.0 low profile - RS-232 x 2 + IEEE 1284 x 1 - green
| Main Specifications | |
|---|---|
| Product Description | SIIG DP Cyber 2S1P - parallel/serial adapter - PCIe 2.0 - RS-232 x 2 + IEEE 1284 x 1 |
| Device Type | Parallel/serial adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.0 x1 |
| PCI Specification Revision | PCIe 2.0 |
| Ports | RS-232 x 2 + IEEE 1284 x 1 |
| Dimensions (WxDxH) | 0.7 in x 4.7 in x 2.9 in |
| Weight | 1.6 oz |
| Data Link Protocol | Parallel, RS-232 |
| Processor | 1 x ASIX AX99100 |
| Color | Green |
| System Requirements | Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Microsoft Windows Server 2012 (32/64-bits), Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 10, Microsoft Windows Server 2016 (32/64 bits) |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Parallel/serial adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.0 x1 |
| PCI Specification Revision | PCIe 2.0 |
| Expansion / Connectivity | |
| Interfaces | 2 x RS-232 - 9 pin D-Sub (DB-9) - male ¦ 1 x IEEE 1284 (EPP/ECP) - 25 pin D-Sub (DB-25) - female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | 3 x low-profile bracket, 4 x jumpers |
| Compliant Standards | FCC, RoHS |
| Color | Green |
| Networking | |
| Ports | RS-232 x 2 + IEEE 1284 x 1 |
| Connectivity Technology | Wired |
| Data Link Protocol | Parallel, RS-232 |
| Features | Flow control |
| Power | |
| Power Consumption Operational | 3 watt |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Microsoft Windows Server 2012 (32/64-bits), Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 10, Microsoft Windows Server 2016 (32/64 bits) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
| Processor / Memory | |
| Processor | 1 x ASIX AX99100 |
| Dimensions & Weight | |
| Width | 0.7 in |
| Depth | 4.7 in |
| Height | 2.9 in |
| Weight | 1.6 oz |
