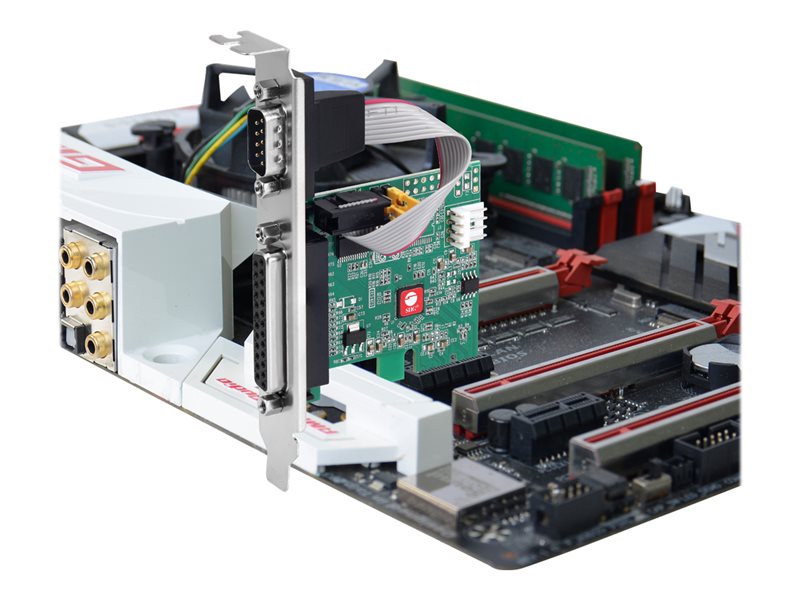

Parallel/serial adapter - PCIe 2.0 - RS-232 x 1 + parallel x 1 - green
| Main Specifications | |
|---|---|
| Product Description | SIIG DP Cyber 1S1P - parallel/serial adapter - PCIe 2.0 - RS-232 x 1 + parallel x 1 |
| Device Type | Parallel/serial adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 2.0 x1 |
| Ports | RS-232 x 1 + parallel x 1 |
| Dimensions (WxDxH) | 0.7 in x 2.9 in x 4.7 in |
| Weight | 1.6 oz |
| Cabling Type | Parallel, serial |
| Data Link Protocol | Parallel, RS-232 |
| Data Transfer Rate | 1.5 Mbps |
| Processor | 1 x ASIX AX99100 |
| Color | Green |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Parallel/serial adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 2.0 x1 |
| Expansion / Connectivity | |
| Interfaces | 1 x RS-232 - 9 pin D-Sub (DB-9) - male ¦ 1 x parallel - 25 pin D-Sub (DB-25) - female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |

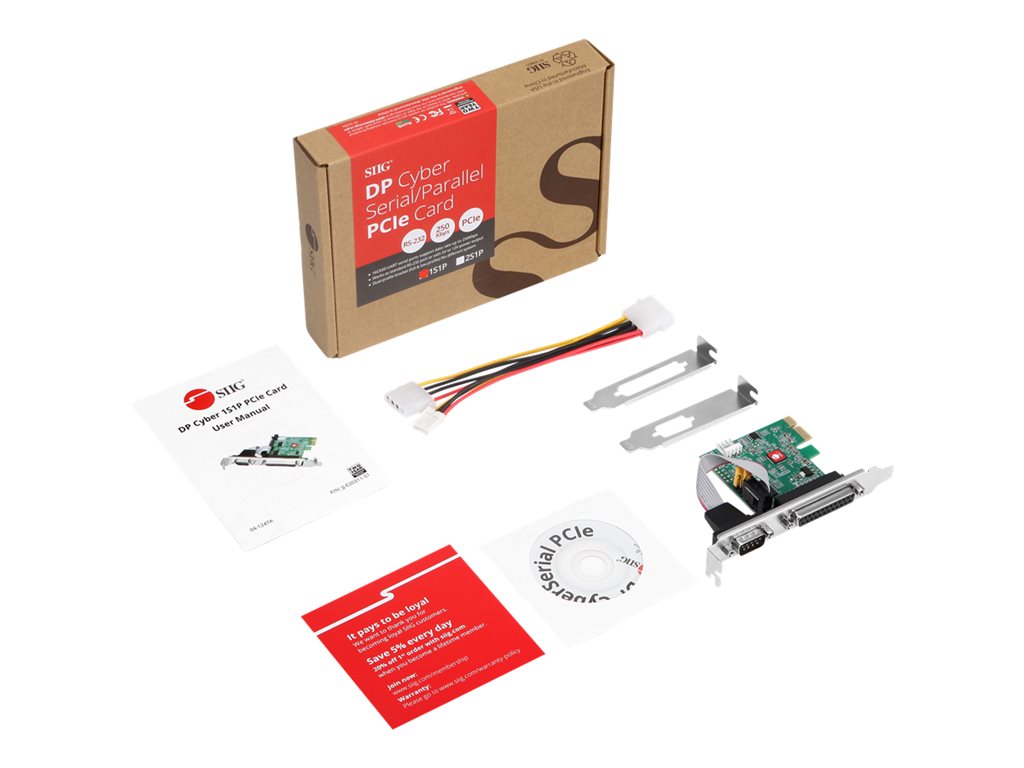

| Included Accessories | Low-profile bracket |
| Compliant Standards | FCC, RoHS |
| Color | Green |
| Networking | |
| Ports | RS-232 x 1 + parallel x 1 |
| Connectivity Technology | Wired |
| Cabling Type | Parallel, serial |
| Data Link Protocol | Parallel, RS-232 |
| Data Transfer Rate | 1.5 Mbps |
| Features | Flow control, 256-byte FIFO |
| Power | |
| Power Consumption Operational | 3 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Processor / Memory | |
| Processor | 1 x ASIX AX99100 |
| Dimensions & Weight | |
| Width | 0.7 in |
| Depth | 2.9 in |
| Height | 4.7 in |
| Weight | 1.6 oz |
