Parallel adapter - PCI Express x1 - IEEE 488, HS488
| Main Specifications | |
|---|---|

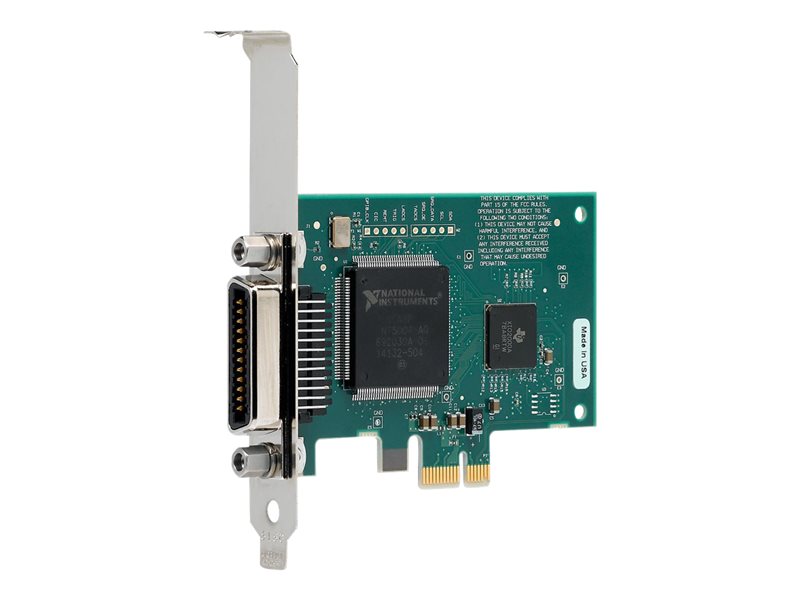

| Product Description | National Instruments PCIe-GPIB - parallel adapter - PCI Express x1 |
| Device Type | Parallel adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express x1 |
| Dimensions (WxDxH) | 3.8 in x 2.7 in |
| Data Link Protocol | IEEE 488, HS488 |
| Data Transfer Rate | 7.98 Mbps |
| Compliant Standards | IEEE 488.2 |
| System Requirements | Linux |
| General | |
| Device Type | Parallel adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express x1 |
| Expansion / Connectivity | |
| Interfaces | 1 x IEEE 488 (GPIB) - 24 pin Centronics - female |
| Miscellaneous | |
| Compliant Standards | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-56 |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | IEEE 488, HS488 |
| Data Transfer Rate | 7.98 Mbps |
| Compliant Standards | IEEE 488.2 |
| Software / System Requirements | |
| OS Required | Linux |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 - 90% |
| Dimensions & Weight | |
| Depth | 3.8 in |
| Height | 2.7 in |
