Security appliance - 1GbE, RS-232 - 1U
| Main Specifications | |
|---|---|

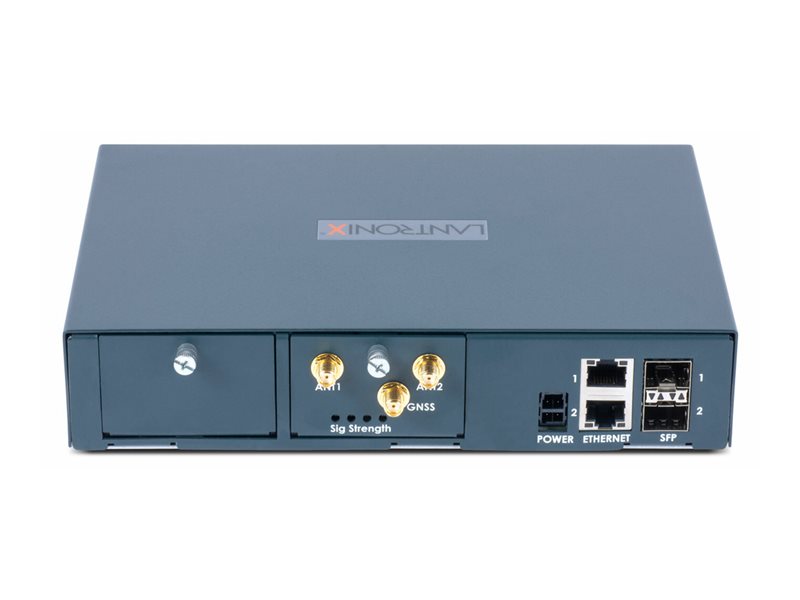

| Product Description | Lantronix Edge Management Gateway EMG8500 - security appliance |
| Device Type | Security appliance |
| Form Factor | External - 1U |
| RAM | 1 GB |
| Flash Memory | 1 GB |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232 |
| Cellular Protocol | LTE |
| Dimensions (WxDxH) | 6.6 in x 8.4 in x 1.7 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Security appliance |
| Height (Rack Units) | 1U |
| Width | 6.6 in |
| Depth | 8.4 in |
| Height | 1.7 in |
| Expansion / Connectivity | |

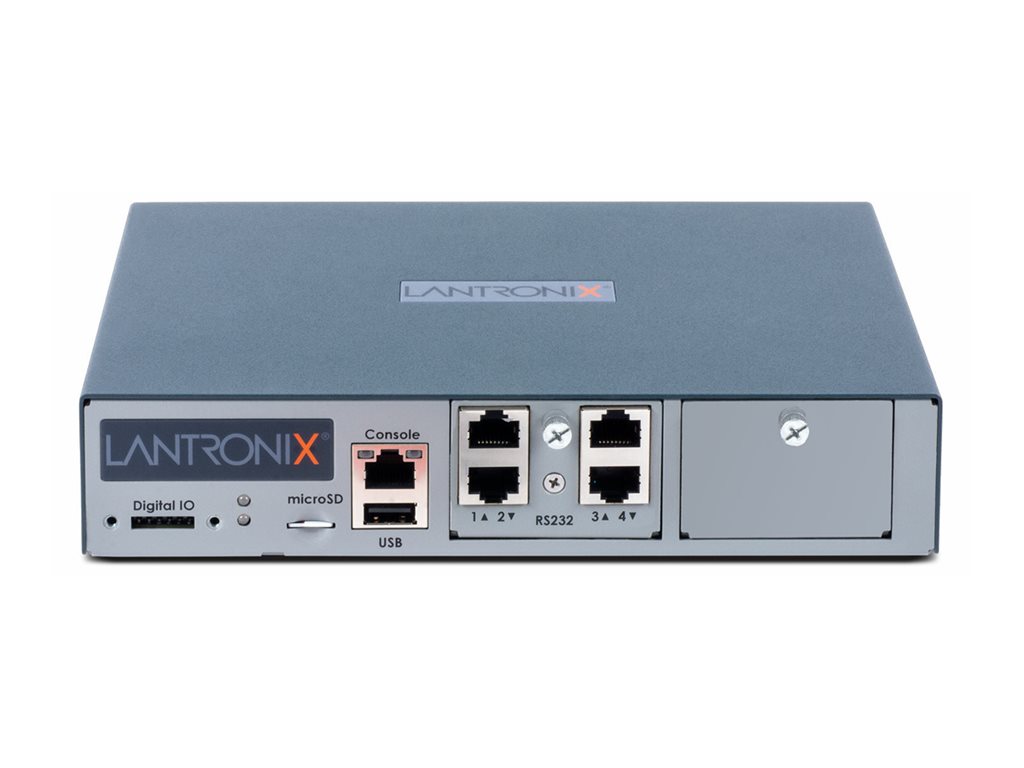

| Interfaces | 4 x RS-232 - RJ-45 ¦ 2 x Ethernet 1000 ¦ 1 x management (USB) - Type A ¦ 1 x management (RS-232) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | UL, CB, IC, FCC, TLS v1.2, TLS v1.0, TLS v1.1 |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232 |
| Network / Transport Protocol | TCP/IP, UDP/IP |
| Routing Protocol | RIP, RIP-2 |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, SSH, CLI, SFTP, DHCP |
| Features | Firewall protection, VPN support, BOOTP support, LDAP support, Syslog support, packet filtering, IPv6 support, Trivial File Transfer Protocol (TFTP) support, RADIUS support, e-mail notification, SNMP support, Network Timing Protocol (NTP), Lights Out Management (LOM), Cisco IOS IP Service-Level Agreements (IPSLA), Point-to-Point Protocol (PPP) |
| Authentication Method | RADIUS, PAP, CHAP |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 30 - 90% (non-condensing) |
| Communications | |
| Cellular Protocol | LTE |
| Supported Flash Memory Cards | microSD, microSDHC |
| Processor / Memory / Storage | |
| RAM | 1 GB |
| Flash Memory | 1 GB |
