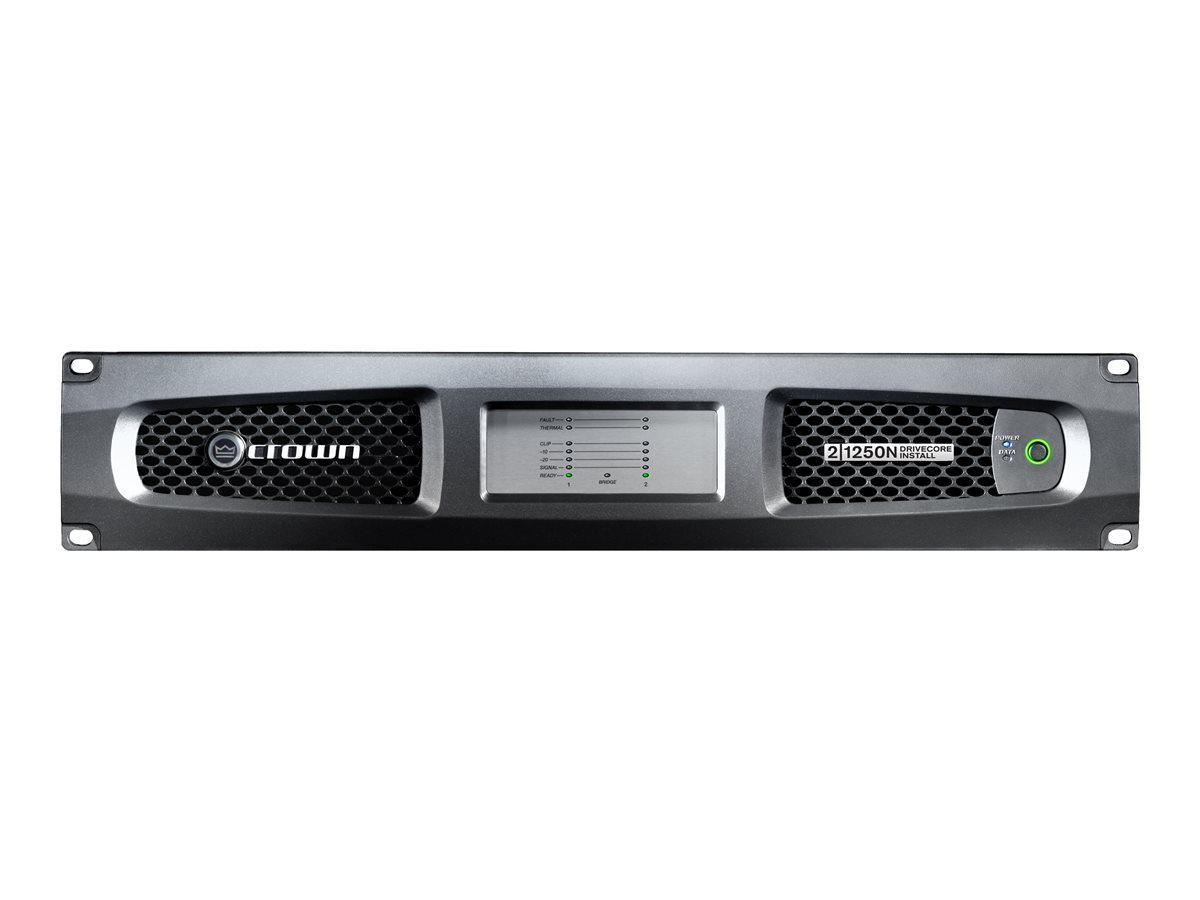

Power amplifier - 2 x 1250 Watt
The DriveCore install series amplifiers is a complete line of high-performance installation amplifiers based on the proprietary DriveCore technology. DCi series amplifiers provide system integrators with the advanced features and flexibility required for challenging 21st century installed sound applications. Versatile, compact and highly energy-efficient, DCi series amplifiers continue the unbroken Crown tradition of leadership in professional and commercial power amplifier technology.
With digital audio transport via Harman's proprietary BLU-Link plus balanced analog inputs, DCi gives you a tremendous audio advantage. The priority input router allows you to specify a primary input, and if audio is lost, the amp automatically switches to the other input.
Better monitoring, control and audio manipulation with the HiQnet protocol that's over standard TCP/IP. Remotely see how all networked DCi amplifiers are performing and control them as needed.
GPIO ports can be configured in many different ways, such as volume controls, recall presets, or to report errors to a master computer.
| Main Specifications | |
|---|---|
| Product Description | Crown DCi 2|1250N - power amplifier |
| Product Type | Power amplifier |
| Audio Specifications | Amplifier - 20 - 20000 Hz - 104 dB 0.35% |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 19 in x 14 in x 3.5 in |
| Weight | 23.5 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Power amplifier |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Power | |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Connections | |
| Connectors | 2 x balanced audio input (terminal block) - rear ¦ 2 x speakers output (screw-type) - rear ¦ Network (RJ-45) - rear ¦ GPIO - rear ¦ BLU Link input (RJ-45) - rear ¦ BLU Link output (RJ-45) - rear |
| Dimensions & Weight | |
| Width | 19 in |
| Depth | 14 in |
| Height | 3.5 in |
| Weight | 23.5 lbs |
| Audio System | |
| Functions | Amplifier |
| Audio Specifications | Amplifier - Response Bandwidth - 20 - 20000 Hz - SNR - 104 dB - THD - 0.35% |
| Output Channel Qty | 2 channels |
| Output Power (per channel) | 1250 Watt |
| Amplifier Output Details | 1250 Watt - 2 Ohm - 2 channels (main) ¦ 1250 Watt - 4 Ohm - 2 channels (main) ¦ 1250 Watt - 8 Ohm - 2 channels (main) ¦ 625 Watt - 16 Ohm - 2 channels (main) ¦ 1250 Watt - 2 channels (70V) ¦ 1250 Watt - 2 channels (100V) ¦ 2500 Watt - 4 Ohm - 1 channels (bridged) ¦ 2500 Watt - 8 Ohm - 1 channels (bridged) ¦ 2500 Watt - 16 Ohm - 1 channels (bridged) ¦ 2500 Watt - 1 channels (140V bridged) ¦ 2500 Watt - 1 channels (200V bridged) |
| Features | Thermal protection, overload protection, cooling fan, short circuit protection, DC protection, over voltage protection, clip LED, bridged output capability, rack mountable, HiQnet compatible, 70V/100V or 2/4/8/16 Ohm operation, low voltage protection |
