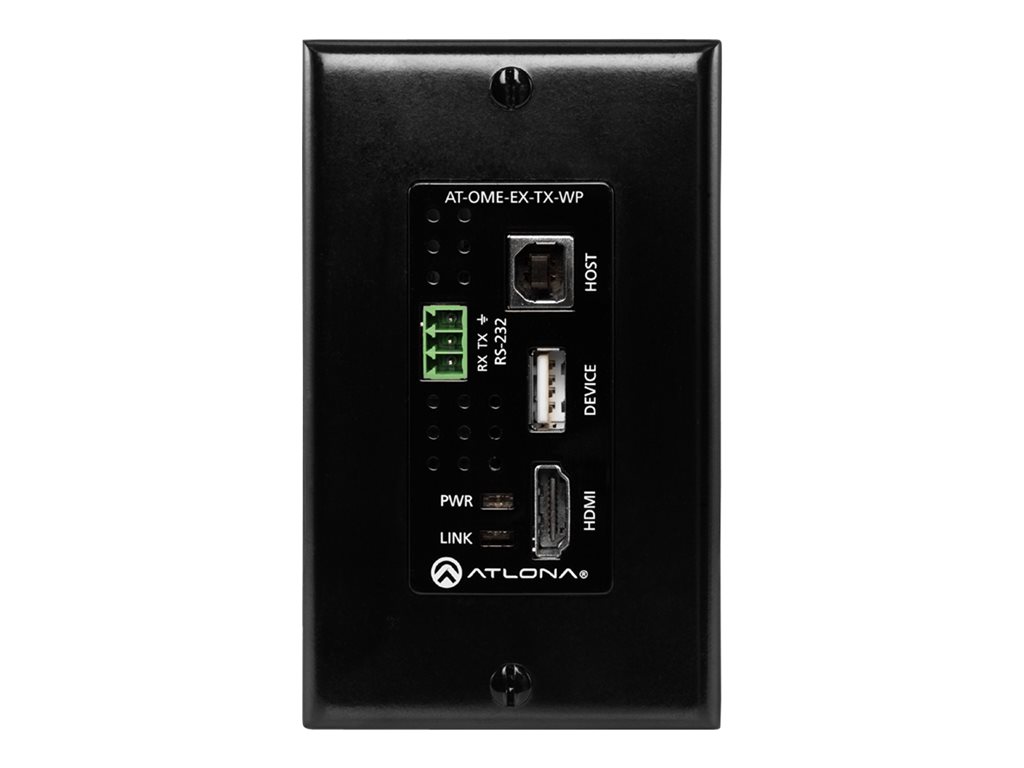

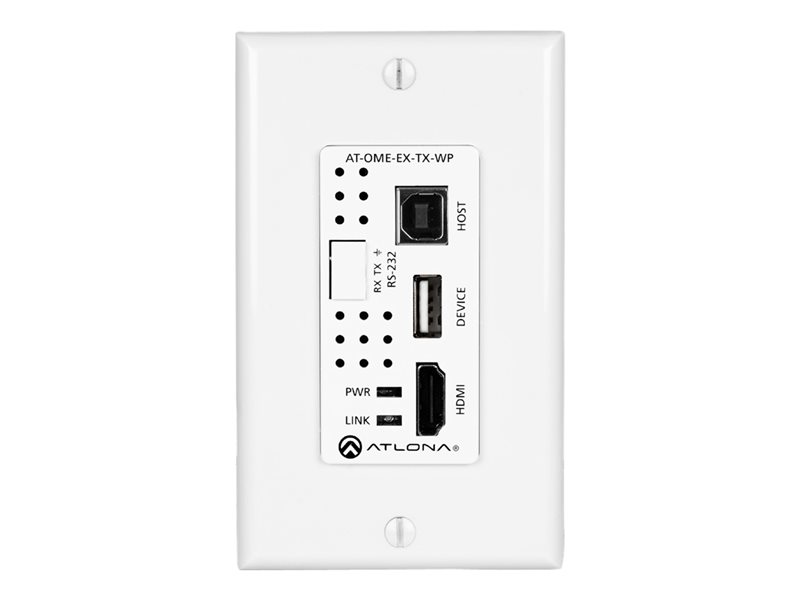

Video/audio/USB/serial extender - HDBaseT - up to 328 ft
| Main Specifications | |
|---|---|
| Product Description | Atlona Omega Series AT-OME-EX-TX-WP - video/audio/USB/serial extender - HDBaseT |
| Device Type | Video/audio/USB/serial extender |
| Form Factor | Wall mountable |
| Localization | United States |
| Data Link Protocol | HDBaseT |
| Max Transfer Distance | 328 ft |
| Power Over Ethernet (PoE) | PoE |
| Dimensions (WxDxH) | 1.8 in x 2.6 in x 4.1 in |
| Weight | 6.35 oz |
| Manufacturer Warranty | 10-year warranty |
| General | |
| Device Type | Video/audio/USB/serial extender |
| Form Factor | Wall mountable |
| Localization | United States |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI ¦ 1 x RS-232 - 3 pin terminal block ¦ 1 x USB 2.0 - Type A ¦ 1 x USB 2.0 - Type B ¦ 1 x HDBaseT - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Miscellaneous | |
| Included Accessories | 2 faceplates (black, white), 2 wall plates (black, white), 2 covers (black, white) |
| Compliant Standards | FCC, RoHS, CEC, HDCP 2.2 |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDBaseT |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Max Transfer Distance | 328 ft |
| Status Indicators | Power, link/activity |
| Features | Firmware upgradable, HDCP compliant, 4K resolution support, CEC passthrough, 12-bit Deep Color support, LPCM 7.1 support, Dolby TrueHD support, Dolby Digital Plus support, DTS-HD Master Audio support, DTS support, LPCM 5.1 support, Dolby Atmos support, DTS:X support, Dolby Digital support, 10-bit Deep Color support, 8-bit Deep Color support |
| Compliant Standards | IEEE 802.3af, HDCP 2.2 |
| Power | |
| Power Over Ethernet (PoE) | PoE |
| Power Consumption Operational | 11.18 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 1.8 in |
| Depth | 2.6 in |
| Height | 4.1 in |
| Weight | 6.35 oz |
