6x2 matrix switcher / scaler / audio embedder/disembedder / HDBaseT converter
| Main Specifications | |
|---|---|

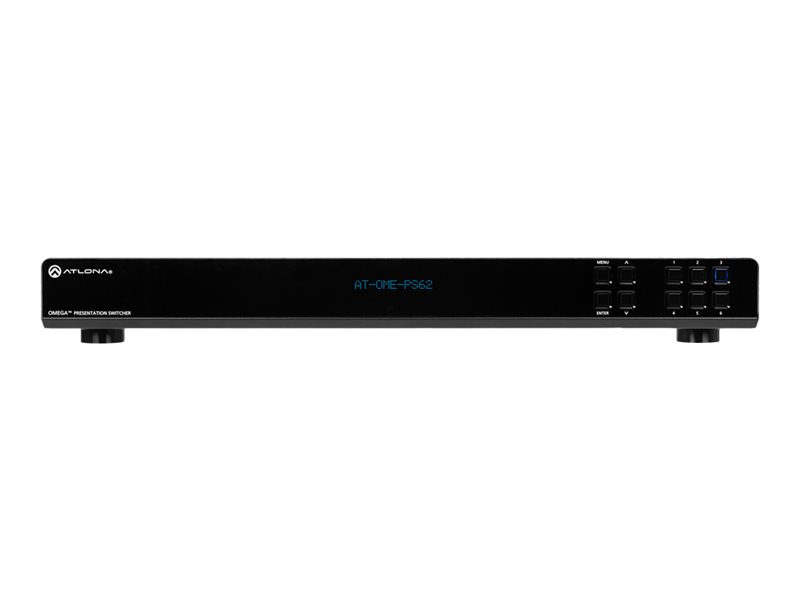

| Product Description | Atlona Omega AT-OME-PS62 6x2 matrix switcher / scaler / audio embedder/disembedder / HDBaseT converter |
| Type | 6x2 matrix switcher / scaler / audio embedder/disembedder / HDBaseT converter |
| Dimensions (WxDxH) | 17.2 in - 10 in - 1.7 in |
| Weight | 7.76 lbs |
| General | |
| Type | 6x2 matrix switcher / scaler / audio embedder/disembedder / HDBaseT converter |
| Width | 17.2 in |
| Depth | 10 in |
| Height | 1.7 in |
| Weight | 7.76 lbs |
| Power | |
| Voltage Required | AC 120/230 V |
| Frequency | 50/60 Hz |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 20 - 60% (non-condensing) |
| Terminals | |
| Terminals | (2) x HDBaseT input - RJ-45 ¦ (3) x HDMI input - 19 pin HDMI Type A ¦ (2) x balanced audio input - terminal block ¦ (1) x USB-C - USB-C ¦ (2) x USB 2.0 - 4 pin USB type A ¦ (2) x audio line-in - terminal block - stereo ¦ (2) x audio line-out - terminal block - stereo ¦ (2) x USB 3.0 - 9 pin USB Type B ¦ (1) x HDBaseT output - RJ-45 ¦ (1) x HDMI output - 19 pin HDMI Type A ¦ (1) x serial - terminal block ¦ (1) x network - RJ-45 |
| Studio & Production Equipment | |
| Features | HDCP 2.2 compliant, HDR (High Dynamic Range) support, 4K60 signal support |
