Document camera - color - 1.3 MP - 1680 x 1050 - vari-focal - LAN 10/100 - USB 2.0 - H.264 - DC 24 V - with Quick-Connect USB
| Main Specifications | |
|---|---|

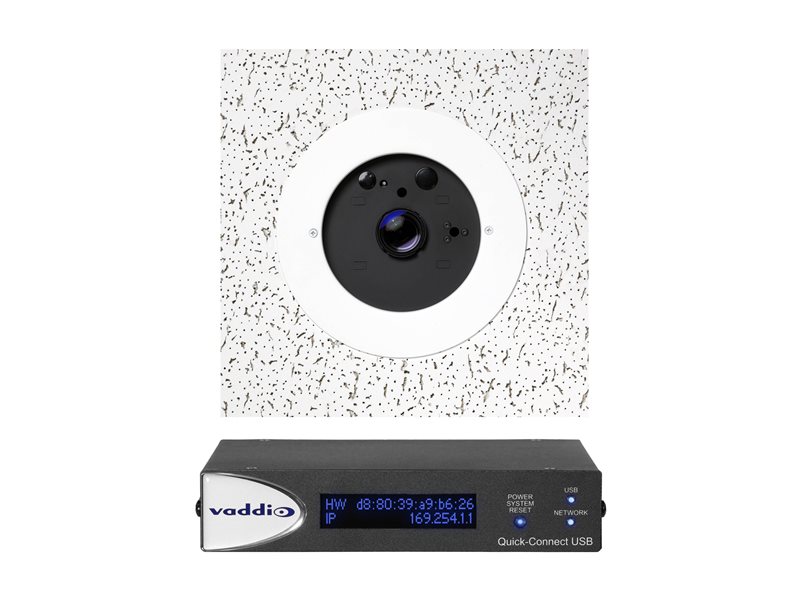

| Product Description | Vaddio CeilingVIEW HD-18 DocCAM - document camera - with Quick-Connect USB |
| Device Type | Document camera - fixed |

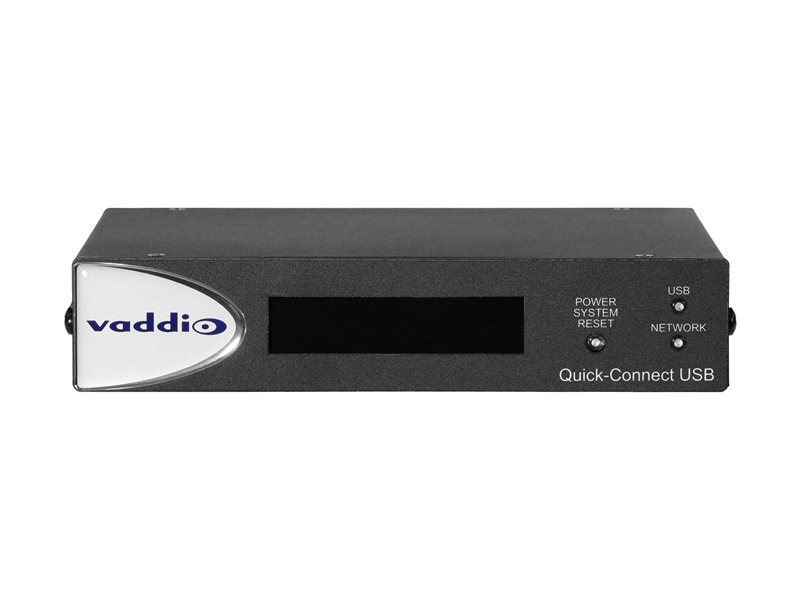

| Bundled with | Quick-Connect USB |
| Camera Mount Type | Flush mount |
| Dimensions (WxDxH) | 8 in x 8 in x 4.7 in |
| Weight | 5.05 lbs |
| Color | White |
| Connectivity Technology | Wired |
| Camera | Color |
| Optical Zoom | 18 x |
| Max Resolution | 1680 x 1050 |
| Frame Rate (max) | 60 frames per second |
| Video Modes | 1080p, 1080i, 720p, 480i, 576i, 1080/60p |
| Optical Sensor Type | CCD - 1/3" - 1.3 MP |
| Minimum Illumination | 1.8 lux F1.6 - 50 IRE |
| Focal Length Control | Vari-focal |
| Focal Length | 4.7 mm - 84.6 mm |
| Focus Adjustment | (min distance 39.4 in) |
| Interfaces | USB 2.0 Ethernet 10Base-T/100Base-TX |
| Control Interface | RS-232 |
| Cables Included | 1 - RS-232 adapter |
| Voltage | DC 24 V |
| Features | Built-in web server, color control, USB Video Device Class (UVC) mode |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Document camera |
| Audio Formats | RTSP, HLS |
| Camera Mount Type | Flush mount |
| Connectivity Technology | Wired |
| Width | 8 in |
| Depth | 8 in |
| Height | 4.7 in |
| Weight | 5.05 lbs |
| Localization | United States |
| Bundled with | Quick-Connect USB |
| Expansion / Connectivity | |

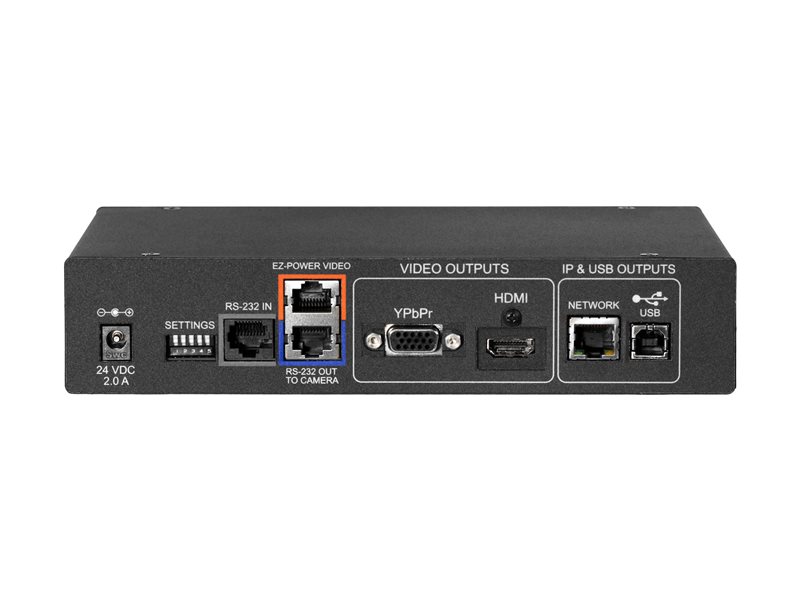

| Ports | HDMI - HDMI Type A ¦ LAN - RJ-45 ¦ USB 2.0 - 4 pin USB Type B ¦ Serial RS-232 input ¦ Serial RS-232 ¦ EZPower HD video - RJ-45 ¦ HD analog - 15 pin HD D-Sub (HD-15) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Remote control, tile support brace, trim ring |
| Cables Included | 1 x RS-232 adapter |
| Color | White |
| Power | |
| Power Requirements | DC 24 V |
| Power Device | Power adapter |
| Camera | |
| Type | Color - fixed |
| Digital Video Format | H.264 |
| Max Digital Video Resolution | 1680 x 1050 |
| Video Modes | 1080p, 1080i, 720p, 480i, 576i, 1080/60p |
| Minimum Illumination | 1.8 lux F1.6 - 50 IRE |
| Digital Video Capture Resolution | 1024 x 768, 1280 x 720, 1680 x 1050 |
| Frame Rate (max) | 60 frames per second |
| Features | Built-in web server, color control, USB Video Device Class (UVC) mode |
| Lens Construction | |
| Type | Vari-focal |
| Optical Zoom | 18 x |
| Focal Length | 4.7 mm - 84.6 mm |
| Min Focus Distance | 39.4 in |
| Horizontal Field of View (degree) | 3.2 - 55.2 |
| Image Sensor | |
| Type | 1.3 MP CCD 1/3" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | Telnet |
| Computer Interface | USB 2.0 |
| Control Interface | RS-232 |
