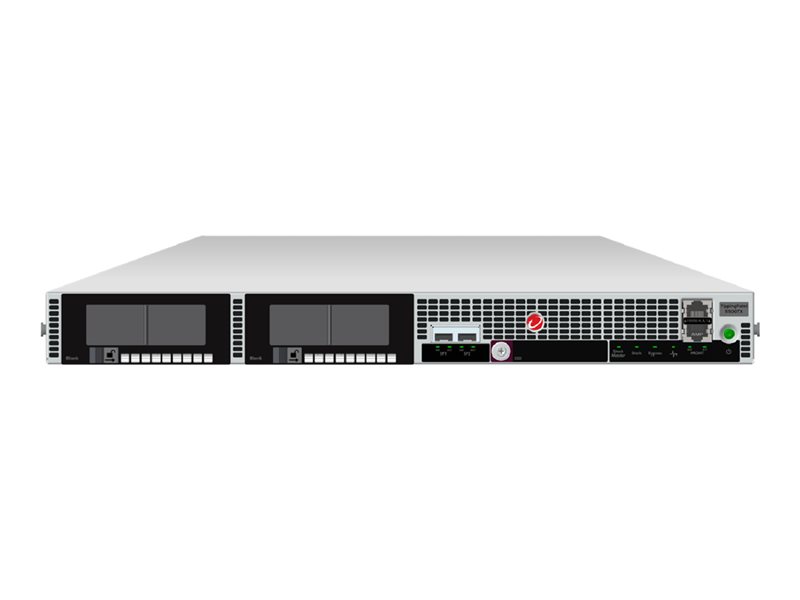

Security appliance - 1U - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Trend Micro TippingPoint Threat Protection System 5500TX - security appliance |
| Device Type | Security appliance |
| Form Factor | Rack-mountable - 1U |
| Processor | D-1559 - 1.5 GHz |
| RAM | 64 GB |
| Flash Memory | 32 GB |
| Hard Drive | 32 GB x 1 |
| Performance | IPS throughput: 5 Gbps ¦ SSL inspection throughput: 3.5 Gbps ¦ Latency: 40 µs |
| Capacity | SSL connections per second: 2700 ¦ Concurrent sessions: 30000000 ¦ New connections per second: 420000 |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 18.5 in x 17.9 in x 1.7 in |
| Weight | 17.5 lbs |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Security appliance |
| Height (Rack Units) | 1U |
| Width | 18.5 in |
| Depth | 17.9 in |
| Height | 1.7 in |
| Weight | 17.5 lbs |
| Expansion / Connectivity | |
| Expansion Slots | 2 (total) / 2 (free) x expansion slot |
| Interfaces | 1 x 1000Base-TX (management) - RJ-45 ¦ 1 x console - RJ-45 ¦ 2 x 100Gb Ethernet - SFP+ |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| MTBF | 75,660 hours |
| Compliant Standards | VCCI, CISPR 24, EN 61000-3-2, EN55022, EN 61000-3-3, EN55024, CISPR 22, FCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KC, EMC Class A, CSA 22.2 No. 60950-1 |
| Networking | |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Performance | IPS throughput: 5 Gbps ¦ SSL inspection throughput: 3.5 Gbps ¦ Latency: 40 µs |
| Capacity | SSL connections per second: 2700 ¦ Concurrent sessions: 30000000 ¦ New connections per second: 420000 |
| Features | High Availability, Intrusion Prevention System (IPS), Security Management System (SMS) |
| Encryption Algorithm | SSL |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 220 Watt |
| Power Provided | 250 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Communications | |
| Supported Flash Memory Cards | CFast Card |
| Processor / Memory / Storage | |
| Processors Installed | D-1559 1.5 GHz |
| RAM | 64 GB DDR4 SDRAM |
| Flash Memory | 32 GB |
| Hard Drive | SSD 32 GB x 1 - 1.8" |
