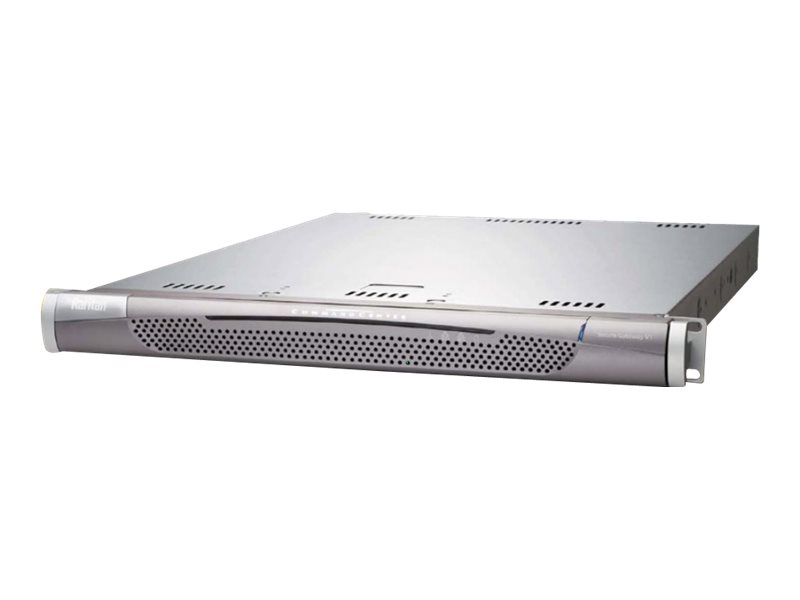

Network management device - 1GbE - 1U - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Raritan CommandCenter Secure Gateway V1 - network management device |
| Device Type | Network management device |
| Form Factor | Rack-mountable - 1U |
| Processor | 1 x Intel Core i3 i3-4330 - 3.5 GHz |
| RAM | 4 GB (installed) / 16 GB (max) |
| Hard Drive | 1 TB x 2 - SATA 6Gb/s |
| Optical Storage | DVD-ROM |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Dimensions (WxDxH) | 15.7 in x 24.2 in x 1.7 in |
| Weight | 23.81 lbs |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Network management device |
| Height (Rack Units) | 1U |
| Width | 15.7 in |
| Depth | 24.2 in |
| Height | 1.7 in |
| Weight | 23.81 lbs |
| Expansion / Connectivity | |
| Interfaces | 1 x keyboard / video / mouse (KVM) - DB-15 ¦ 4 x USB 3.0 ¦ 2 x 1000Base-T - RJ-45 ¦ 1 x serial - DB-9 ¦ 6 x USB 2.0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 2 years |
| Miscellaneous | |
| MTBF | 36,385 hours |
| Networking | |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, UDP/IP, SMTP, HTTP, HTTPs, IPv4, IPv6 |
| Remote Management Protocol | SNMP 3, HTTP, HTTPS, SMTP, LDAP |
| Features | LDAP support, manageable, IPv6 support, SNTP support, Access Control List (ACL) support, IPv4 support |
| Encryption Algorithm | TLS, 256-bit AES |
| Authentication Method | SecurID, RADIUS, TACACS+, LDAP, XAUTH (RADIUS, LDAP, Active Directory) |
| Power | |
| Power Device | Internal power supply |
| Power Provided | 350 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Processor / Memory / Storage | |
| Processors Installed | 1 x Intel Core i3 4330 3.5 GHz |
| Max Supported Qty | 1 |
| RAM | 4 GB (16 GB max) DDR3L SDRAM |
| Hard Drive | HDD 1 TB x 2 - SATA 6Gb/s - 3.5" |
| Optical Storage | DVD-ROM |
