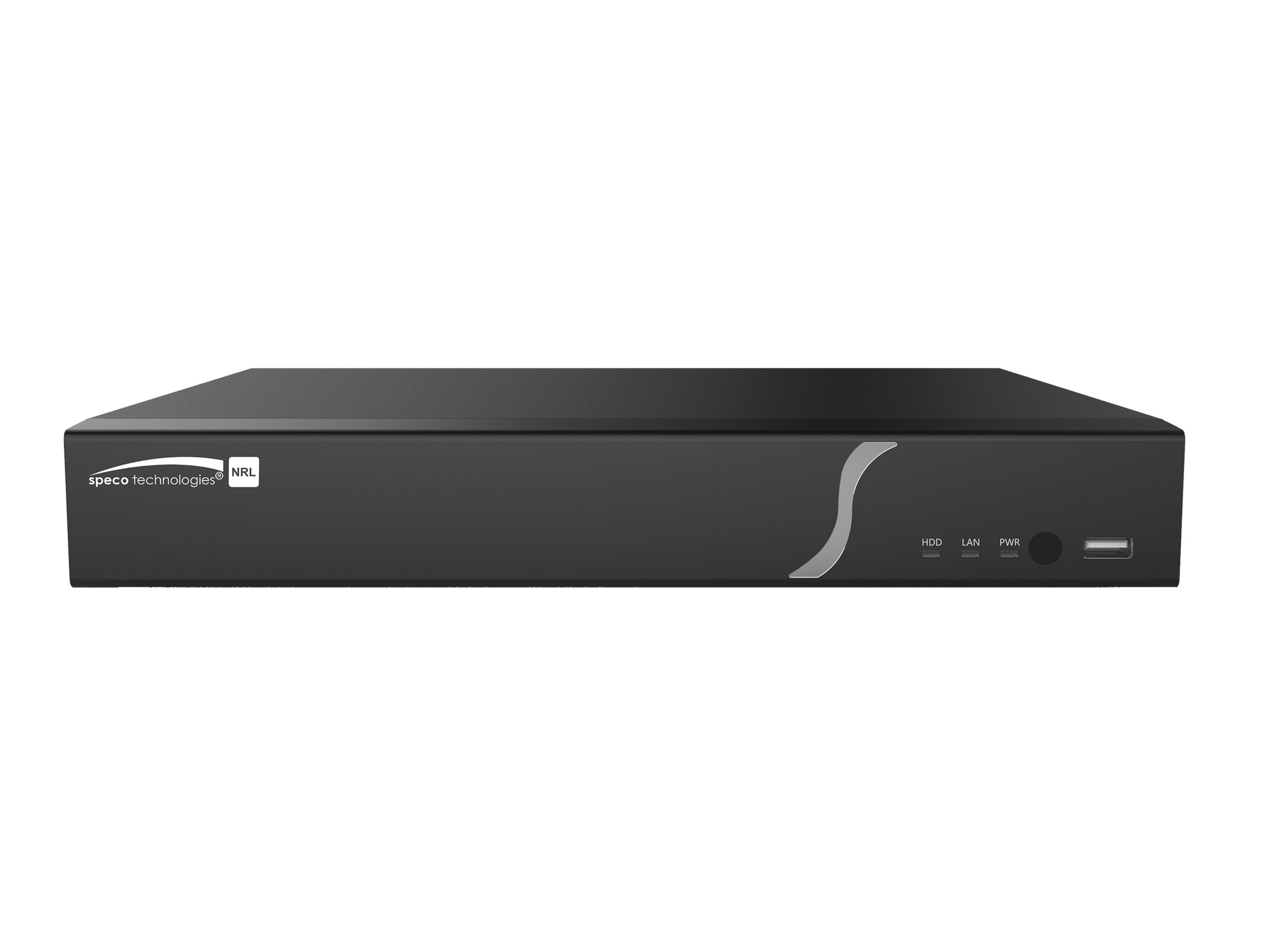

NVR - 8 channels - 1 x 4 TB - networked - PoE
| Main Specifications | |
|---|---|
| Product Description | Speco NRL Series N8NRL - standalone NVR - 8 channels |
| Device Type | NVR - 8 channels - networked |
| IP Cameras Supported | 8 |
| Frame Rate | 30 fps |
| Compression Format | H.265, H.264, G.711A, G.711u |
| Image Resolution | 4K |
| Hard Drive | 1 x 4 TB |
| Hard Drive(s) Supported | Quantity: 1 - total capacity: 16 TB |
| Power Over Ethernet (PoE) | PoE |
| Dimensions (WxDxH) | 11.8 in x 9.8 in x 2 in |
| Manufacturer Warranty | 5 years |
| General | |
| Device Type | NVR |
| Video Channels | 8 |
| IP Cameras Supported | 8 |
| Image Resolution | 4K |
| Compression Format | H.265, H.264, G.711A, G.711u |
| Package Content | Mouse, remote control |
| Warranty | 5 years |
| Networking | |
| Power Over Ethernet (PoE) | PoE |
| Network Interfaces | Ethernet 10Base-T/100Base-T |
| Supported Protocols | DDNS, P2P, TCP/IP, PPPoE, DHCP, DNS, UPnP, NTP, SMTP |
| Features | 4K resolution support, EZ Wizards, EZ Search 2.0, EZ Mobile, Disk S.M.A.R.T. Scan |
| Power | |
| Power Consumption | 15 Watt |
| Power Consumption Details | Without HDD |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| System Requirements | |
| Operating Systems | Android |
| Hard Drive | |
| Quantity Installed | 1 |
| Quantity Supported | 1 |
| Capacity | 4 TB |
| Interface | Serial ATA |
| Supported Max Total Capacity | 16 TB |
| Connections | |
| Video Input Ports | RJ-45 x 8, RJ-45 x 8 (POE) |
| Video Output Ports | HDMI x 1, VGA x 1 |
| Audio Input Ports | RCA x 1 |
| Other Ports | USB x 2 |
| Dimensions & Weight | |
| Width | 11.8 in |
| Depth | 9.8 in |
| Height | 2 in |
| Security DVR | |
| Frame Rate (Record) | 30 fps |
| Video Recording Resolution | 4K, 8 Megapixels, 5 Megapixels, 4 Megapixels, 3 Megapixels, 1920x1080, 1280×720, CIF, D1 |
| Display Modes | Live view |
| Playback Search | Motion detection, date/time, event, museum, bookmark, snapshot, log |
| Record Events | Continuous, motion detection, analytics, sensor |
| Networked | Yes |
| Features | 2-way audio communication, instant playback, app remote monitoring, 960H Technology |
