Wireless access point - Wi-Fi 6 - 2.4 GHz, 5 GHz
| Main Specifications | |
|---|---|

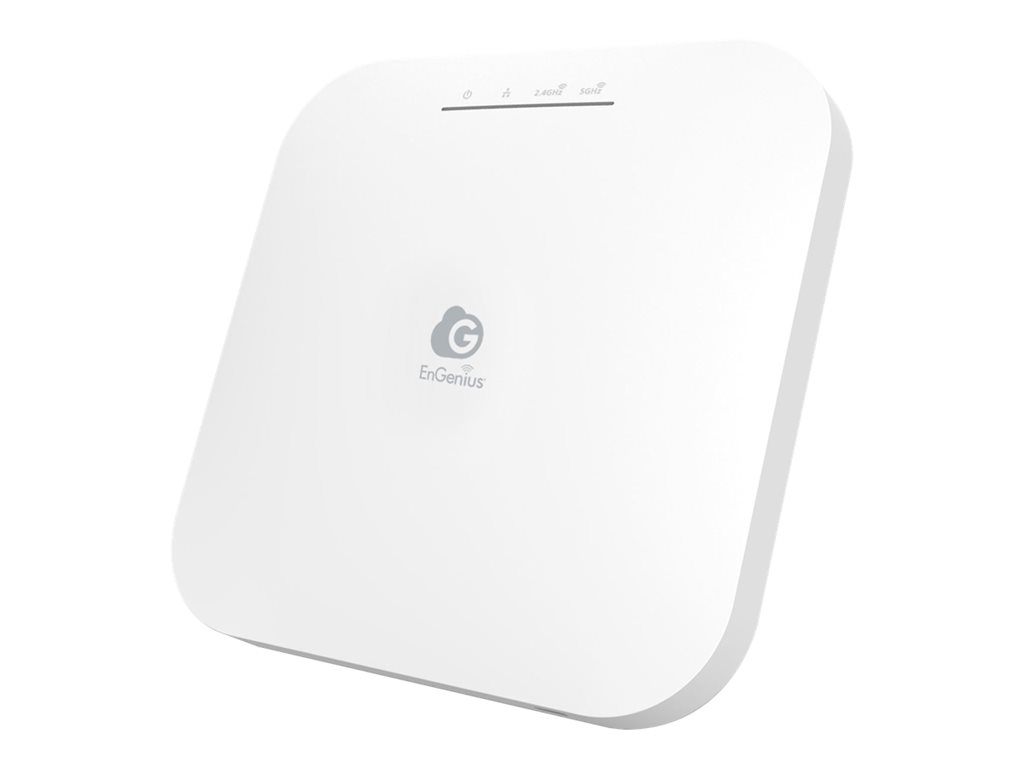

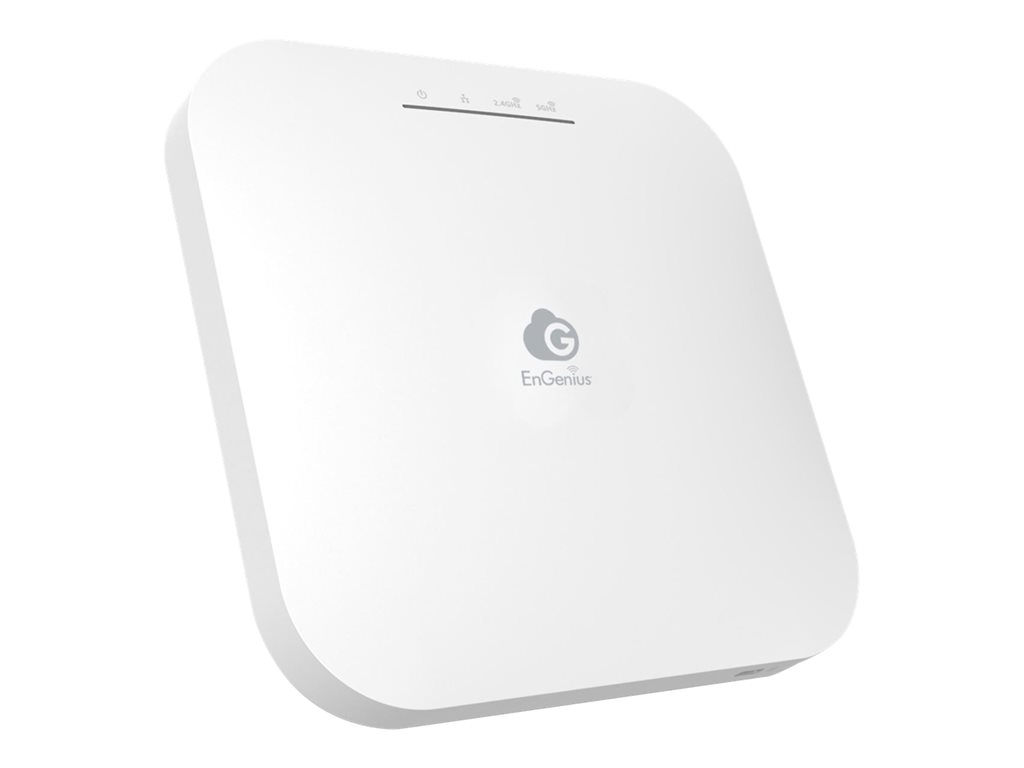

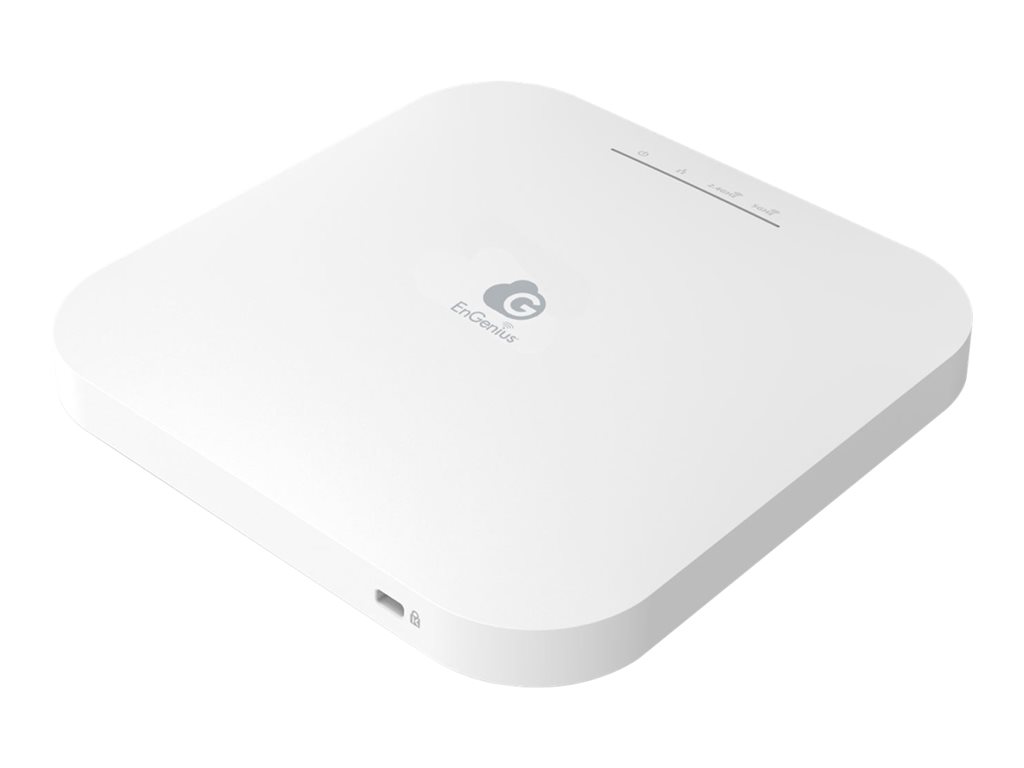

| Product Description | EnGenius Cloud Managed ECW230 - wireless access point - Wi-Fi 6 |
| Device Type | Wireless access point |
| Form Factor | External - indoor |
| Processor | 1 x ARM Cortex-A53 2 GHz |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum throughput (2.4 GHz): 1148 Mbps ¦ Maximum throughput (5 GHz): 2400 Mbps |
| Included Accessories | Wall/ceiling mounting kit |
| Power Over Ethernet (PoE) Supported | PoE |
| Dimensions (WxDxH) | 8.3 in x 8.3 in x 1.3 in |
| Weight | 21.06 oz |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Wireless access point |
| Ruggedized Design | Indoor |
| Width | 8.3 in |
| Depth | 8.3 in |
| Height | 1.3 in |
| Weight | 21.06 oz |
| Expansion / Connectivity | |
| Interfaces | 1 x 2500Base-T (PoE) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Wall/ceiling mounting kit |
| Compliant Standards | IC, FCC |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Line Coding Format | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, 1024 QAM, OFDMA |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax |
| Spread Spectrum Method | OFDMA |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum throughput (2.4 GHz): 1148 Mbps ¦ Maximum throughput (5 GHz): 2400 Mbps |
| Status Indicators | Power, LAN, 5 GHz, 2.4 GHz |
| Features | VLAN support, wall mountable, Spanning Tree Protocol (STP) support, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), SSH support, reset button, Management Information Base (MIB), ceiling mountable, MU-MIMO technology, packet aggregation A-MPDU, Management Information Base (MIB) II, Private MIB, packet aggregation A-SPDU, VLAN Tagging |
| Encryption Algorithm | AES, WPA2-PSK, WPA2-Enterprise, WPA3 |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.3af, IEEE 802.11e |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Consumption Operational | 19.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 90% |
| Processor / Memory / Storage | |
| Processors Installed | 1 x ARM Cortex-A53 2 GHz |
| Max Supported Qty | 1 |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9.6 in |
| Shipping Depth | 9.6 in |
| Shipping Height | 3.3 in |
| Shipping Weight | 31.43 oz |
| Antenna | |
| Antenna | Internal |
| Antenna Qty | 8 |
| Directivity | Omni-directional |
| Gain Level | 3 dBi |
