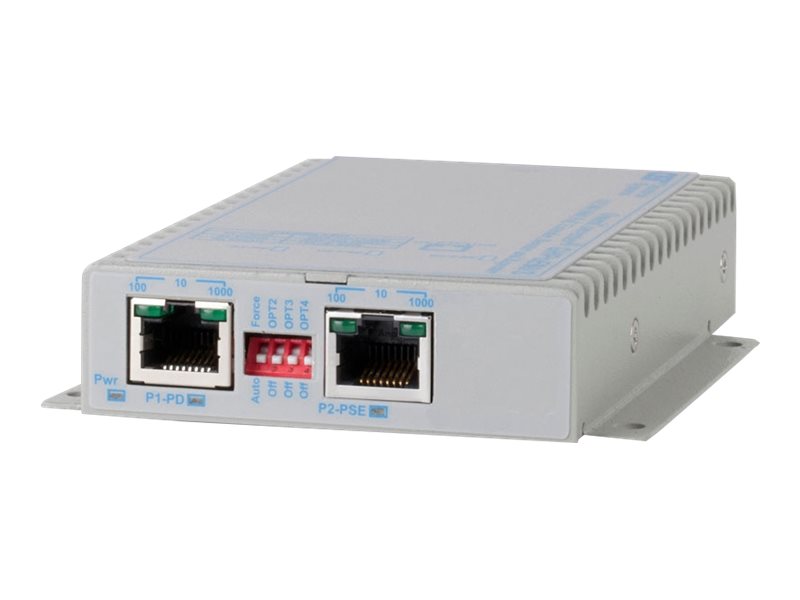

Network extender - 1GbE - 10Base-T, 100Base-TX, 1000Base-T - up to 656 ft
| Main Specifications | |
|---|---|
| Product Description | Omnitron OmniExtender GXPoE+/S - network extender - 10Mb LAN, 100Mb LAN, 1GbE |
| Device Type | Network extender |
| Form Factor | Wall / rack / DIN rail mountable |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T |
| Data Transfer Rate | 1 Gbps |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Max Transfer Distance | 656 ft |
| Power Over Ethernet (PoE) | PoE+ |
| Dimensions (WxDxH) | 4.8 in x 3.8 in x 1 in |
| Weight | 13.12 oz |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Network extender |
| Form Factor | Wall / rack / DIN rail mountable |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX/1000Base-T (input) - RJ-45 female ¦ 1 x Ethernet 10Base-T/100Base-TX/1000Base-T (output) - RJ-45 female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| MTBF | 375,000 hours |
| Compliant Standards | Plug and Play, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, EN55024, RoHS, UL 60950-1, WEEE, REACH, IP20, IEC 60950-1:2005 + A1:2009, FCC CFR47 Part 15 B Class A, CISPR 32, EN 55032, IEC 61000-6-2, IEC 61000-6-4, EN 60950-1:2006+A11:2009+A1:2010+A12:2011 |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 1 Gbps |
| Max Transfer Distance | 656 ft |
| Status Indicators | Power |
| Features | Auto-negotiation, Power Sourcing Equipment (PSE), Jumbo Frames support (up to 10240 bytes) |
| Compliant Standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at |
| Power | |
| Power Over Ethernet (PoE) | PoE+ |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 4.8 in |
| Depth | 3.8 in |
| Height | 1 in |
| Weight | 13.12 oz |
