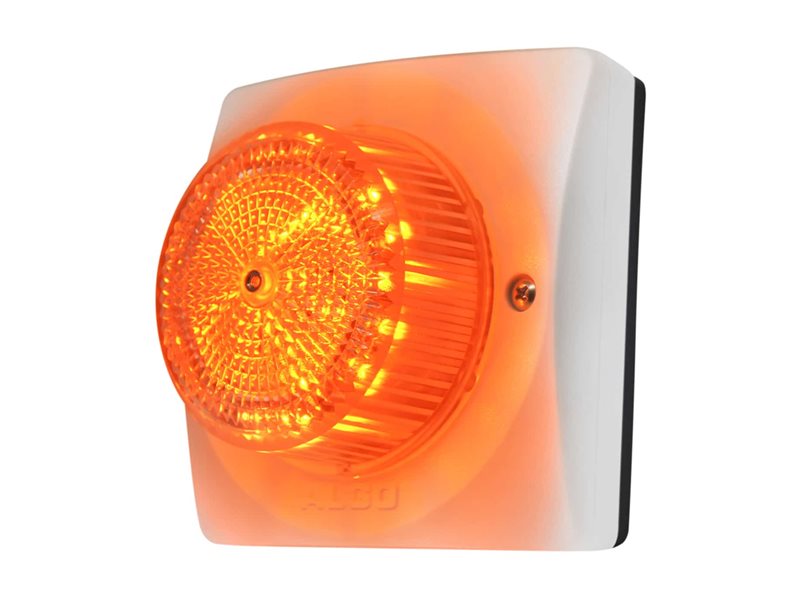

Visual alerting device - wired - 10/100 Ethernet
| Main Specifications | |
|---|---|
| Product Description | Algo 8138 - visual alerting device |
| Product Type | Visual alerting device |
| Environment | Indoor |
| Power Source | PoE |
| Connectivity | Wired - 10/100 Ethernet |
| Dimensions (WxDxH) | 4.8 in x 3 in x 4.8 in |
| General | |
| Product Type | Visual alerting device |
| Environment | Indoor |
| Power Source | PoE |
| Connectivity Technology | Wired - Ethernet, Fast Ethernet |
| Interfaces Details | Relay input ¦ Relay output |

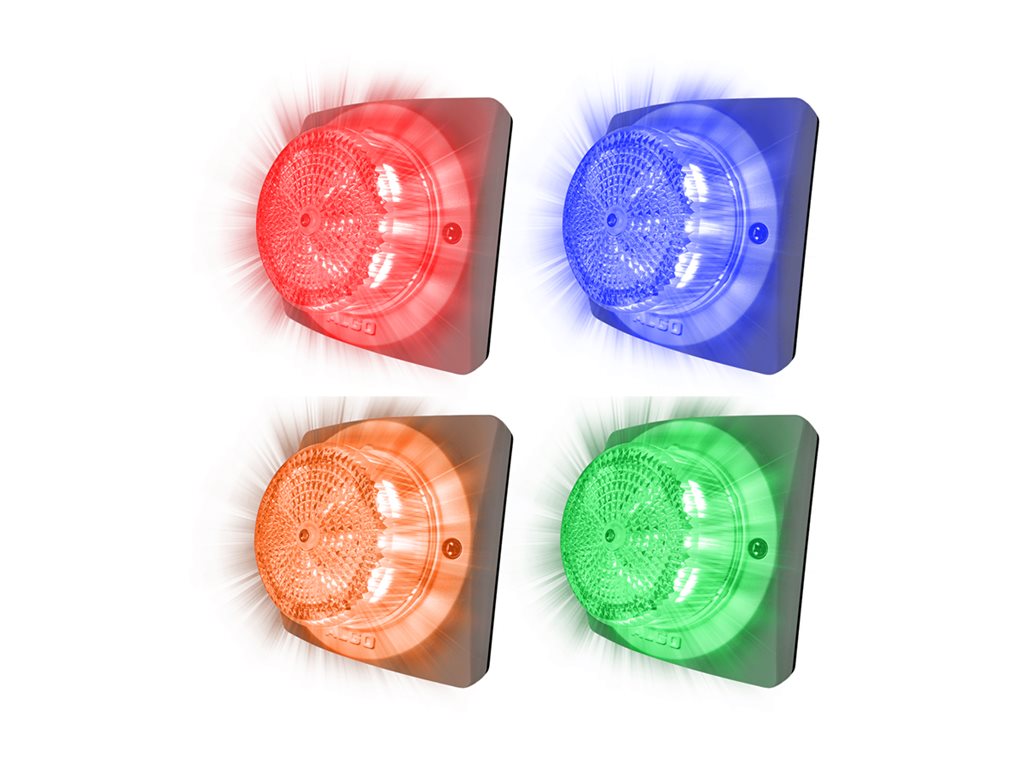

| Features | Amber LED indicator, blue LED indicator, green LED indicator, red LED indicator, SIP compliant, PoE, SRTP support, RTP support, TCP support, UDP support, DHCP support, HTTP support, HTTPS support, Trivial File Transfer Protocol (TFTP) support, Cisco Discovery Protocol (CDP), DiffServ Code Point (DSCP) support, IPv4 support, IPv6 support, LLDP support, NAT support, Quality of Service (QoS), SNMP support, VLAN support, Network Timing Protocol (NTP), NTP support |
| Miscellaneous | |
| Voltage Required | DC 48 V |
| Power Consumption Operational | 12.95 Watt |
| Compliant Standards | CSA, UL, FCC Class A certified, TLS, SRTP, IEEE 802.3af, RoHS, CISPR 24, CISPR 32 Class A, EN 62368-1 |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 122 °F |
| Dimensions & Weight | |
| Width | 4.8 in |
| Depth | 3 in |
| Height | 4.8 in |
| Weight | 17.64 oz |
| Dimensions & Weight Details | X 21.2 oz |
