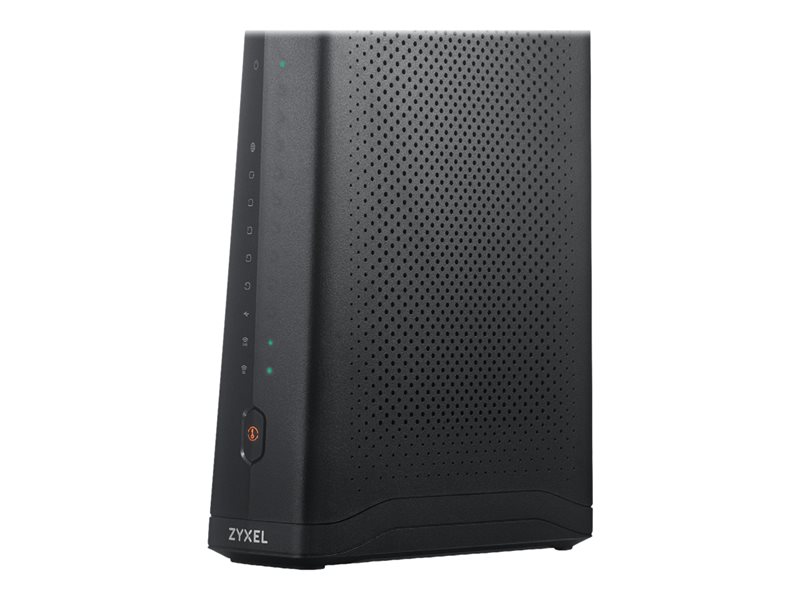

Wireless router 4-port switch - 1GbE - Wi-Fi 6 - Dual Band - wall-mountable
| Main Specifications | |
|---|---|
| Product Description | Zyxel EMG6726-B10A - wireless router - Wi-Fi 6 - desktop, wall-mountable |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop, wall-mountable |
| WAN Ports Qty | 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band | 2.4 GHz / 5 GHz |
| Data Transfer Rate | 1733 Mbps |
| Performance | Maximum data rate (5 GHz): 1733 Mbps ¦ Maximum data rate (2.4 GHz): 450 Mbps |
| Network / Transport Protocol | PPTP, L2TP, IPSec, PPPoE, PPPoA, DHCP, IPv4, IPv6 |
| Remote Management Protocol | SNMP 1, SNMP 2c, HTTP, HTTPS, TR-069, TR-098, TR-181 |
| Features | NAT support, VLAN support, auto-uplink (auto MDI/MDI-X), SPI, DoS attack prevention, content filtering, MAC address filtering, IPv6 support, VPN passthrough, parental control, firmware upgradable, WMM support, ACS, WPS, Multiple SSID support, port forwarding, reset button, IPv4 support, IGMP proxy, MIB II, Wireless Scheduler, ICMP blocking, remote power management, DynDNS, WPS button |
| Compliant Standards | IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, UPnP, IEEE 802.11ac |
| Power | DC 12 V 2 A |
| Dimensions (WxDxH) | 6.9 in x 2.4 in x 9.6 in |
| Weight | 19.26 oz |
| General | |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop, wall-mountable |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band | 2.4 GHz / 5 GHz |
| Data Transfer Rate | 1733 Mbps |
| Performance | Maximum data rate (5 GHz): 1733 Mbps ¦ Maximum data rate (2.4 GHz): 450 Mbps |
| Network / Transport Protocol | PPTP, L2TP, IPSec, PPPoE, PPPoA, DHCP, IPv4, IPv6 |
| Remote Management Protocol | SNMP 1, SNMP 2c, HTTP, HTTPS, TR-069, TR-098, TR-181 |
| Encryption Algorithm | WPA2, WPA2-PSK |
| Wi-Fi Rating | AC2300 |
| Features | NAT support, VLAN support, auto-uplink (auto MDI/MDI-X), SPI, DoS attack prevention, content filtering, MAC address filtering, IPv6 support, VPN passthrough, parental control, firmware upgradable, WMM support, ACS, WPS, Multiple SSID support, port forwarding, reset button, IPv4 support, IGMP proxy, MIB II, Wireless Scheduler, ICMP blocking, remote power management, DynDNS, WPS button |
| Compliant Standards | IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, UPnP, IEEE 802.11ac, IC, FCC |
| Processor | 1 GHz |
| Status Indicators | Power, WLAN, WAN, LAN, USB, Internet |
| Expansion / Connectivity | |
| Interfaces | WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 2.0: 1 x |
| Miscellaneous | |
| Cables Included | 1 x network cable |
| Power | |
| Power Device | External power adapter |
| Voltage Required | DC 12 V |
| Electric Current Required | 2 A |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 6.9 in |
| Depth | 2.4 in |
| Height | 9.6 in |
| Weight | 19.26 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 13.6 in |
| Shipping Depth | 9.1 in |
| Shipping Height | 2.6 in |
| Shipping Weight | 35.09 oz |
