Speaker - for PA system - 400 Watt - 2-way - gray, pantone 420C
| Main Specifications | |
|---|---|

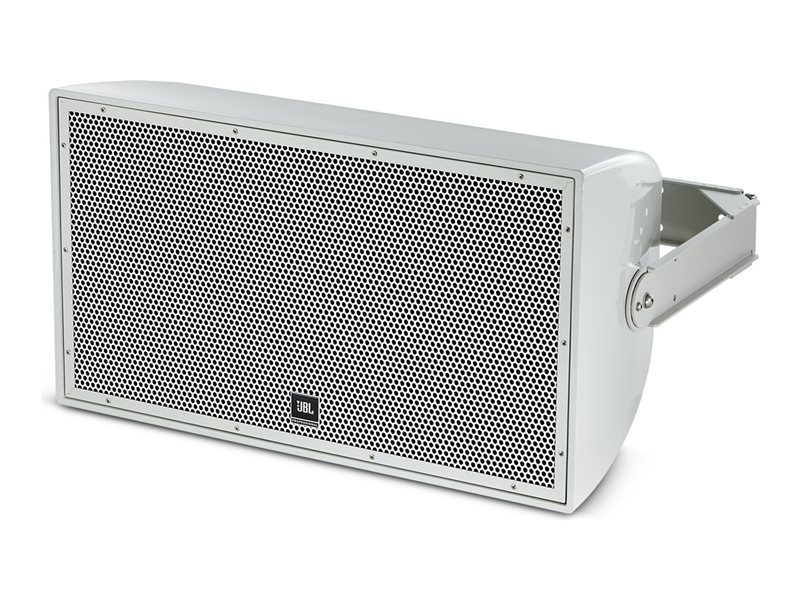

| Product Description | JBL Professional All-Weather AW266-LS - speaker - for PA system |
| Product Type | Speaker - for PA system |
| Protection | Water-resistant, corrosion-resistant |
| Speaker Type | 2-way - passive |
| Continuous Power | 400 watt |
| Peak Power | 1600 watt |
| Nominal Impedance | 8 ohm |
| Integrated Transformer | 70V/100V or 8 Ohm operation |
| Color | Gray, pantone 420C |
| Dimensions (WxDxH) | 28.8 in x 17.8 in x 16.1 in |
| Weight | 55.56 lbs |
| General | |
| Product Type | Speaker - for PA system |
| Features | Progressive Transition (PT) waveguide technology |
| Protection | Water-resistant, corrosion-resistant |
| Enclosure Color | Gray, pantone 420C |
| Enclosure Material | Hand-laminated fiberglass |
| Miscellaneous | |
| Included Accessories | U-type mounting bracket |
| Compliant Standards | IEC 529/IP55, EN 54-24 |
| Connections | |
| Connector Type | Speakers input (covered barrier strip terminal) |
| Dimensions & Weight | |
| Width | 28.8 in |
| Depth | 17.8 in |
| Height | 16.1 in |
| Weight | 55.56 lbs |
| Speaker System | |
| Speaker Type | 2-way - passive |
| Continuous Power | 400 watt |
| Peak Power | 1600 watt |
| Frequency Response (+/-3dB) | 102 - 18000 Hz |
| Frequency Response (-10dB) | 54 - 20000 Hz |
| Nominal Impedance | 8 ohm |
| Max Output Level (Max SPL) | 125 dB |
| Sensitivity | 98 dB |
| Crossover Frequency | 1100Hz |
| Integrated Transformer | 70V/100V or 8 Ohm operation |
| Coverage | 60° x 60° |
| Recommended Placing | Indoor / outdoor |
| Detachable Grilles | Yes |
| Speaker System Details | |
| Driver Details | Speaker: woofer driver - 12" - Differential Drive - dual voice coil ¦ Speaker: tweeter driver - 1.5" - compression driver |
